Customized 2500KG Vertical Box-column Drilling Machine with Customized Features
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $2,950.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Weight (KG): | 2500 | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works , Energy & Mining |
| Showroom Location: | None | Product Name: | Drilling Machine |
| Name: | Box-column Drilling Machine | Application: | Riveters |
| Model: | SD-63B | Type: | Vertical Drilling |
| Machine Type: | Vertical Drill Machine | COLOR: | Customized |
| Key Word: | Drilling | Function: | High Efficiency |
| Processing: | Stable Processing | Port: | China Port |
Product Description
Product Description

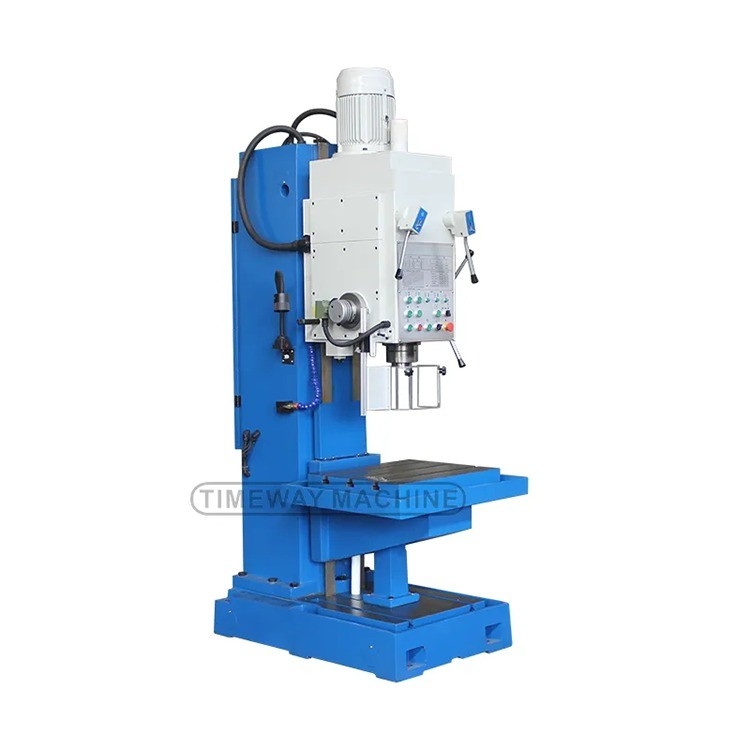

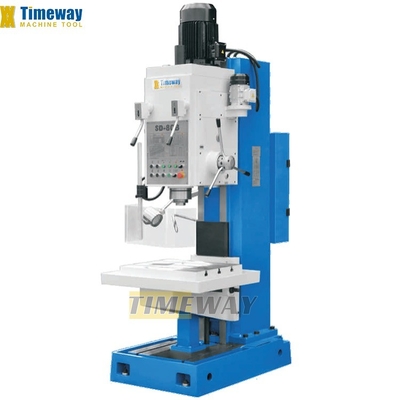

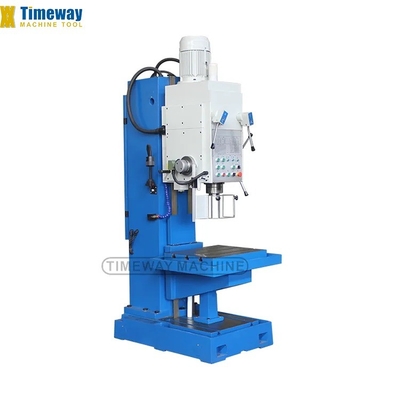

Box-type Vertical Drilling Machine
It's used for counter-sinking, sport-facing drilling, tapping, boring, reaming.
It's used for counter-sinking, sport-facing drilling, tapping, boring, reaming.
Specification
Model | Unit | SD-63B | SD-80B |
Max.Drilling capacity | mm | 63 | 80 |
Max.feed resistance | N | 30000 | 3000 |
Max.permissible spindle torque | N.m | 800 | 800 |
Power of main motor | kw | 5.5 | 5.5 |
Throat distance | mm | 375 | 375 |
Spindle taper | MT5 | MT6 | |
Spindle travel | mm | 250 | 250 |
Spindle box travel(manual) | mm | 250 | 250 |
Spindle speeds range(steps) | r/min | 40-570(9) | 40-570(9) |
Feed rates(steps) | mm/rev | 0.1-0.78(6) | 0.1-0.78(6) |
Max.Travel of table | mm | 300 | 300 |
Working surface of worktable | mm | 650x550 | 650x550 |
Max. distance from spindle nose to worktable surface | mm | 800(125) | 800(1250) |
Overall dimensions(LxWxH) | mm | 965x1452x2787 | 965x1452x2787 |
Gross weight | kg | 2500/3350 | 2500/33501 |
Packing size(LxWxH) | mm | 2850x1110x1940 | 2850x1110x1940 |
