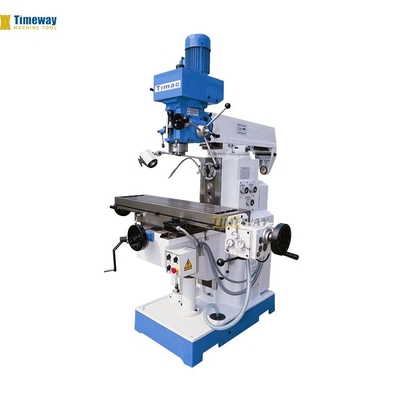

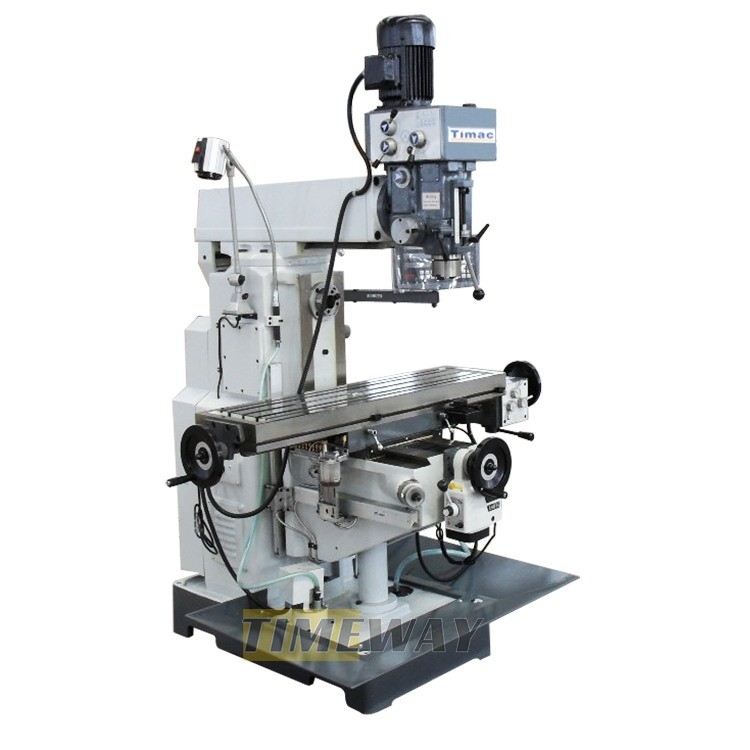

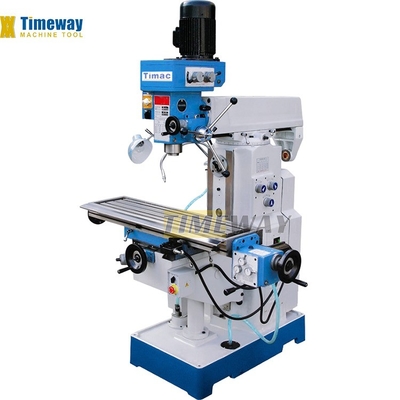

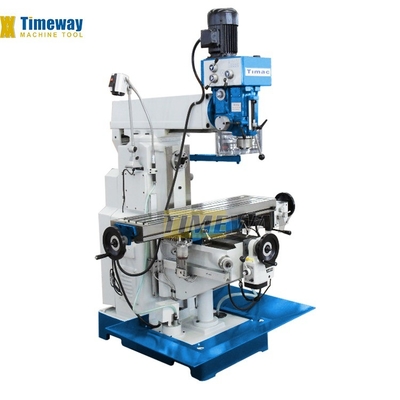

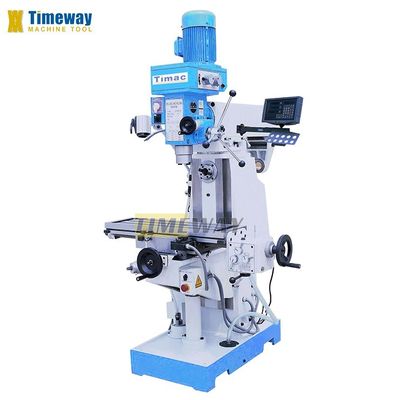

2023 Variable Speed Milling Drilling Machine for Construction Works Competitive Offer
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Certification: | ISO9001 |
| Model Number: | MD500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,482.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 600 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 260 | Table Travel (Z) (mm): | 300 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 90 - 2000 R.p.m |
| Type: | VERTICAL | Weight (KG): | 1300 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Universal Milling Machine | Machine Type: | Vertical Drilling Milling |
| Product Name: | Drilling Milling Machines | Keyword: | Milling Machine Manual |
| Function: | Drilling Milling | Application: | Metal Working Milling Machine |
| Precision: | High Precision | Color: | Opitional |
| Processing: | Mechanical Processing | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining |
| Showroom Location: | None | Core Components: | Motor, Engine |
| Port: | China Port | ||
Product Description
Product Description
Features:
Milling Drilling Machine
1. Headstock swivels ±90°;
2. Hardened and ground table surface with high stability;
3. Automatic feeds on X, Y axes, motorized lifting and lowering of table on Z axis;
Milling Drilling Machine
1. Headstock swivels ±90°;
2. Hardened and ground table surface with high stability;
3. Automatic feeds on X, Y axes, motorized lifting and lowering of table on Z axis;
Specification
Specification | Unit | MD400 | MD500 | MD600 |
Table size | mm | 280x1120(1200) | 280x1120(1200) | 320x1250 |
Longitudinal travel (X) | mm | 600 | 600 | 600 |
Cross travel (Y) | mm | 260 | 260 | 300 |
Vertical travel (Z) | mm | 300 | 300 | 280 |
T-slot No. and size and distance | mm | 3/14/70 | 3/14/70 | 3/14/70 |
Loading capacity | kg | 200 | 200 | 200 |
Max. drilling capacity | mm | 50 | 50 | 50 |
Max. tapping capacity | mm | M16 | M16 | M16 |
Distance from vertical spindle to table | mm | 90-410 | 110-410 | 90-370 |
Distance from vertical spindle to column | mm | 200-700 | 200-700 | 200-700 |
Vertical spindle taper | – | MT4 | ISO40 | ISO40 |
Verical spindle quill travel | mm | 120 | 120 | 120 |
Vertical spindle quill automatic feed | mm/r | – | 0.08/0.15/0.25 | – |
Vertical spindle speed | rpm | 115-1750 (8) | 90-2000 (8) | 115-1750 (8) |
Vertical spindle motor power | kw | 0.85/1.5 | 2.2 | 1.5 |
Distance from horizontal spindle center to table | mm | 0-300 | 0-300 | 0-280 |
Horizontal spindle taper | – | ISO40 | ISO40 | ISO40 |
Horizontal spindle speed | rpm | 40-1300 (12) | 40-1300 (12) | 40-1300 (12) |
Horizontal spindle motor power | kw | 2.2 | 2.2 | 2.2 |
X/Y-axis feed speed | mm/min | X: 24-720 | X: 36-1100 | X/Y: 22-555 |
Z-axis rapid feed speed | mm/min | – | – | 560 |
Mill head swivel angle | ° | ±45° | ±45° | ±45° |
Machine dimensions (LxWxH) | mm | 1660x1340x2130 | 1660x1340x2130 | 1600x1500x2270 |
Net weight/gross weight | kg | 1250/1350 | 1300/1380 | 1450/1550 |
