2023 Hot Matel Vertical Drilling Machine for Heavy Duty Applications
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,565.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Weight (KG): | 430 | Applicable Industries: | Manufacturing Plant, Metal Pipe Machining Enterprise |
| Showroom Location: | None | Product Name: | Drilling |
| Name: | Column Drilling Machine | Model: | D-35A |
| Type: | Vertical | Application: | Matal |
| Material: | Matel | COLOR: | Optional |
| Processing Types: | Light Duty | Processing: | Drilling |
| Key Words: | Drilling Machines | Port: | China Port |
Product Description
Product Description
Specification
Model | D-30A | D-32A | D-35A |
Max. Drilling dia.(steel) & taping diameter(mm) | Φ30/M20 | Φ32/M20 | Φ35/M22 |
Max. travel of spindle (mm) | 135 | 150 | 160 |
Throat depth (mm) | 260 | 300 | 320 |
Max. distance from spindle nose to surface of worktable (mm) | 670/685 | 800 | 585 |
Max. distance from spindle nose to surface of base worktable (mm) | 1150/1165 | 1225 | 1140 |
Max. travel of spindle box (mm) | 180 | 270 | |
Max. travel of worktable bracket/Manual(Mechanical) (mm) | 605/500 | 550 | 545 |
Swivel angle of worktalbe | ±45° | ±45° | |
Spindle taper bore (MT) | 3 | 4 | 4 |
Spindle speed steps | 12 | 12 | 12 |
Spindle speed range (r/min) | 125-3030 | 78-2500 | 125-3030 |
Spindle feed steps | 3 | 3 | |
Spindle feed range (mm/r) | 0.1-0.3 | 0.1-0.3 | |
Dimension of worktable(mm) | 420x350 | 190 | 500x420 |
Effective workig area of worktable | 335x340 | 365x415 | 400x360 |
Diameter of column (mm) | Φ110 | Φ120 | |
Power of motor (kw) | 0.85/1.1 | 1/1.3/1.7 | 1/1.2 |
Machine dimension (mm) | 700x465x2060 | 780x505x1910 | 835/510x1730 |
Packing dimension (mm) | 870x550x2220 | 880x620x1980 | 940x570x2120 |
Net weight/gross weight (kg) | 340/380 | 420/465 | 430/475 |

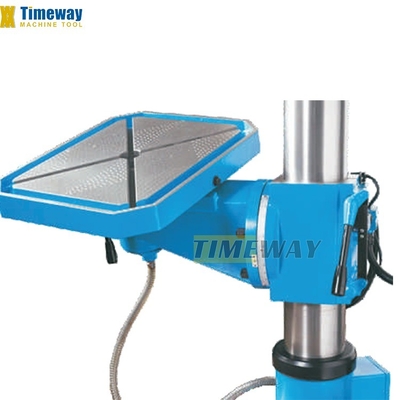

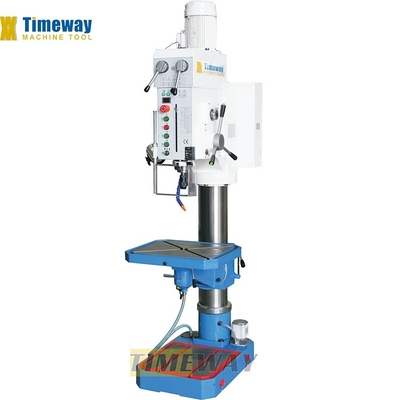

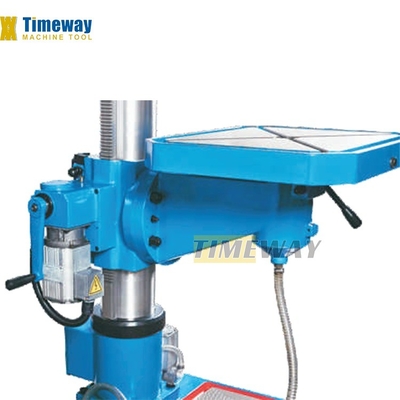

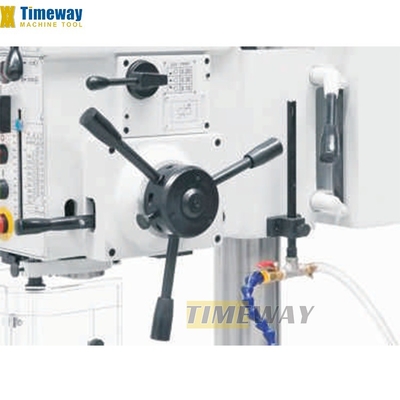

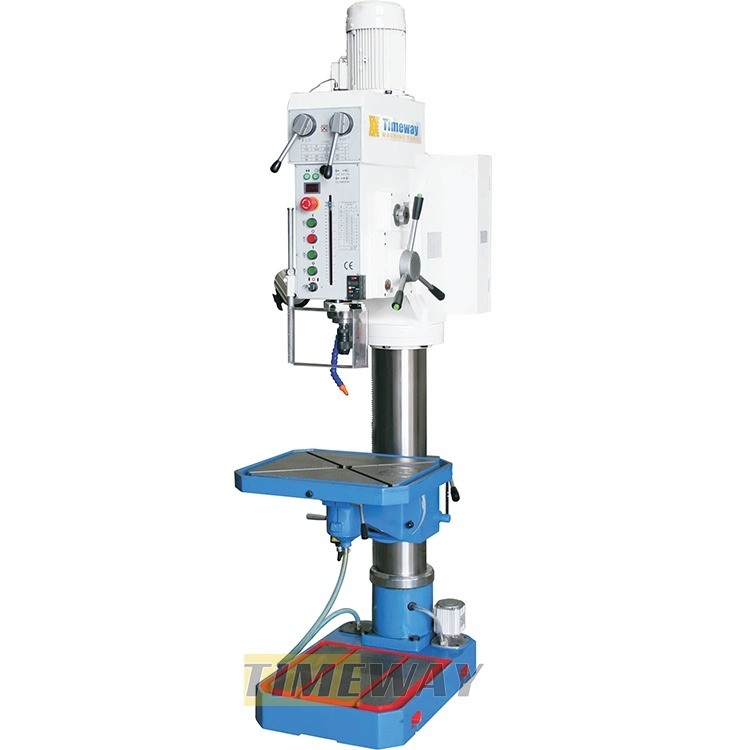

Detailed Images
