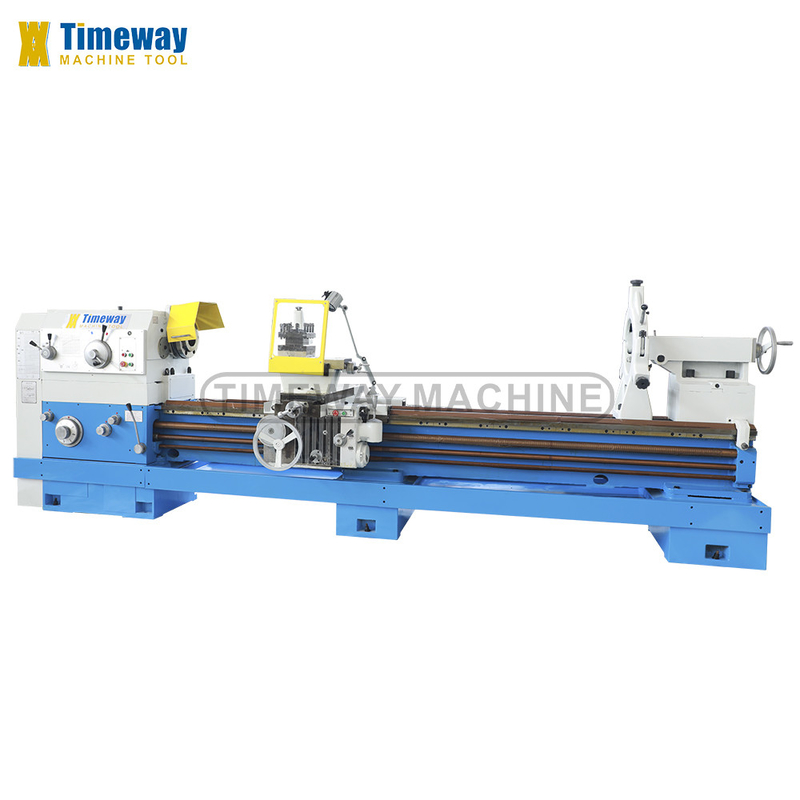

11kw Motor Power AL-940B Conventional Heavy Duty Lathe for Large and Complex Workpieces
Product Details:
| Place of Origin: | China |
| Certification: | CE |
| Model Number: | AL-630B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,666.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 10000, 750 | Range Of Spindle Speed(r.p.m): | 6 - 800 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 300 |
| Type: | Horizontal | Dimension(L*W*H): | 2858 1430 1690 |
| Weight (KG): | 3600 KG | Warranty: | 1 Year |
| Key Selling Points: | High Safety Level, High Rigidity | Marketing Type: | Hot Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Weight Of Workpiece(kg): | 2000 |
| Spindle Taper: | Metric 120 | Cutting Torque: | 66 N.m |
| Rapid Feed Speed(mm/min): | 6 - 4000 Mm/min | Feed Speed(mm/min): | 6 - 4000 Mm/min |
| Tool Post Stations: | 4 | After-sales Service Provided: | One Year |
| Precision: | Precision | CNC Or Not: | Nomal |
| Distance Between Centers: | 750/1000/1500/2000/3000/4000/5000/6000/8000/10000 /- | Max. Swing Over Bed: | 940mm |
| Motor Power: | 11kw | Swing Over Cross Slide: | 660mm |
| Loading Capacity: | 2000kg | Gap Length: | 300mm |
Product Description
Product Description
Specification
Specification | unit | AL-940B |
Max. swing over bed | mm | 940 |
Max. swing over cross slide | mm | 660 |
Distance between centers | mm | 750/1000/1500/2000/3000/4000/5000/6000/8000/10000 |
Max. turning length | mm | 600/850/1350/1850/2850/3850/4850/5850/7850/9850 |
Max. swing over gap (optional) | mm | 1140 |
Gap length (optional) | mm | 300 |
Bed width | mm | 550 |
Loading capacity | kg | 2000 |
Spindle nose | - | C11 |
Spindle bore | mm | 100 |
Spindle taper | - | Metric 120 |
Spindle speed range | rpm | 6-800 |
Spindle speed step | steps | 18 |
Longitudinal feed range | mm/r | 0.1-24.32 (64) |
Cross feed range | mm/r | 0.05-12.16 (64) |
Leadscrew pitch | mm | 12 |
Metric threads range (kinds) | mm | 1-240 (50) |
Inch threads range (kinds) | TPI | 14-1 (26) |
Module threads range (kinds) | mm | 0.5-120 (53) |
Diametrical threads range (kinds) | DP | 28-1 (24) |
Rapid feed speed | mm/min | 4000 |
Cross slide travel | mm | 570 |
Top slide travel | mm | 200 |
Tool section size | mm | 32x32 |
Tailstock quill diameter | mm | 100 |
Tailstock quill travel | mm | 250 |
Tailstock quill taper | - | MT5 |
Main motor power | kw | 11 |
Machine length | mm | 2958/3275/3725/4225/5225/6275/7355/8355/10275/12275 |
Machine width | mm | 1430 |
Machine height | mm | 1690 |
STANDARD ACCESSORIES:

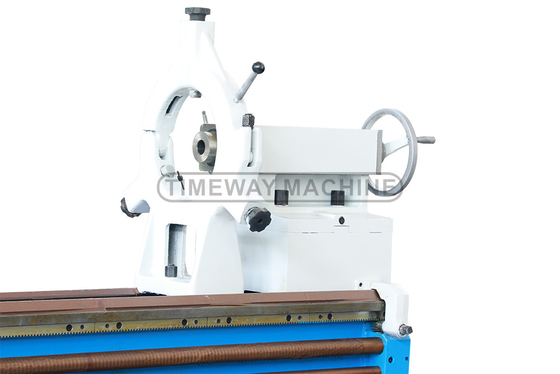

3-jaw chuck, Steady rest (over 2M length),
Follow rest ,

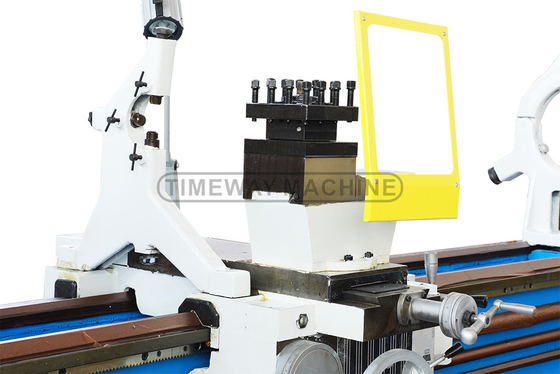

Manual moving tailstock, Dead center, 4-station tool post, Work lamp, Cooling system, Tools & tool-box,
Leveling wedge and bolts,
Operation manual (English).
OPTIONAL ACCESSORIES:
4-jaw independent chuck,
Face plate,
2 or 3-axis DRO,
Chuck guard,
Tool-post guard,
Rear splash guard,
Quick changing tool post,
Grinding attachment.
Grinding attachment.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
