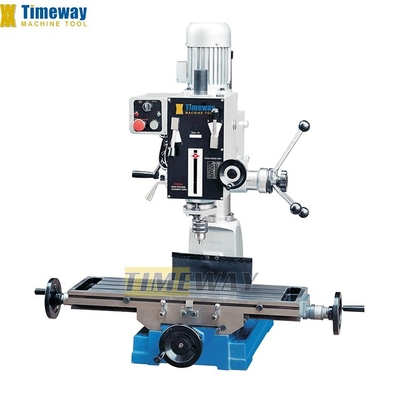

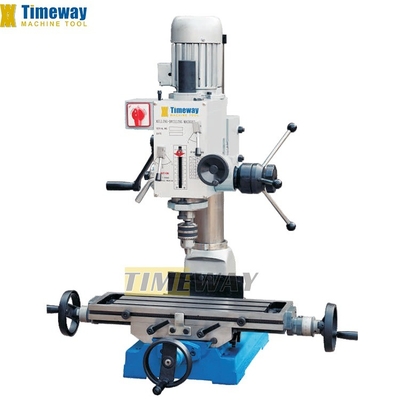

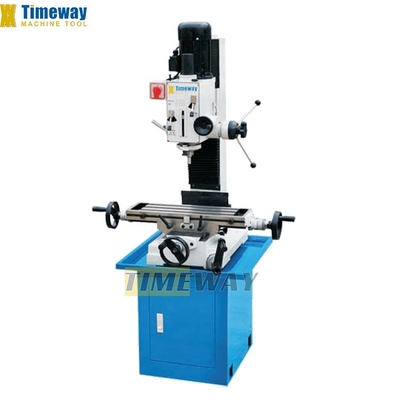

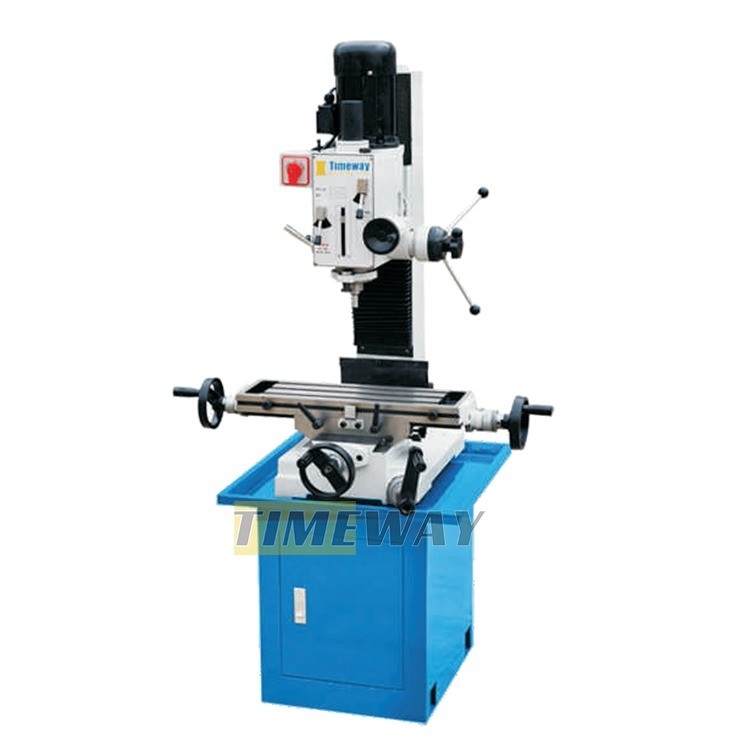

High Precision Vertical Drilling Milling Machine The Ultimate Solution for Efficiency
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,410.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Weight (KG): | 320 | Applicable Industries: | Manufacturing Plant, Metal Pipe Machining Enterprise |
| Showroom Location: | None | Product Name: | Drilling Milling Machine |
| Name: | Drilling Milling | Application: | Precision Casting Industry |
| Machine Type: | Vertical Machine | Function: | High Efficiency |
| Type: | Easy Operate | Processing: | Stable Processing |
| COLOR: | Customized OPT | Key Words: | Drilling |
| CNC Or Not: | Normal | Port: | China Port |
Product Description
Product Description
Specification
Model | ZY-32G | ZY-32FG |
Drilling capacity | 32mm | 32mm |
Face milling capacity | 63mm | 63mm |
End milling capacity | 20mm | 20mm |
Distance from spindle nose to table | 440mm | 450mm |
Min.distance from spindle axis to column | 272.5mm | 260mm |
Spindle travel | 130mm | 130mm |
Spindle taper | M.T.3 or R8 | M.T.3 or R8 |
Step of spindle speed | 6 | 6 |
Range of spindle speed 50Hz | 80-1250 r.p.m | 80-1250 r.p.m |
60Hz | 95-1500 r.p.m | 95-1500 r.p.m |
Swivel angle of headstock (horizontally / perpendicularly) | 360°/±90° | 90° |
Table size | 800×240mm | 800×240mm |
Forward and backward travel of table | 175mm | 175mm |
Left and right travel of table | 500mm | 500mm |
Motor power | 0.75KW(1HP) | 0.75KW(1HP) |
Net weight/gross weight | 315kg/365kg | 320kg/370kg |
Packing size | 770×880×1160mm | 770×880×1160mm |
Company Profile
Business Range: Industrial Equipment & Components, Manufacturing & Processing Machinery Main Products: Lathe , Milling Machine , Drilling Machine , Grinding Machine , CNC Machines , Shearing Machine , Press Brakes , Rolling Machine , Forklift Truck , Vehicle Machine Management System Certification: ISO 9001, ISO 14001
FAQ
1. who are we?
We are based in Henan, China, start from 2010,sell to South America(20.00%),Africa(15.00%),Eastern Europe(15.00%),South Asia(10.00%),North America(10.00%),Oceania(10.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lathe, CNC Lathe, CNC Milling Machine, Machining Center, Grinding Machine
4. why should you buy from us not from other suppliers?
Our factory have more than 50years experience of researching & producing lathe and heavy duty lathe, both conventional and CNC types, normal use and special use, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Henan, China, start from 2010,sell to South America(20.00%),Africa(15.00%),Eastern Europe(15.00%),South Asia(10.00%),North America(10.00%),Oceania(10.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lathe, CNC Lathe, CNC Milling Machine, Machining Center, Grinding Machine
4. why should you buy from us not from other suppliers?
Our factory have more than 50years experience of researching & producing lathe and heavy duty lathe, both conventional and CNC types, normal use and special use, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
