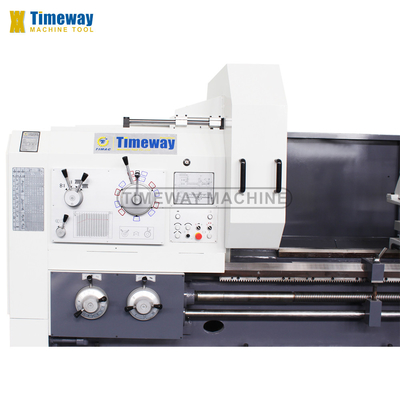

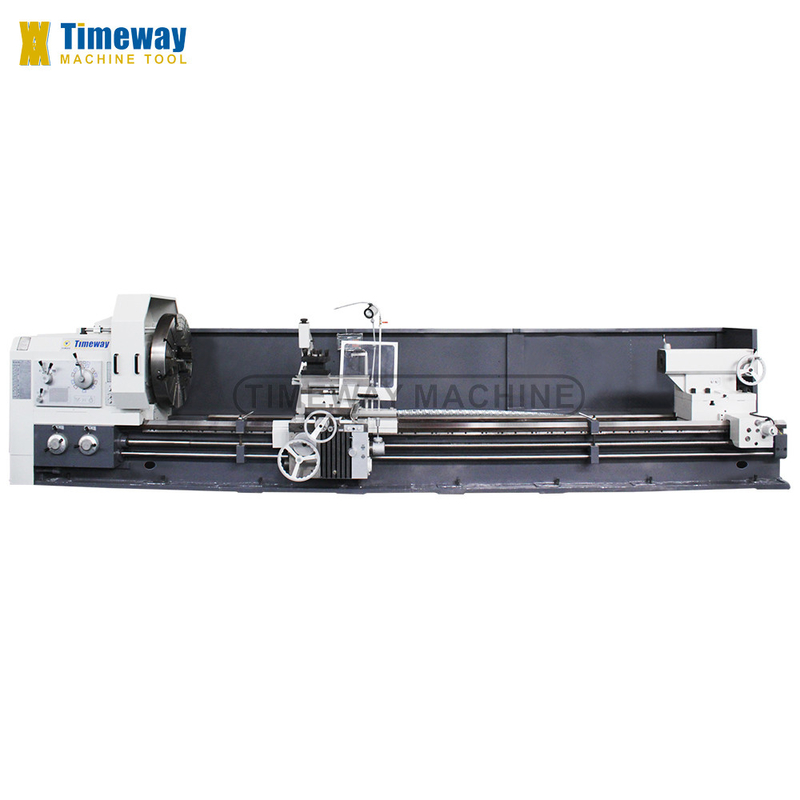

High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | AL-1250B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $40,000.00/sets 1-1 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1300 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Dimension(L*W*H): | 4600 2150 1825 | Weight (KG): | 6000 KG |
| Warranty: | 1 Year | Key Selling Points: | Automatic, Competitive Price, High Safety Level, High-accuracy, Energy Saving, Sustainable, High Productivity, Long Service Life, Easy To Operate, High Rigidity |
| Marketing Type: | Hot Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Weight Of Workpiece(kg): | 6000 | Spindle Taper: | Metric140 |
| Cutting Torque: | 0 N.m | Rapid Feed Speed(mm/min): | 935 - 3740 Mm/min |
| Feed Speed(mm/min): | 935 - 3740 Mm/min | Tool Post Stations: | 4 |
| CNC Or Not: | Normal | Machine Type: | Flat Bed Lathe |
| Product Name: | Horizontal Turning Machine | Name: | Bench Lathe |
| Keyword: | Universal Metal Lathe | After-sales Service Provided: | 12 Months |
| Function: | Machining Metal | Automatic Grade: | Normal |
| Precision: | High Precision High Accuracy | Color: | Customrized |
Product Description
Product Description
Specification
Max. swing over bed | 1250mm |
Max. swing over cross slide | 865mm |
Distance between centers | 1500mm |
Max. turning length | 1300mm |
Bed width | 755mm |
Loading capacity | 6000(opt: 8000)kg |
Spindle nose | A2-15 (8xM22) |
Spindle bore | 130mm |
Spindle taper | Metric 140 |
Spindle speed range | Forward: 3.15-315, Reverse: 3.5-291rpm |
Spindle speed step | Forward: 21, Reverse: 12steps |
X/Z-axis feed kinds | 56/56kinds |
Feed range | Longitudinal: 0.1-12; Cross: 0.05-6; Top tool-post: 0.025-3mm |
Metric threads range (kinds) | 1-120 (44)mm |
Inch threads range (kinds) | 28-1/4 (31)TPI |
Module threads range (kinds) | 0.5-60 (45)MP |
Diametrical threads range (kinds) | 1/2-56 (38)DP |
Distance spindle center to tool base | 48mm |
Tool post swivel angle | ±90° |
Cross slide travel | 580mm |
Top slide travel | 300mm |
Tool section size | 45x45mm |
Rapid feed speed | Longitudinal: 3740; Cross: 1870; Top tool-post: 935mm/min |
Tailstock quill diameter | 160mm |
Tailstock quill travel | 300mm |
Tailstock quill taper | MT6 |
Main motor power | 22kw |
Machine length | 4600mm |
Machine width | 2150mm |
Machine height | 1825mm |
STANDARD ACCESSORIES:

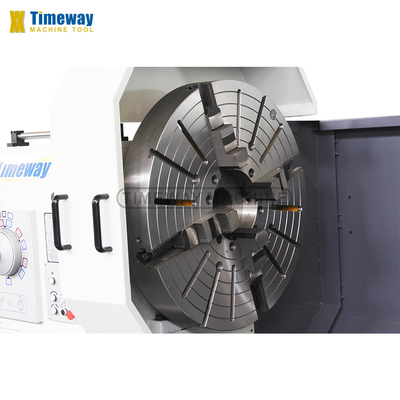

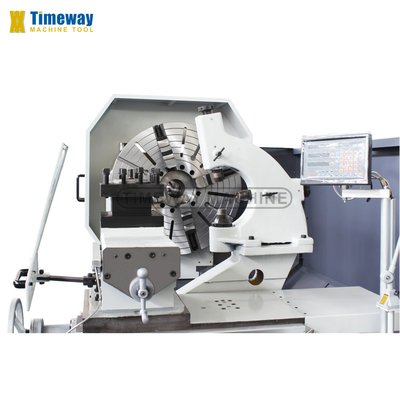

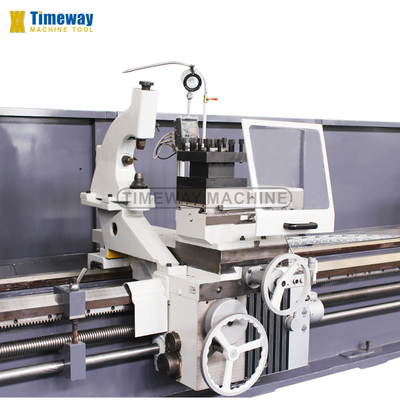

4-jaw independent chuck, Steady rest (over 3M length), Follow rest, Manual moving tailstock, Dead center, 4-station tool post,Cooling system, Work lamp, Tools & tool-box, Leveling wedge and bolts, Operation manual (English).
optional ACCESSORIES:
2 or 3-axis DRO, Chuck guard, Tool-post guard, Rear splash guard, Electric moving tailstock, Grinding attachment.
