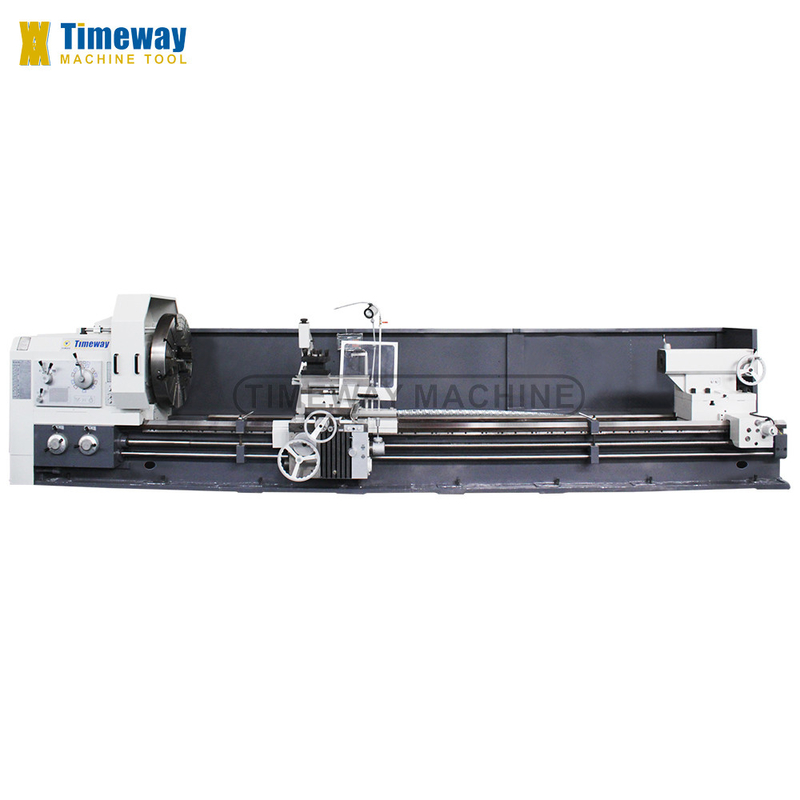

Metric 140 Spindle Taper AL-1250B Accuracy Horizontal Lathe for Heavy Duty Machining
Product Details:
| Place of Origin: | China |
| Certification: | CE |
| Model Number: | AL-1250B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,999.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 2000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Dimension(L*W*H): | 5100 215 1825 | Weight (KG): | 6500 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy, High Rigidity |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Weight Of Workpiece(kg): | 6000 | Spindle Taper: | Metric 140 |
| Cutting Torque: | 66 N.m | Rapid Feed Speed(mm/min): | 1870 - 3740 Mm/min |
| Feed Speed(mm/min): | 1870 - 3740 Mm/min | Tool Post Stations: | 4 |
| After-sales Service Provided: | Online Services | Precision: | Precision |
| CNC Or Not: | Nomal | Distance Between Centers: | 1500/2000/3000/4000/5000/6000/8000/10000/12000 /- |
| Spindle Speed: | Forward: 3.15-315, Reverse: 3.5-291 | Max.swing Over Bed: | 1250mm |
| Power(W): | 22kw | Max. Turning Length: | 1300/1800/2800/3800/4800/5800/7800/9800/11800 /- |
| Key Words: | Metal Universal Lathe Machine | ||
Product Description
Product Description
Specification
Specification | unit | AL-1250B |
Max. swing over bed | mm | 1250 |
Max. swing over cross slide | mm | 865 |
Distance between centers | mm | 1500/2000/3000/4000/5000/6000/8000/10000/12000 |
Max. turning length | mm | 1300/1800/2800/3800/4800/5800/7800/9800/11800 |
Bed width | mm | 755 |
Loading capacity | kg | 6000(opt: 8000) |
Spindle nose | - | A2-15 (8xM22) |
Spindle bore | mm | 130 |
Spindle taper | - | Metric 140 |
Spindle speed range | rpm | Forward: 3.15-315, Reverse: 3.5-291 |
Spindle speed step | steps | Forward: 21, Reverse: 12 |
X/Z-axis feed kinds | kinds | 56/56 |
Feed range | mm | Longitudinal: 0.1-12; Cross: 0.05-6; Top tool-post: 0.025-3 |
Metric threads range (kinds) | mm | 1-120 (44) |
Inch threads range (kinds) | TPI | 28-1/4 (31) |
Module threads range (kinds) | MP | 0.5-60 (45) |
Diametrical threads range (kinds) | DP | 1/2-56 (38) |
Distance spindle center to tool base | mm | 48 |
Tool post swivel angle | ±90° | |
Cross slide travel | mm | 580 |
Top slide travel | mm | 300 |
Tool section size | mm | 45x45 |
Rapid feed speed | mm/min | Longitudinal: 3740; Cross: 1870; Top tool-post: 935 |
Tailstock quill diameter | mm | 160 |
Tailstock quill travel | mm | 300 |
Tailstock quill taper | - | MT6 |

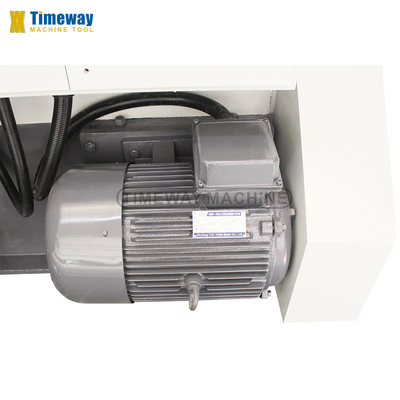

Main motor power | kw | 22 |
Machine length | mm | 4600/5100/6100/7100/8100/9100/11100/13100/15100 |
Machine width | mm | 2150 |
Machine height | mm | 1825 |
STANDARD ACCESSORIES:

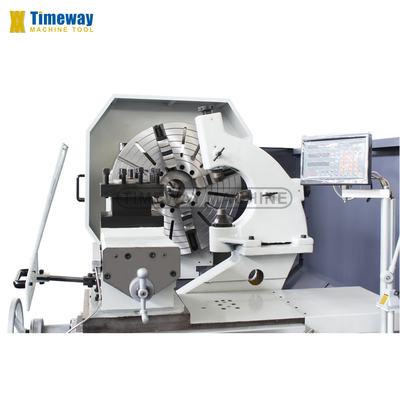

4-jaw independent chuck,
Steady rest (over 3M length),
Follow rest,

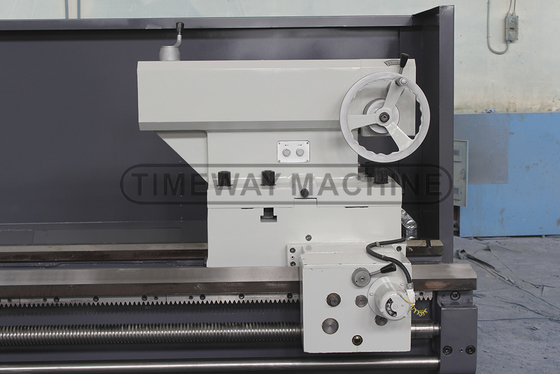

Manual moving tailstock, Dead center, 4-station tool post,
Work lamp, Cooling system, Tools & tool-box,
Work lamp, Cooling system, Tools & tool-box,
Leveling wedge and bolts,
Operation manual (English).
OPTIONAL ACCESSORIES:

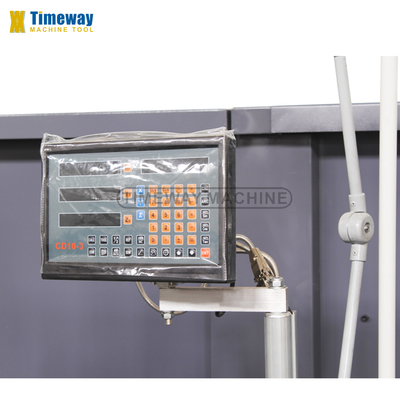

2 or 3-axis DRO,
Chuck guard,
Tool-post guard,
Rear splash guard,
Electric moving tailstock,
Grinding attachment.
