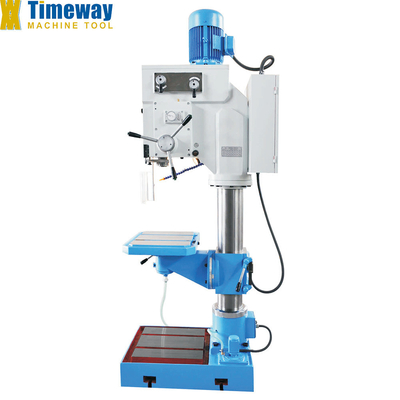

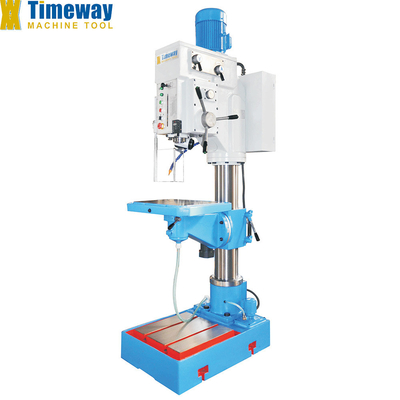

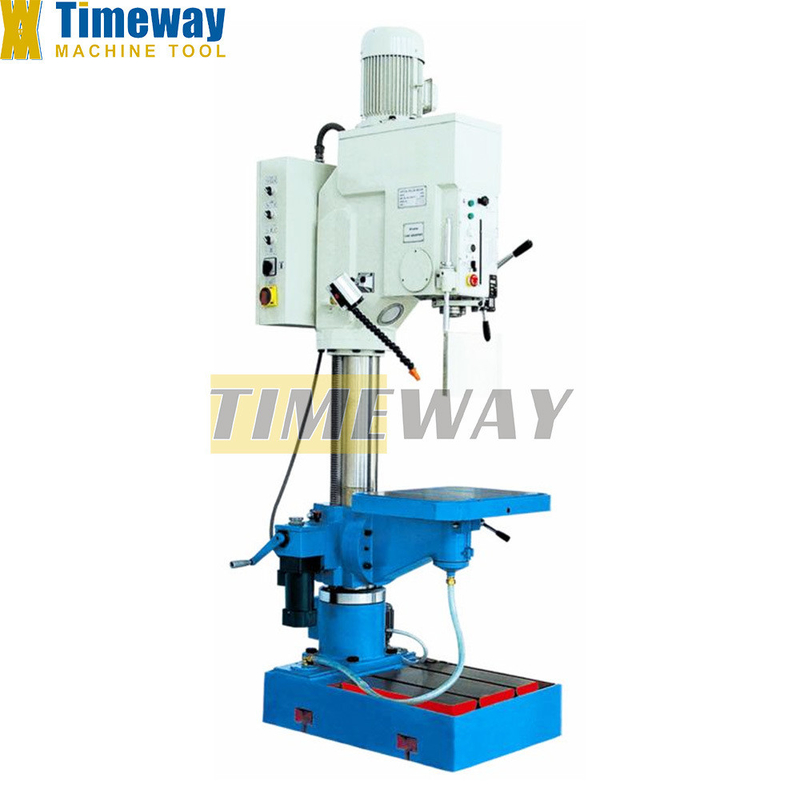

Stable Processing Z-50A Column Drilling Machine Design and Max. Drilling Capacity 50mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $2,880.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Weight (KG): | 800 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Viet Nam, Philippines, Indonesia, India, Mexico, Russia, Thailand, Romania, Bangladesh, Kazakhstan, Nigeria, Malaysia, Australia | Product Name: | Column Drilling Machine |
| Machine Type: | Vertical | Model: | Z-50A |
| Type: | Easy Operate | Processing: | Stable Processing |
| Packing Dimensions: | 700x1150x2150mm | COLOR: | Customer Choose |
| Motor Power: | 2.2/2.8kw | Max. Drilling Capacit: | 50mm |
| Max. Tapping Capacity: | M24 Mm | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:
Drill chuck
Arbor
Taper sleeve
Drift
Eyelet bolts
Wrench
Arbor
Taper sleeve
Drift
Eyelet bolts
Wrench
OPTIONAL ACCESSORIES:
Multi-spindles
Angle vice
Safety guard
Angle vice
Safety guard
Specification
SPECIFICATION | UNIT | Z-50A |
Max. drilling capacity | mm | 50 |
Max. tapping capacity | mm | M24 |
Distance from spindle to column | mm | 360 |
Distance from spindle nose to table | mm | 600 |
Distance from spindle nose to base | mm | 1205 |
Spindle travel | mm | 180 |
Table travel | mm | 525 |
Swivel angle of table | ° | ±45° |
Spindle taper | - | MT4 |
Spindle speed steps | steps | 12 |
Spindle speed range | rpm | 42-1865 |
Spindle feed steps | steps | 4 |
Spindle feed range | mm/r | 0.07, 0.15, 0.26, 0.4 |
Column diameter | mm | 170 |
Effective working area of table(LxW) | mm | 580x450 |
Effective working area of base(LxW) | mm | 820x550 |
Dimension of T-slot of table and base | mm | 2-14, 2-16 |
Main motor power (double-speed) | kw | 2.2/2.8 |
Main motor speed | rpm | 960/1450 |
Pump motor | kw | 0.09 |
Packing size | mm | 700x1150x2150 |
Net weight/Gross weight | kg | 800/860 |
