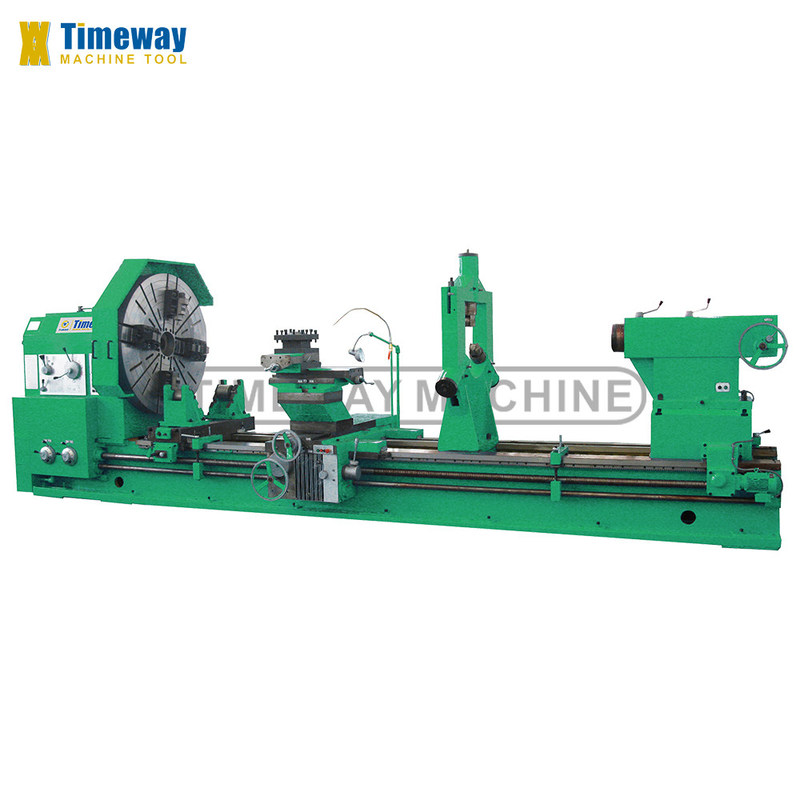

Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | AL-1600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $140,000.00/sets 1-1 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 2800 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Dimension(L*W*H): | 6120 2130 2380 | Weight (KG): | 20000 KG |
| Warranty: | 1 Year | Key Selling Points: | Automatic, Competitive Price, High Safety Level, High-accuracy, Energy Saving, Sustainable, High Productivity, Long Service Life, Other, Easy To Operate, Flexible Manufacturing, High Rigidity, Low Maintenance Cost |
| Marketing Type: | Hot Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Weight Of Workpiece(kg): | 160000 | Spindle Taper: | Metric140 |
| Cutting Torque: | 0 N.m | Rapid Feed Speed(mm/min): | 0 - 6000 Mm/min |
| Feed Speed(mm/min): | 0 - 4000 Mm/min | Tool Post Stations: | 4 |
| Name: | Bench Lathe | Machine Type: | Horizontal Metal Turning Lathe Machine |
| Product Name: | Manual Metal Lathe Machine | Keyword: | Universal Metal Lathe |
| After-sales Service Provided: | Spare Parts | CNC Or Not: | Normal Lathe Machine |
| Function: | Machining Metal | Automatic Grade: | Normal |
| Product Type: | Horizontal Universal Lathe | Precision: | High Precision High Accuracy |
Product Description
Product Description
Specification
Max. swing over bed | 1600mm |
Max. swing over cross slide | 1250mm |
Distance between centers | 3000mm |
Max. turning length | 2800mm |
Bed width | 1100mm |
Loading capacity | 16(opt: 20)tons |
Spindle nose | A2-15 |
Spindle bore | 100mm |
Spindle taper | Metric 140 |
Spindle speed range | Forward: 3.15-315, Reverse: 3.5-291rpm |
Spindle speed step | Forward: 21, Reverse: 12steps |
X/Z-axis feed kinds | 56kinds |
Feed range | Longitudinal:0.1-12; Cross:0.05-6; Top tool-post: 0.025-3mm/r |
Metric threads range (kinds) | 1-120 (44)mm |
Inch threads range (kinds) | 28-1/4 (31)TPI |
Module threads range (kinds) | 0.5-60 (45)MP |
Diametrical threads range (kinds) | 1/2-56 (38)DP |
Distance from spindle center to tool base | 53mm |
Tool post swivel angle | ±90° |
Cross slide travel | 850mm |
Top slide travel | 360mm |
Tool section size | 50x50mm |
Tool post feed per gar | 0.05mm |
Tailstock quill diameter | 260mm |
Tailstock quill travel | 300mm |
Tailstock quill taper | Metric 80 |
Main motor power | 30kw |
Machine length | 6120mm |
Machine width | 2130mm |
Machine height | 2380mm |
STANDARD ACCESSORIES:

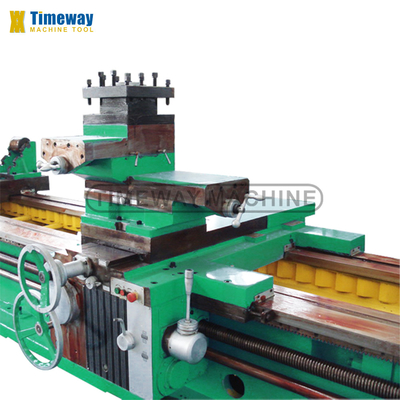

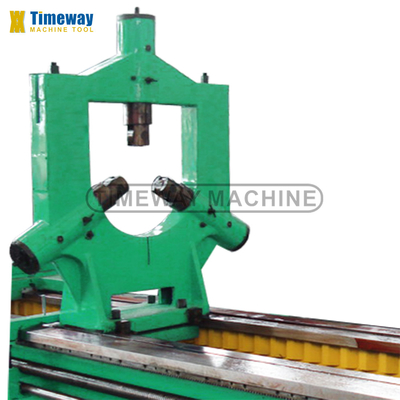

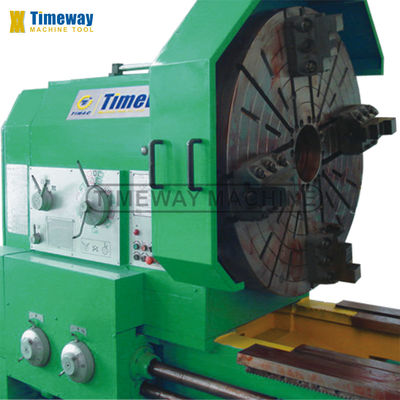

4-jaw heavy duty independent chuck, Steady rest, Dead center, 4-station tool post, Cooling system, Work lamp, Electric moving tailstock, Tools & tool-box, Leveling wedge and bolts, Operation manual (English).
OPTIONAL ACCESSORIES:

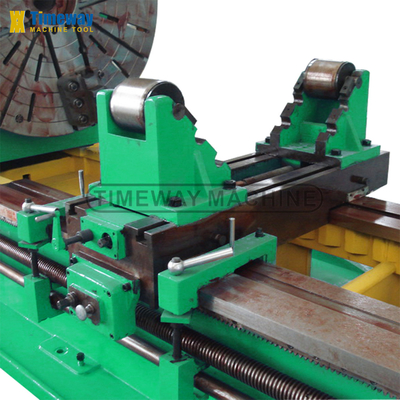

Face plate, 2 or 3-axis DRO, Chuck guard, Tool-post guard, Rear splash guard, Roller support, Grinding attachment.
