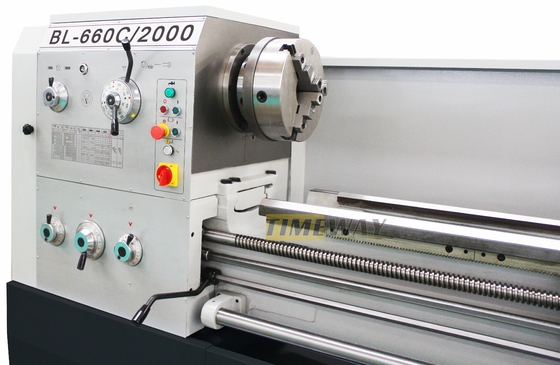

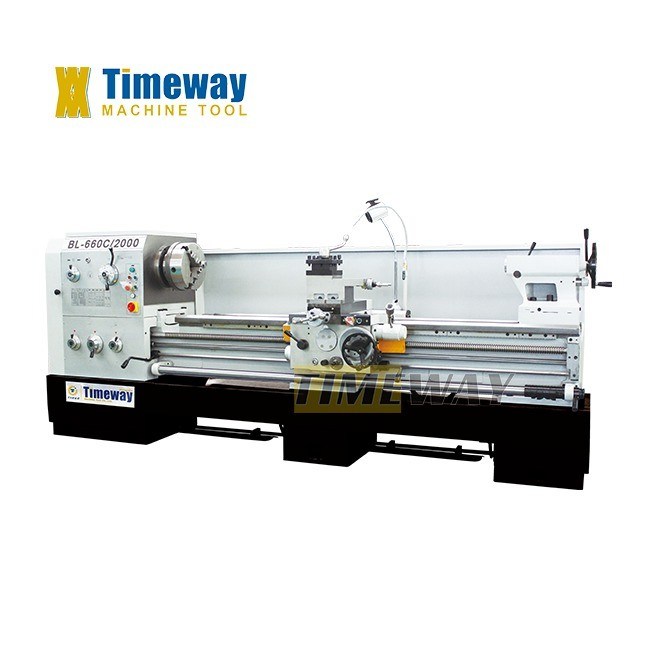

BL-660C Universal Lathe Machine Designed for Precision and Efficiency in Metalwork
Product Details:
| Place of Origin: | China |
| Certification: | CE |
| Model Number: | BL-660C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,556.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Range Of Spindle Speed(r.p.m): | 36 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Dimension(L*W*H): | 2632 975 1450 | Weight (KG): | 2200 KG |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional, High-accuracy, High Rigidity |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Weight Of Workpiece(kg): | 6000 | Spindle Taper: | 113, 1:20 |
| Cutting Torque: | 66 N.m | Rapid Feed Speed(mm/min): | 1.9 - 5.4 Mm/min |
| Feed Speed(mm/min): | 1.9 - 5.4 Mm/min | Tool Post Stations: | 4, 6 |
| Name: | Bench Lathe | After-sales Service Provided: | Online Support |
| Precision: | High Precision | CNC Or Not: | No |
| Processing: | Metal Workpiece | Distance Between Centers: | 750/1000/1500/2000/3000mm |
| Power(W): | 7.5kw | Swing Over Bed: | 660mm |
| Spindle Speed: | 36-1600rpm | ||
Product Description
Product Description
Specification
Specification | unit | BL0660C |
Max. swing over bed | mm | 660 |
Max. swing over cross slide | mm | 420 |
Max. swing over gap | mm | 870 |
Gap length | mm | 240 |
Distance between centers | mm | 750/1000/1500/2000/3000 |
Max. turning length | mm | 700/950/1450/1950/2950 |
Spindle bore | mm | Φ105 |
Spindle taper | - | Φ113, 1:20 |
Spindle nose | - | ISO 702/II No.8 |
Spindle speed range (steps) | rpm | 36-1600 (12) |
Top slide travel | mm | 145 |
Cross slide travel | mm | 310 |
Tool section size | mm | 25x25 |
X-axis rapid feed speed | m/min | 50HZ: 1.9; 60HZ: 2.3 |
Z-axis rapid feed speed | m/min | 50HZ:4.5; 60HZ: 5.4 |
X-axis feed range | mm/r | 0.027-1.07 (65) |
Z-axis feed range | mm/r | 0.63-2.52 (65) |
Metric threads range (kinds) | mm | 1-14 (22) |
Inch threads range (kinds) | TPI | 28-2 (25) |
Module threads range (kinds) | MP | 0.5-7 (18) |
Diametrical threads range (kinds) | DP | 56-4 (24) |
Tailstock quill diameter | mm | Φ75 |
Tailstock quill travel | mm | 150 |
Tailstock quill taper | - | MT5 |
Main motor power | kw | 7.5 |
Rapid feed motor power | kw | 0.3 |
Coolant pump motor power | kw | 0.12 |
Machine length | mm | 2382/2632/3132/3632/4632 |
Machine width | mm | 975 |
Machine height | mm | 1450 |
Machine weight | kg | 2150/2200/2400/2600/3000 |
