High Precision Box-column Drilling Machine SD-80B for Professional Drilling Needs
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $2,880.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Weight (KG): | 1850 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Viet Nam, Philippines, Indonesia, India, Mexico, Russia, Thailand, Romania, Bangladesh, Kazakhstan, Nigeria, Malaysia, Australia | Product Name: | Box-column Drilling Machine |
| Machine Type: | Vertical | Model: | SD-80B |
| Type: | Easy Operate | Processing: | Stable Processing |
| Packing Dimensions: | 2750x1010x1790mm | COLOR: | Customer Choose |
| Motor Power: | 5.5kw | Max. Drilling Capacit: | 80mm |
| Max.feed Resistance: | 30000N | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description

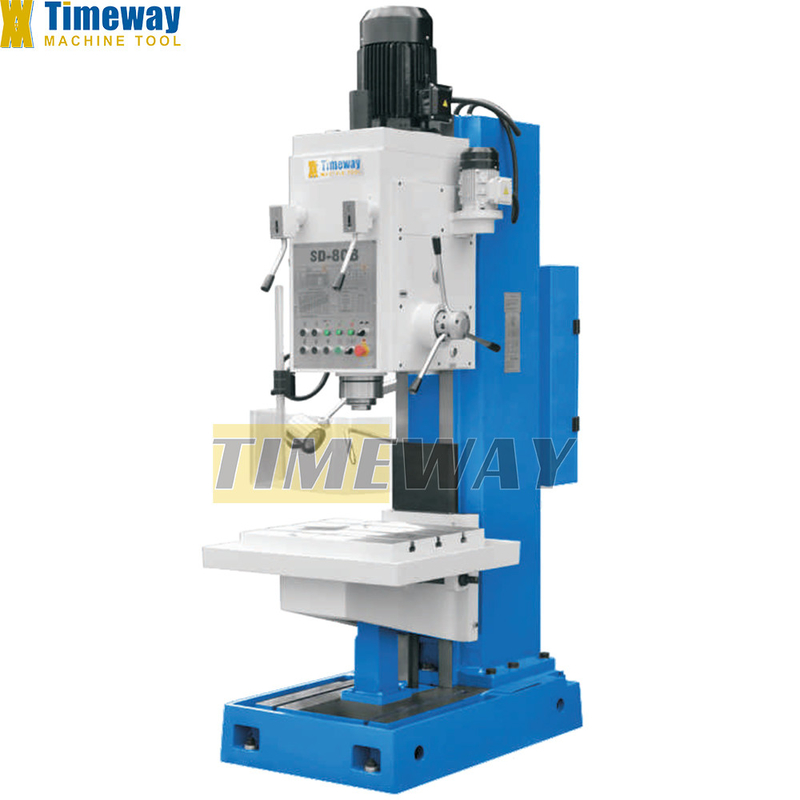

Box-column Drilling Machine SD-80B
- Square-column vertical drilling machine is a universal general-purpose machine.
- It's used for counter-sinking,spot-facing drilling, tapping, boring, reaming, etc.

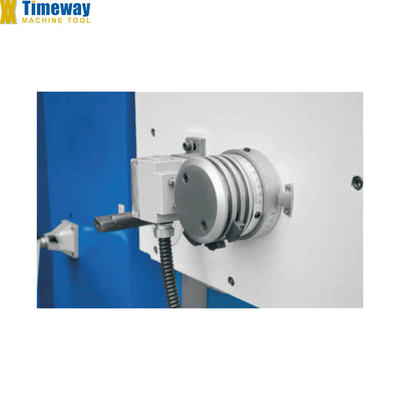

- The machine has catch thef unction of tap-automatically reversing device which is suitable for tapping of blind and determined holes.

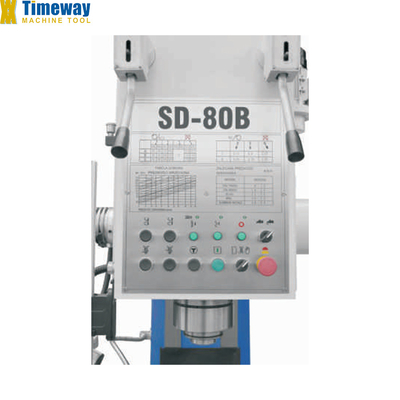

- The machine has high effciency, high accuracy, low noise, wide range of variable speed, centralized controls good looking appearance, easy maintenance and operation.
- It's used for counter-sinking,spot-facing drilling, tapping, boring, reaming, etc.
- The machine has catch thef unction of tap-automatically reversing device which is suitable for tapping of blind and determined holes.
- The machine has high effciency, high accuracy, low noise, wide range of variable speed, centralized controls good looking appearance, easy maintenance and operation.
Specification
SPECIFICATION | UNIT | SD-80B |
Max. drilling capacity | mm | 80 |
Max.feed resistance | N | 30000 |
Max.permissible spindle torque | N.m | 800 |

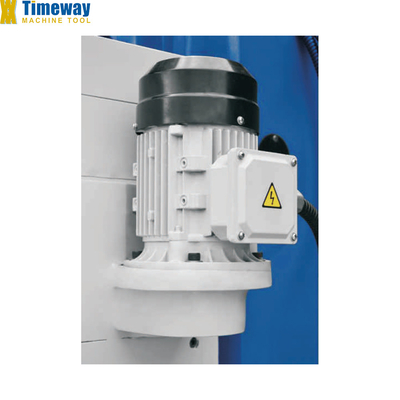

Power of main motor | kw | 5.5 |
Throat distance | mm | 375 |
Spindle taper | - | MT6 |
Spindle travel | mm | 250 |
Spindle box trave | mm | 250 |
Spindle speed range | r/min | 40-570 |
Spindle speed steps | steps | 9 |
Feed rates | mm/rev | 0.1-0.78 |
Feed rates steps | steps | 6 |
Max.travel of table | mm | 300 |

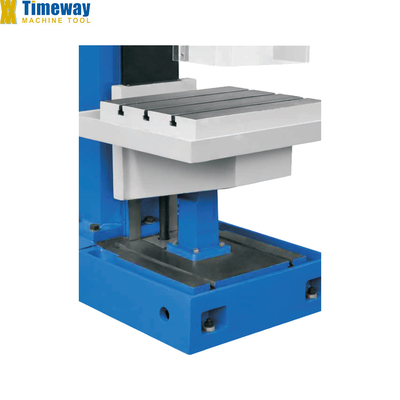

Working surface of worktable | mm | 650x550 |
Max. distance from spindle nose to worktable | mm | 800 |
Overall dimensions(LxWxH) | mm | 965x1452x2787 |
Net weight / Gross weight | kg | 1850/1935 |
Packing size (LxWxH) | mm | 2750x1010x1790 |
