DB-25 Vertical Bench Drilling Machine for Machinery Repair Shops and Customer Choose
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $2,680.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Weight (KG): | 220 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Viet Nam, Philippines, Indonesia, India, Mexico, Russia, Thailand, Romania, Bangladesh, Kazakhstan, Nigeria, Malaysia, Australia | Product Name: | Bench Drilling Machine |
| Machine Type: | Vertical | Model: | DB-25 |
| Type: | Easy Operate | Processing: | Stable Processing |
| Machine Dimension (LxWxH): | 700x410x1560mm | COLOR: | Customer Choose |
| Motor Power: | 0.75kw | Spindle Box Travel: | 470mm |
| Spindle Travel: | 110mm | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description

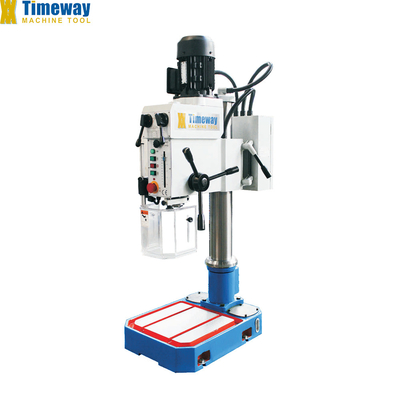

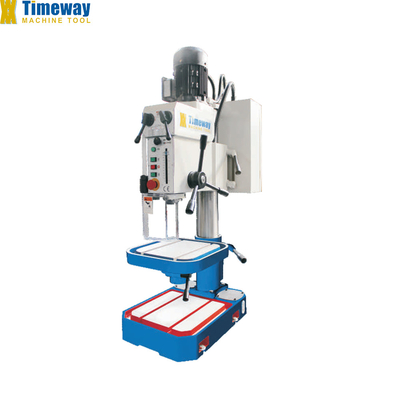

Bench Drilling Machine DB-25
Superior quality of gears with hardened and lapped gears of surface.
Spindle box can be moved up and down.
220v-575v, 50HZ/60HZ with 3-phase collocation is available.
Precisely treated base includes T-slots and integrated coolant device.
LED working light and automatic tool release device as standard.
Hardened, polished gear wheels ensure smooth running.
Absolute concentricity less than 0.02 mm, measured at spindle.
3 automatic spindle feeds come standard.
Switch for left and right spindle rotation.
2-speed motor allows 12 speed settings.
Drill depth stop includes scale.

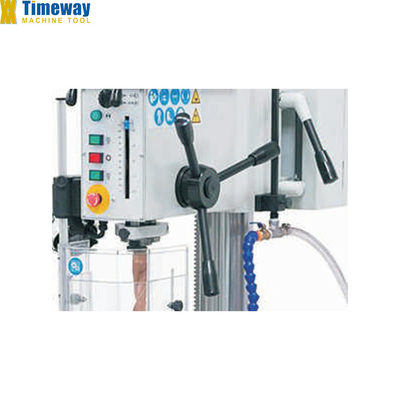

Lever on gear head for quick speed adjustment.

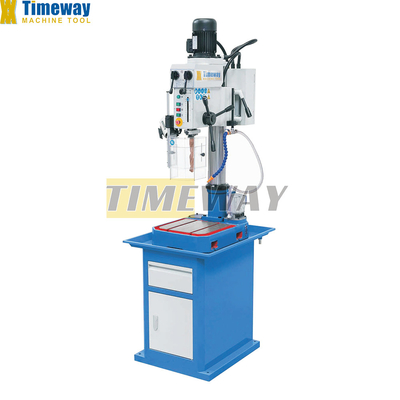

Various machine stand for optional.
Importable electrical components with CE, CSA and UL standard.
Spindle box can be moved up and down.
220v-575v, 50HZ/60HZ with 3-phase collocation is available.
Precisely treated base includes T-slots and integrated coolant device.
LED working light and automatic tool release device as standard.
Hardened, polished gear wheels ensure smooth running.
Absolute concentricity less than 0.02 mm, measured at spindle.
3 automatic spindle feeds come standard.
Switch for left and right spindle rotation.
2-speed motor allows 12 speed settings.
Drill depth stop includes scale.
Lever on gear head for quick speed adjustment.
Various machine stand for optional.
Importable electrical components with CE, CSA and UL standard.
Specification
SPECIFICATION | UNIT | DB-25 |
Max. drilling and tapping diameter (steel) | mm | 25/M16 |
Spindle travel | mm | 110 |
Distance from spindle axis to column | mm | 240 |
Distance from spindle nose to base | mm | 650 |
Spindle box travel | mm | 470 |
Spindle taper bore | - | MT3 |
Spindle speed steps | steps | 6 |
Spindle speed range | r/min | 125-2825 |
Spindle feed steps | steps | - |
Spindle feed range | mm/r | - |
Spindle feed way | - | manual |
Effective working area | mm | 310x320 |
Main motor power | kw | 0.75 |
Machine dimension (LxWxH) | mm | 700x410x1560 |
Net weight/gross weight | kg | 220/270 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction

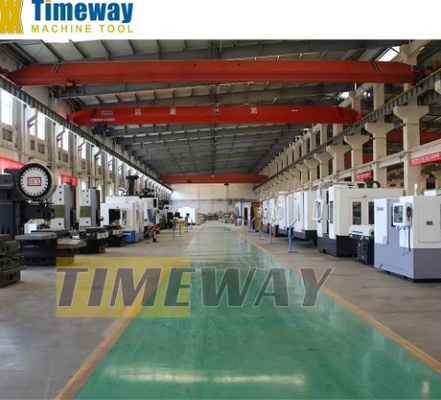

Factory Display：
