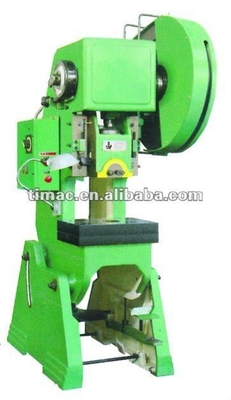

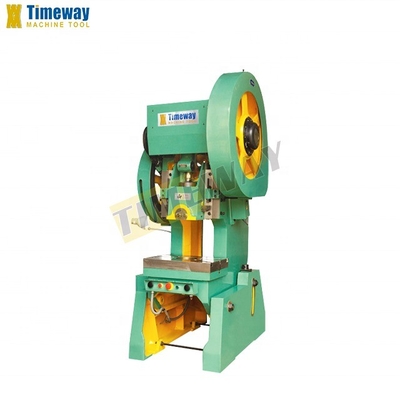

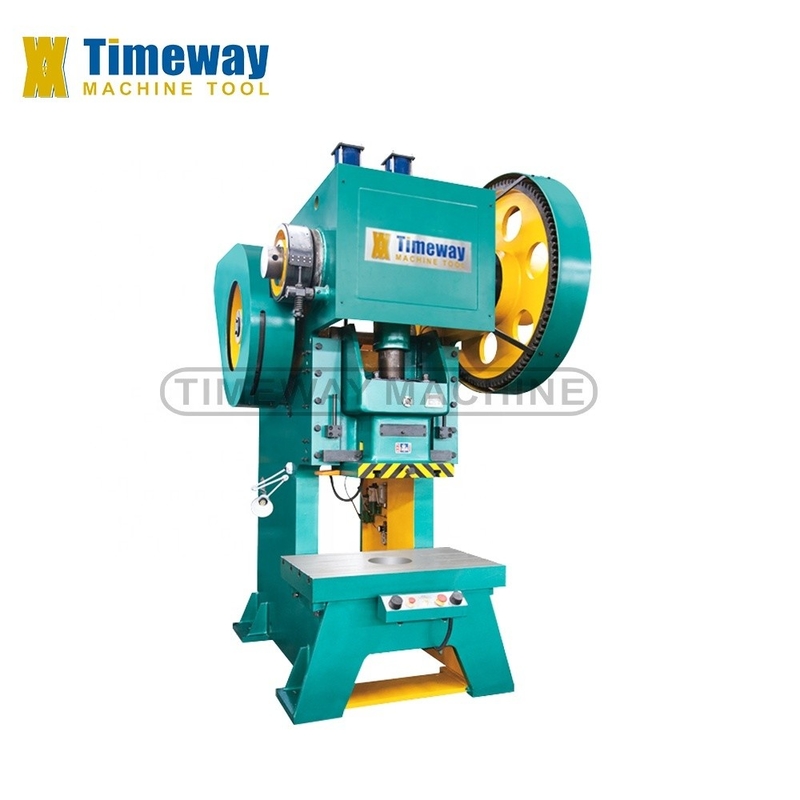

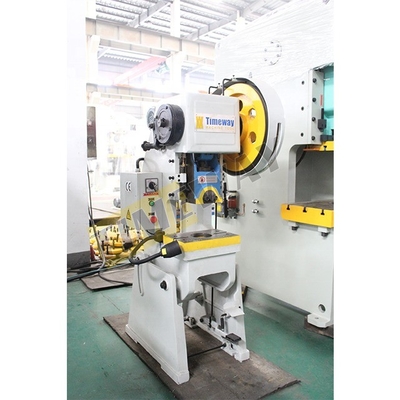

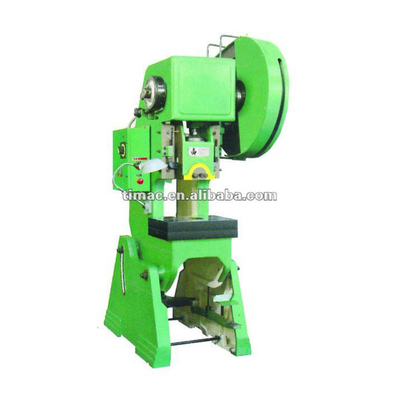

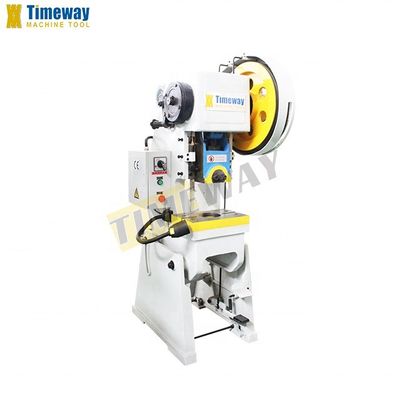

63 kN Open Type Inclinable Power Press for Precise and Versatile Metal Forming
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $29,500.00/sets 1-2 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Slide Stroke (mm): | 35 | Machine Type: | Single Column Hydraulic Press, Hydraulic Press |
|---|---|---|---|
| Return Force (kN): | 63 KN | System: | Servo |
| Condition: | New | Voltage: | 220/380V |
| Weight (T): | 2.1 T | Motor Power (kw): | 0.75 Kw |
| Key Selling Points: | High-accuracy | Warranty: | 1 Year |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other | Showroom Location: | Philippines, Peru, Indonesia, Mexico, Thailand, Argentina, South Korea, Chile, Colombia, South Africa, Malaysia, Australia |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Other | Weight (KG): | 5300 |
| Power(W): | 0.75-7.5 Kw | Power Source: | Mechanical |
| After-sales Service Provided: | Online Support | Norminal Pressure: | 63 KN |
| Norminal Pressure Stroke: | 1.5 Mm | Stroke Of Slide: | 35 Mm |
| Max. Die Set Height: | 115 Mm | Total Weight: | 380 Kg |
| Port: | China Port | ||
Product Description
Products Description
1. The machine body in inclinable casting structure, with high-rigidity, less deformation and excellent performance of shock absorption.
2. With switch-button type rigid clutch-brake, fast response, and the safety performance is reliable.
3. The crankshafts lay across, the slide adopts V-type guides for orientation, with high precision.
4. Equipped with press-down type safety device, which ensure the safety production of press.
5. Manual moulding-adjustment, scale display.
6. The machine adopts emergency brake, which can control the emergent events during the process of slider coming down, such as when arms or something else enter into the slider working area, the slider can stop at any position of down stroke.
7. Can equip with optional photoelectric protection, transmission output shaft, feeding device, air cushion etc. accorind to customer request.
2. With switch-button type rigid clutch-brake, fast response, and the safety performance is reliable.
3. The crankshafts lay across, the slide adopts V-type guides for orientation, with high precision.
4. Equipped with press-down type safety device, which ensure the safety production of press.
5. Manual moulding-adjustment, scale display.
6. The machine adopts emergency brake, which can control the emergent events during the process of slider coming down, such as when arms or something else enter into the slider working area, the slider can stop at any position of down stroke.
7. Can equip with optional photoelectric protection, transmission output shaft, feeding device, air cushion etc. accorind to customer request.
Specification | Unit | J23-6.3 | J23-10 | J23-16 | J23-16A | J23-20 | ||
Norminal pressure | kN | 63 | 100 | 160 | 160 | 200 | ||
Norminal pressure stroke | mm | 1.5 | 2 | 2 | 2 | 2 | ||
Stroke of slide | mm | 35 | 60 | 70 | 90 | 90 | ||
Strokes | S.P.M | 170 | 145 | 122 | 125 | 90 | ||
Max. die set height | mm | 115 | 130 | 160 | 140 | 180 | ||
Die height adjustment | mm | 30 | 50 | 60 | 60 | 70 | ||
Depth of throat | mm | 110 | 130 | 160 | 200 | 175 | ||
Distance between uprights | mm | 145 | 185 | 220 | 305 | 240 | ||
Size of table | L-R | mm | 310 | 360 | 450 | 620 | 500 | |
F-B | mm | 200 | 240 | 300 | 380 | 330 | ||
Thickness | mm | 35 | 50 | 60 | 60 | 70 | ||
Hole of table | Diameter | mm | φ60 | φ100 | φ110 | φ110 | φ110 | |
Bottom size of slide | L-R | mm | 140 | 170 | 200 | 200 | 220 | |
F-B | mm | 120 | 150 | 180 | 180 | 200 | ||
Holr for punch shank | Diameter | mm | φ30 | φ30 | φ40 | φ40 | φ40 | |
Depth | mm | 55 | 55 | 60 | 60 | 60 | ||
Motor power | kW | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | ||
Overall dimension | F-B | mm | 780 | 850 | 1140 | 1200 | 1200 | |
L-R | mm | 550 | 670 | 905 | 850 | 880 | ||
Height | mm | 1500 | 1670 | 1890 | 1850 | 2000 | ||
Total weight | kg | 380 | 560 | 1090 | 1190 | 1400 | ||
