1. Don't need skilled press machine operator, press the button to automatically complete the whole set of press process, and it's
laborsaving.
2. Set the emergency stop button, achieve emergency braking, and improve the production safety.
 |
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100,000.00/sets >=1 sets |
| Packaging Details: | Wooden pallet or Wood case |
| Supply Ability: | 200 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Weight (KG): | 116 | Applicable Industries: | Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Chile | Voltage: | 380V/50HZ |
| Nominal Pressure: | 5000KN | Motor Power: | 45Kw |
| Worktable Size: | 1200*1120mm | Machine Dimensions: | 4000*2300*5000mm |
| Slide Stroke: | 750mm | Control System: | Servo Motor Drive And Intellgent Control System |
| Structure Type: | Ordinary Type And Static Pressure Type | After-sales Service Provided: | Online Support |
| Color: | Customer Choose | Port: | China Port |
Product Description
Product Description

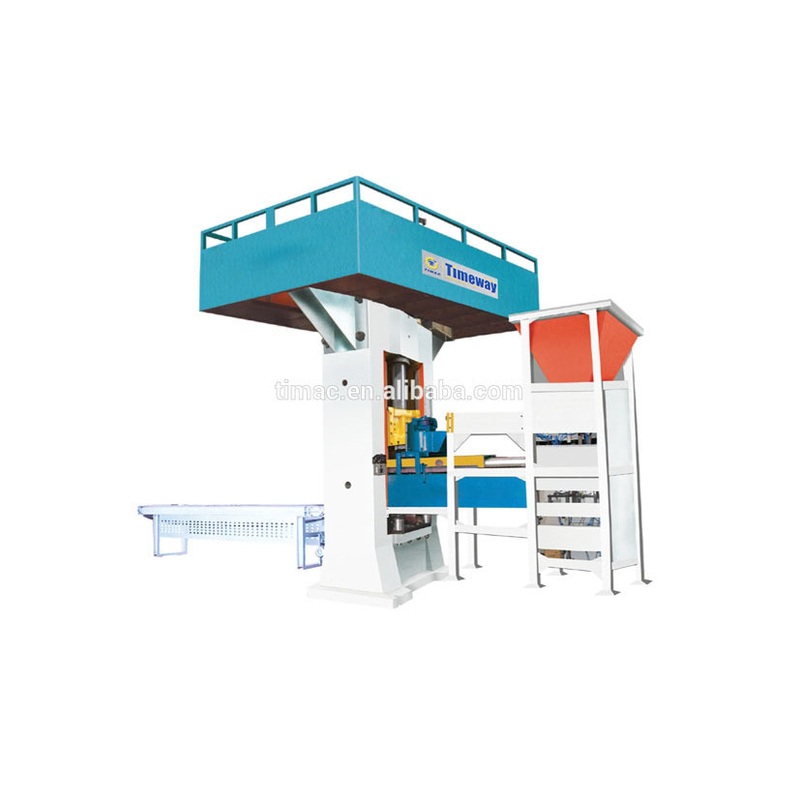

Electric Screw Press
Features
1. Realization of electronic weighing, automatic loading, automatic molding, automatic brick and whole process automation. 2. One machine with one mould or multi-moulds, continuous production, only need one worker arrang and put bricks, safe and efficient. 3. This series of products have the advantages of high accuracy, high accuracy, easy operation, convenient maintenance, high production efficiency and high automation.
Model | Nominal Pressure (KN/T) | Max. Pressure (KN) | Slide Stroke (mm) | Stroke No. | Die Set Height (mm) | Worktable Size (mm) | Motor Power (KW) | Weight (T) |
ESP-30 | 300/30 | 600 | 300 | 22 | 750 | 405*470 | 5.5 | 1.2 |
ESP-60 | 600/60 | 1200 | 430 | 22 | 780 | 560*460 | 7.5 | 3.5 |
ESP-200 | 2000/200 | 4000 | 650 | 22 | 780 | 900*660 | 22 | 8.5 |
ESP-315 | 3150/315 | 6300 | 600 | 20 | 780 | 1200*880 | 26 | 18 |
ESP-400 | 4000/400 | 8000 | 750 | 20 | 920 | 1200*1050 | 42 | 28 |

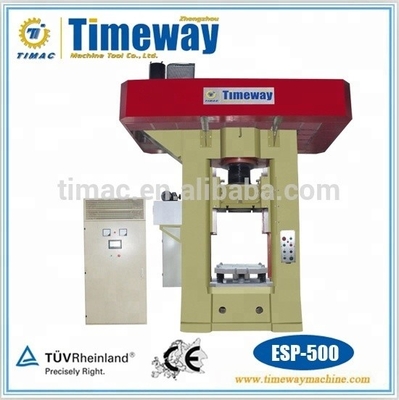

ESP-500 | 5000/500 | 10000 | 750 | 20 | 960 | 1200*1120 | 45 | 35 |
ESP-630B | 6300/630 | 12000 | 750 | 18 | 1150 | 1250*1120 | 78 | 46 |
ESP-800B | 8000/800 | 16000 | 750 | 18 | 1205 | 1250*1250 | 78 | 62 |
ESP-1000B | 10000/1000 | 20000 | 800 | 18 | 1260 | 1300*1120 | 63*2 | 72 |

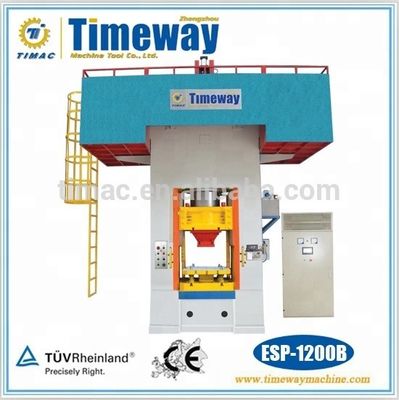

ESP-1200B | 12000/1200 | 24000 | 800 | 17 | 1250 | 1320*1140 | 78*2 | 76 |
ESP-1600B | 16000/1600 | 32000 | 800 | 14 | 1250 | 1340*1250 | 95*2 | 116 |
Detailed Images
Drive: Servomotor drive system
1. Lower start current, soft starter reduce the electric shock to the electrical net.
2. Motor will start-up when press molding, and motor will be under stop condition when loading, production, mould finishing, which is power saving 55%.
3. High control precision. Speed variance is 0.0001/r.
4. Fast response time, single stroke operation, and speed freely adjusts, totally simulate manual labor's technology.
5. With strong instantaneous overload capacity, over voltage, under voltage, over current multiple protection system.
2. Motor will start-up when press molding, and motor will be under stop condition when loading, production, mould finishing, which is power saving 55%.
3. High control precision. Speed variance is 0.0001/r.
4. Fast response time, single stroke operation, and speed freely adjusts, totally simulate manual labor's technology.
5. With strong instantaneous overload capacity, over voltage, under voltage, over current multiple protection system.
Set up: Touch screen easy setting
1. Under the necessity of moulding process, touch-screen can digital set up press-times, press-strength, press-speed and so on, so as to reduce factitious factor, and improve stability of product quality. 2. Touch screen can real time display the working status, system can monitor the production process, and detect and report equipment failure automatically. 3. Touch screen can set password protection, ensure production safety.
Operation; One button operation
Protection: Multi safety protection
1. Achieve zero speed and torque brake servomotor.
2. Cylinder to push the friction plate to produce mechanical brake for the fly-wheel.
3. Slider will stop at once when power supply is anomaly.
4.Infrared safety raster form a safety screen, to ensure the safety of the personnel in the process of production.
2. Cylinder to push the friction plate to produce mechanical brake for the fly-wheel.
3. Slider will stop at once when power supply is anomaly.
4.Infrared safety raster form a safety screen, to ensure the safety of the personnel in the process of production.
Maintenance: Auto lubrication system
Using program controlled grease lubrication system, completely free maintenance, improve the usage life of equipment and reduce production costs.

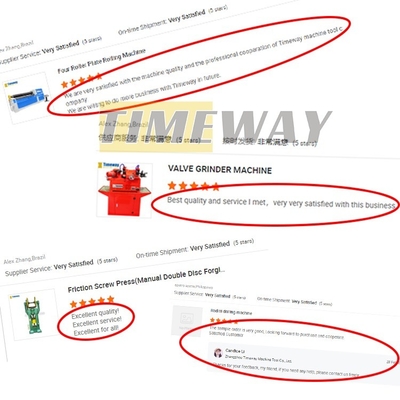

Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile

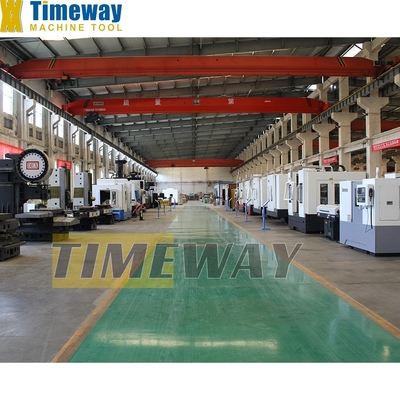

Factory Display：
