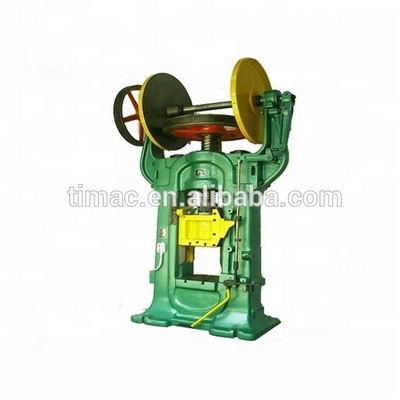

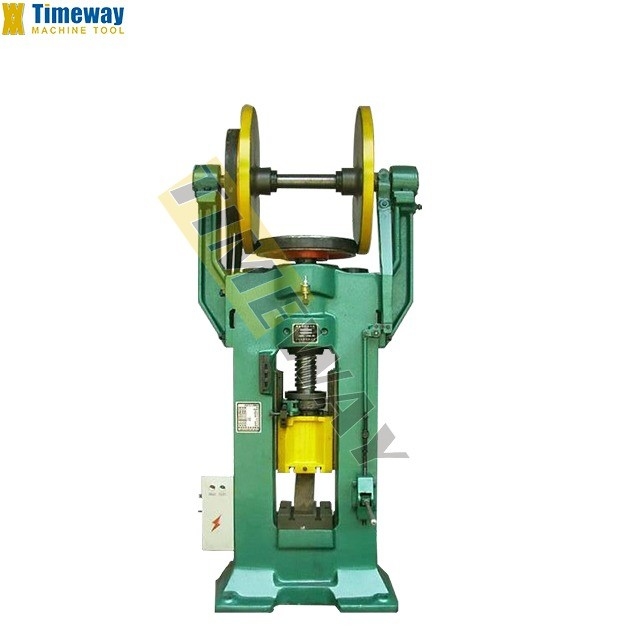

Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets 1-2 sets |
| Packaging Details: | Soft package or According to customer's require |
| Supply Ability: | 700 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Friction Screw Press |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2019 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Gearbox, Motor | Voltage: | 3 Phase 380V 10%/50-60Hz |
| Power: | 11 Kw | Dimension(L*W*H): | 1465x2240x3730 Mm |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Showroom Location: | Italy, France, Brazil, Peru, Indonesia, India, Mexico, Russia, Thailand, Chile, South Africa | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Weight (KG): | 2490 | Control Type: | Pedal Control |
| Nominal Capacity: | 1600KN | Slide Stroke: | 360mm |
| Number Of Strokes Per Minute: | 17 | Worktable Size: | 560*510mm |
| Space For Installing Die: | 260mm | Machine Type: | Normal Friction Screw Press |
| After Warranty Service: | Field Maintenance And Repair Service | Weight: | 8186 Kg |
| Port: | China Port | ||
Product Description
Products Description
The series friction screw press is suitable for die forging, extruding, cutting edge, bending of nonferrous and ferrous metal.
The press, with simple in constructure, large energy, low noise, long life, safe and reliable in operation, convenient service etc.
The machine tool can be widely used in aviation, auto, tractor, tool manufacturing, texitile machinery industries etc. Among them, model JA-53-300 has won the silver medal in china.
The press, with simple in constructure, large energy, low noise, long life, safe and reliable in operation, convenient service etc.
The machine tool can be widely used in aviation, auto, tractor, tool manufacturing, texitile machinery industries etc. Among them, model JA-53-300 has won the silver medal in china.
Specification | Unit | FSP-63 | FSP-100 | FSP-160 | FSP-300 |
Nominal capacity | KN | 630 | 1000 | 1600 | 3000 |
Energy | KJ | 2.25 | 5 | 10 | 20 |
Slide stroke | mm | 200 | 310 | 360 | 400 |
Strokes per minute | Min-1 | 35 | 19 | 17 | 15 |
Space for installing die | mm | 235 | 220 | 260 | 300 |

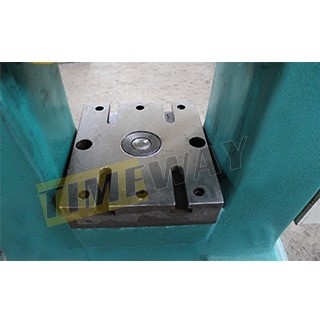

Bed dimension | mm | 315x270 | 500x450 | 560x510 | 650x570 |
Bottom of slide | mm | 275x227 | 390x280 | 440x444 | 520x485 |
Overall dimensions | mm | 1010x1141x2655 | 1393x1884x3375 | 1465x2240x3730 | 1820x2581x4345 |
Main motor power | kw | 5.5 | 7.5 | 11 | 22 |
Total weight | kw | 3572 | 5780 | 8186 | 14800 |
