Two Piece Pneumatic Forging Power Hammer for Versatile Forging Applications
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $19,000.00/sets 1-2 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Pneumatic Hammer |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2019 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Bearing, Motor, Pressure Vessel | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Showroom Location: | Brazil, Saudi Arabia |
| Applicable Industries: | Manufacturing Plant | Pneumatic Hammer: | Pneumatic Hammer |
| After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support | After Warranty Service: | Video Technical Support, Online Support, Field Maintenance And Repair Service |
| Local Service Location: | France, Germany | Weight: | 2000kg |
| Port: | China Port | ||
Product Description

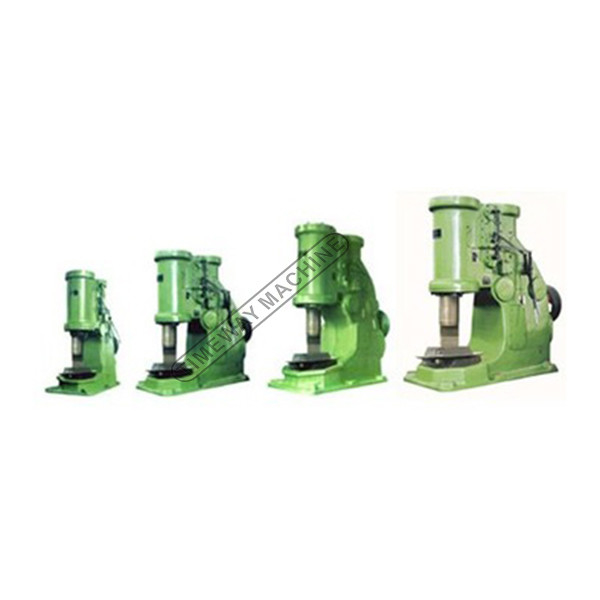

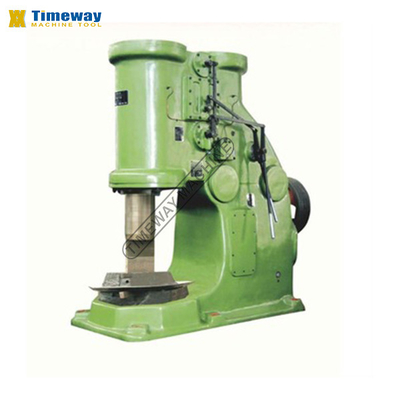

Two Piece Pneumatic Forging Hammer
Applications:
This pneumatic forging hammer is widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forging, welding, bending and twisting. It is also used for forging in bolster dies.
Features:
*Ready operation: economic and convenient
*Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions—idle run, top setting, pressing down, single blow, light or full series blow can be obtained as desired
*A special oil-pump is provided for lubricating the cylinders. Prior to running, turn the hand-crank of the pump to get the cylinders being lubricated beforehand.
The main technical parameter two pieces pneumatic forging hammer:
| Model | AH-150 | AH-250 | AH-400 | AH-560 | AH-750 | AH-1000 | AH-2000 | |
| Weight of falling parts (kg) ) | 150 | 250 | 400 | 560 | 750 | 1000 | 2000 | |
| Maximum hit energy(kj) | 2.5 | 5.6 | 9.5 | 13.7 | 19 | 27 | 54 | |
| Hit number(min-1) | 180 | 140 | 120 | 115 | 105 | 95 | 80 | |
| Heigh of working area (mm) | 370 | 450 | 530 | 600 | 670 | 800 | 1000 | |
| Tup axis to frame front (mm) | 350 | 420 | 520 | 550 | 750 | 770 | 950 | |
| Dimension of top die surface(L x W) (mm) | 200x85 | 220x100 | 250x120 | 300x140 | 330x160 | 365x180 | 400x300 | |
| Dimension of bottom die surface(L x W) (mm) | 200x85 | 220x100 | 250x120 | 300x140 | 330x160 | 365x180 | 400x300 | |
| Forges | Square(mmxmm) | 130x130 | 145x145 | 220x220 | 270x270 | 270x270 | 290x290 | 350x350 |
| Round(mm) | Φ145 | Φ175 | Φ240 | Φ280 | Φ300 | Φ320 | Φ400 | |
| Motor | Type | Y180M-4-B3 | Y180L-4-B3 | Y200L-4-B3 | Y280S-6-B3 | Y280M-6-B3 | Y315S-6-B3 | Y315L2-6-B3 |
| Power(kw) | 18.5 | 22 | 30 | 45 | 55 | 75 | 132 | |
| Weight | Hammer(kg) | 3260 | 5000 | 8000 | 9800 | 17000 | 20000 | 48000 |
| Anvil block(kg) | 1500 | 2500 | 4800 | 6720 | 9000 | 13000 | 24000 | |
| Outside Size | 2390x1085x2150 | 2639x1155x2540 | 2785x1400x2884 | 3464x1500x3157 | 3905x1370x3175 | 4125x1500x3770 | 4200x2300x4390 | |
