Building Material Shops Upgrade Your Production with Wire Cutting EDM
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE & ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $89,800.00/sets 1-2 sets |
| Packaging Details: | in wooden case (can be fumigated) or as your request |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Machine Type: | Wire EDM | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Bearing, Motor |
| Voltage: | As Customer's Request | Dimension(L*W*H): | 1490*1200*1530mm |
| Weight (KG): | 1600 | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Applicable Industries: | Food & Beverage Shops, Building Material Shops, Machinery Repair Shops, Food Shop, Printing Shops, Energy & Mining |
| Showroom Location: | Canada, United States, Italy, Germany | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Field Maintenance And Repair Service, Online Support |
| Color: | Customized | Product Name: | EDM Wire Cutting Machine |
| Power: | Depends On Different Models | Weight: | 1600kg |
| After Warranty Service: | Online Support, Field Maintenance And Repair Service | Local Service Location: | Canada, United States, Italy, Germany |
| Port: | China Port | ||
Product Description

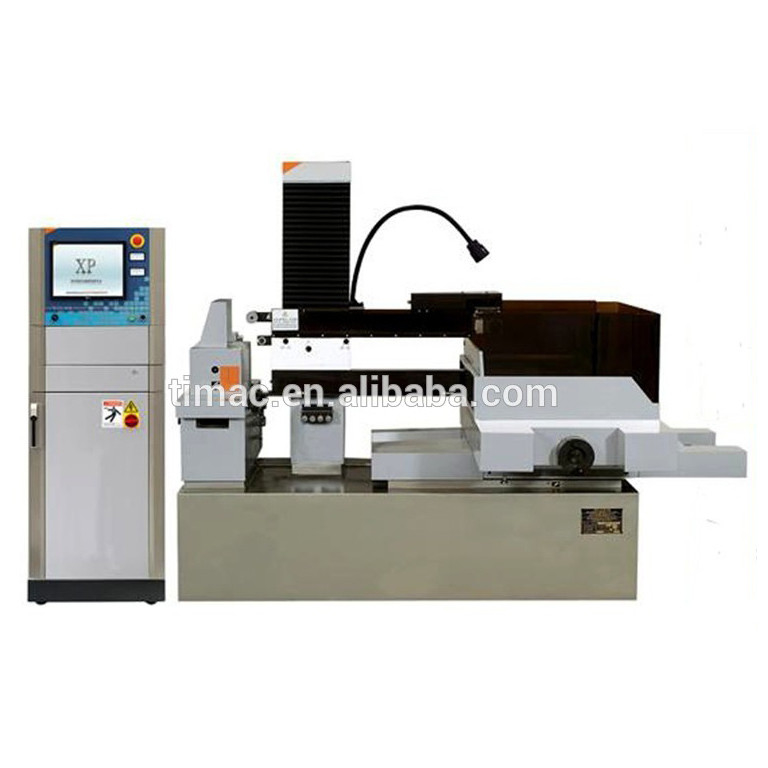

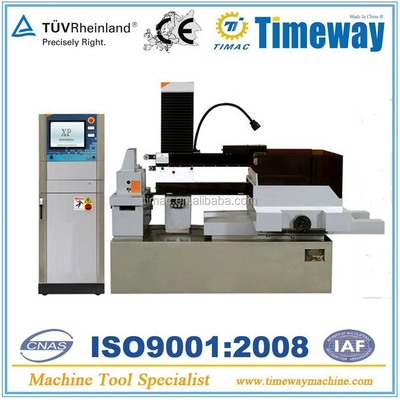

Wire Cutting EDM, EDM Wire Cutting Machine Price
Features:
*Taper cutting mechanism is driven by two step-motors to realize U and V movement,which can make
the 4 axis (X, Y, U, V) simultaneously movement.
*Work table with T-slots, we supply a standard clamp for free.
*Machine body adopt the base of meehanite cast iron (HT250).
*Adopt steel linear guideway and precision ball screw.
Parameter:
| Specification | Unit | DK-250 | DK-320 | DK-400 | DK-500 | DK-630 | DK-700 |
| Travel of worktable | mm | 250×320 | 320×400 | 400×500 | 500×630 | 630×800 | 700×1000 |
| Size of worktable | mm | 380×525 | 415×635 | 500×785 | 600×900 | 660×1100 | 760×1400 |
| Cutting depth(optional) | mm | 300/500 | 300/500 | 300/500 | 500 | 500/800 | 500/800 |
| Taper (optional) | º | 0° / 3° /6° /30° /60° | |||||
| Roughness | μm | Ra (once cutting) ≤ 2.5, Ra (Multi-cutting) ≤ 1.5 | |||||
| Precision | mm | ≤ 0.015 | |||||
| Max.cutting speed | mm2/min | 150 | |||||
| Diameter of moly wire | mm | 0.15~0.2 | |||||
| Max. working current | A | 6 | |||||
| Output voltage | V | AC~,3N, 220-415V,50/60HZ | |||||
| Type of coolant |
| BM2/BM4 Water Base Working solution | |||||
| Working liquid capacity | L | 56 | |||||
| Programme standard |
| Windows XP | |||||
| Screw & guideway |
| Precision ball screw , | High quality ball screw, | ||||
| Load of table | KG | 300 | 400 | 500 | 800 | 3000 | 5000 |
| Weight of machine | KG | 1600 | 1700 | 2000 | 2300 | 4500 | 6000 |
| Dimension (L×W×H) | cm | 149×120×153 | 149×120×153 | 171×146×173 | 191×155×183 | 213×183×185 | 250×245×197 |
| Packing size(L×W×H) | cm | 180×140×200 | 180×140×200 | 193×160×190 | 212×180×225 | 245×210×200 | 270×265×225 |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
