Max. thickness of workpiece 800 mm High Precision Speed EDM Wire Cut CNC Wire With PC Control
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $19,800.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | CNC | Condition: | New |
|---|---|---|---|
| Machine Type: | Wire EDM, EDM Wire Cut | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Motor, Pump |
| Voltage: | 220/380V | Dimension(L*W*H): | 384x398x230 Cm |
| Weight (KG): | 9000 | Power (kW): | 2.2 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Canada, Philippines, Brazil, Peru, Indonesia, Russia, Thailand, Argentina, Colombia, South Africa |
| Keyword: | CNC EDM Wire Cut | Model: | DK-1200Z |
| Table Size (WxL): | 1320x2050 Mm | Table Travel (X/Y): | 1200x1600 Mm |
| Loading Capacity: | 4000 Kg | Max. Thickness Of Workpiece: | 800 Mm |
| Taper Angle/thickness: | ±5°/60 | Guideway Type: | Steel Rolling Guide |
| Machine Weight: | 9000 Kg | ||
Product Description
Products Description

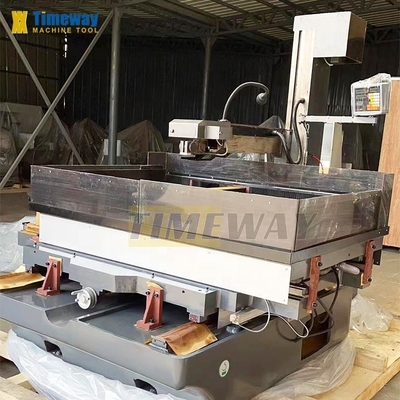

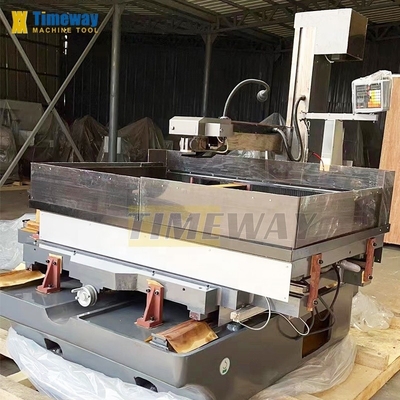

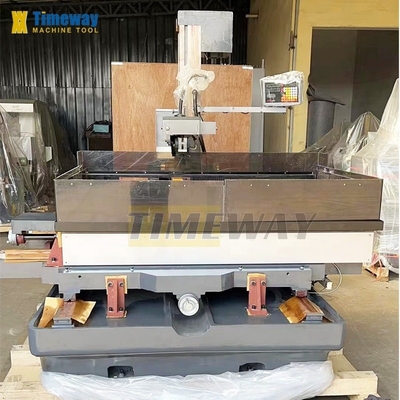

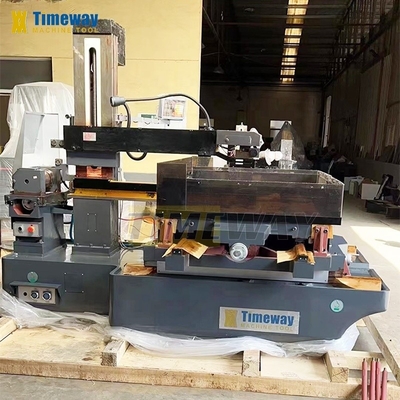

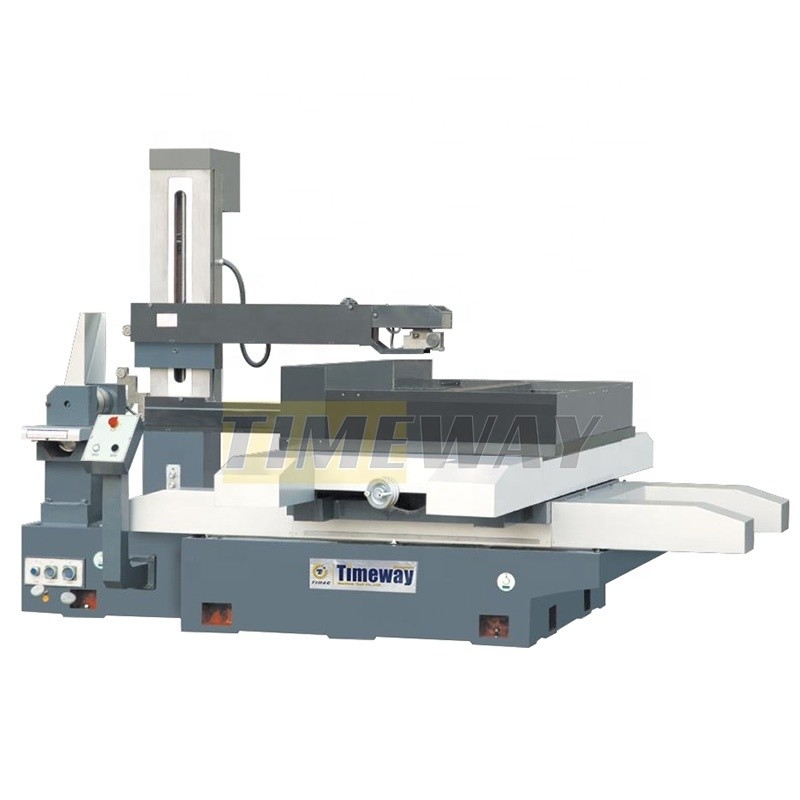

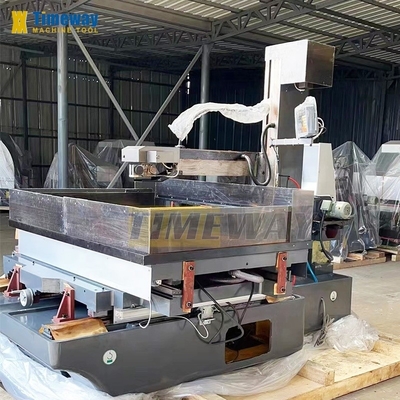

High Speed EDM Wire Cut Machine DK-1200Z
Specification | Unit | DK-1200Z |
Table size (WxL) | mm | 1320x2050 |
Table travel (X/Y) | mm | 1200x1600 |
U/V-axis travel | mm | 70x70 |
Loading capacity | kg | 4000 |
Max. thickness of workpiece | mm | 800 |
Taper angle/thickness | °/mm | ±5°/60 |
Z-axis lifting type | - | motorized lifting |
Guideway type | - | steel rolling guide |
Wire cylinder travel | mm | 200 |
Molybdenum wire diameter | mm | φ0.15～φ0.20 (recommend: φ0.18) |
Wire feed speed | m/s | 1～11.4, 2steps (stepless) |
Working accuracy | mm | ≤0.012 |
Max. machining speed | mm 2 /min | ≥250 |
Surface roughness | - | One: Ra≤2.5, Two: Ra≤1.8 |
Motor type | - | X/Y/U/V-axis: stepper motor drive |
Axis controlled | - | 4-axis linkage |
Min. feed unit | mm | 0.001 |
Power supply | - | 3PH-380V/50Hz |
Max. working current | A | 9 |
Total power | kw | 2.2(stepper); 6(mixing） |
Working liquid | - | DIC |
Tank capacity | L | 75 |
Filtering type | - | filter screen |
Machine noise | db | ≤70 |
Machine weight | kg | 9000 |
Machine dimensions (LxWxH) | cm | 384x398x230 |
* Machine host * Waterproof cover * Work Lamp * Filter system * Control cabinet * Machine electrical * Hexagonal wrench * Motion timing belt * Fixture * Scissors * Oil gun * Guide wheel * Mechanical hand * Wooden screwdriver * Molybdenum wire corrector * Operation manual（English） | * Electric lift * Grating ruler |
