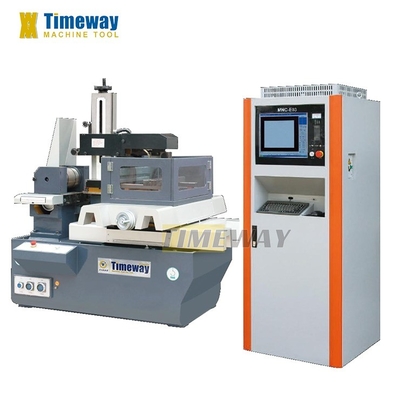

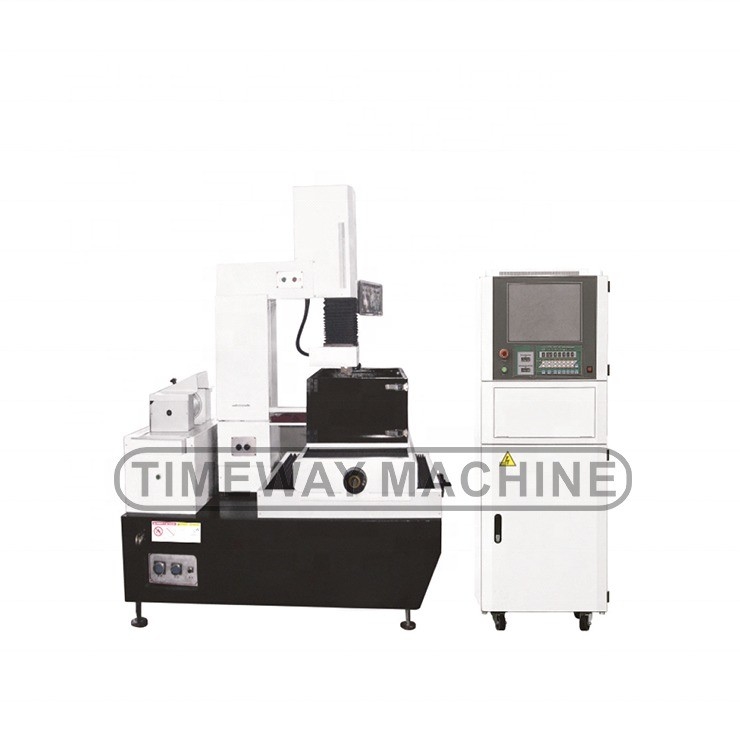

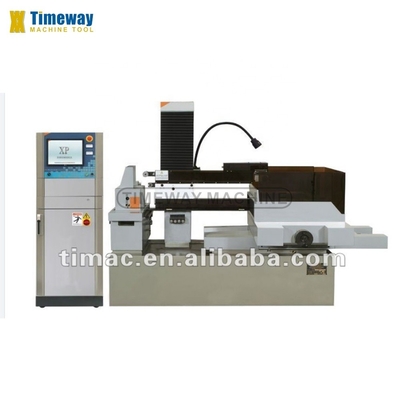

400kg Load of Table Precision Wire Cut EDM for High Precision Jobs ≤0.015mm Precision
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets 1-2 sets |
| Packaging Details: | Wooden caces ( can be fumigated) |
| Supply Ability: | 60 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | CNC | Condition: | New |
|---|---|---|---|
| Machine Type: | Wire EDM | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Bearing, Gearbox, Motor, Gear |
| Voltage: | As Customer's Request | Weight (KG): | 1700 |
| Warranty: | 1 Year After Delivery | Key Selling Points: | Multifunctional |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Hotels, Energy & Mining | Showroom Location: | Canada, United States, Italy, Germany, South Africa |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Work Table Travel: | 320x400mm |
| Work Table Size: | 415x635mm | Taper (optional): | 0° /6° /30° /60° |
| Precision: | ≤0.015mm | Load Of Table: | 400kg |
| Port: | FOB China | ||
Product Description
Products Description
* The cast of machine body adopt the resin-sand technology with the influence of high temperature annealing.
* The travel parts of the machine adopt high quality ball screw and linear guide way.

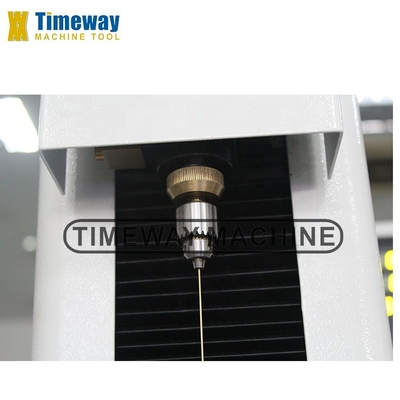

* The structure of wire frame adopt the symmetric structure for the up and down frame
* The cast of machine body adopt the resin-sand technology with the influence of high temperature annealing.
* The travel parts of the machine adopt high quality ball screw and linear guide way.
* The structure of wire frame adopt the symmetric structure for the up and down frame to keep the tension of moly-wire within the scope of normal tension.
* Data exchange and remote control is realizable under the powerful network function of XP system.
* The system has the function of pitch correct, which can improve the position accuracy effectively.
* The wire moving is controlled by transducer, which adopts unlimited adjustment.
* The processing components involve godet mechanism, the best roughness Ra=1.5μm.
* The cooling system is equipped with a large water tank with three levels filtration.
* The travel parts of the machine adopt high quality ball screw and linear guide way.
* The structure of wire frame adopt the symmetric structure for the up and down frame
* The cast of machine body adopt the resin-sand technology with the influence of high temperature annealing.
* The travel parts of the machine adopt high quality ball screw and linear guide way.
* The structure of wire frame adopt the symmetric structure for the up and down frame to keep the tension of moly-wire within the scope of normal tension.
* Data exchange and remote control is realizable under the powerful network function of XP system.
* The system has the function of pitch correct, which can improve the position accuracy effectively.
* The wire moving is controlled by transducer, which adopts unlimited adjustment.
* The processing components involve godet mechanism, the best roughness Ra=1.5μm.
* The cooling system is equipped with a large water tank with three levels filtration.
Specification | Unit | DK-250 | DK-320 | DK-400 | DK-500 | DK-630 | DK-700 | DK-800 | ||||||
Work table travel | mm | 250x320 | 320x400 | 400x500 | 500x630 | 630x800 | 700x1000 | 800x1000 | ||||||
Work table size | mm | 380x525 | 415x635 | 500x785 | 600x900 | 660x1100 | 760x1400 | 820x1400 | ||||||
Cutting depth (optional) | mm | 300/500 | 300/500 | 500 | 500 | 500/800 | 500/800 | 500/800 | ||||||
Taper (optional) | 0° /6° /30° /60° | |||||||||||||
Roughness | μm | Ra(once cutting)≤2.5, Ra(Multi-cutting)≤1,5 | ||||||||||||
Precision | mm | ≤0.015 | ||||||||||||
Screw & guideway (optional) | Precision ball screw , precision steel plated/linear guideway | High quality ball screw, Steel linear guideway | ||||||||||||
Load of table | kg | 300 | 400 | 500 | 800 | 3000 | 5000 | 5000 | ||||||
Machine weight | kg | 1600 | 1700 | 2000 | 2300 | 4500 | 6000 | 6700 | ||||||
Machine model | ||||||||||||||||||
Item | A | B | C | D | E | F | G | H | I | |||||||||
Max. workpiece thickness(mm) | 300 | 500 | 300 | 500 | 300 | 500 | 300 | 500 | 1000 | |||||||||
Max. taper angle (within 100mm thick) | 0° | 0° | ±3° | ±3° | ±30° | ±30° | ±15° | ±15° | ±3° | |||||||||
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
