Manual Double Disc Forging 200mm Slide Stroke Friction Screw Press at 101*1141*2655mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets 1-1 sets |
| Packaging Details: | Soft package or According to customer's require |
| Supply Ability: | 700 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Friction Screw Press |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Gearbox, Motor, Pump | Voltage: | 3 Phase 380V 10%/50-60Hz |
| Power: | 5.5kw | Dimension(L*W*H): | 101*1141*2655mm |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Showroom Location: | Peru | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Color: | According To Customer's Require |
| Control Type: | Manual | Nominal Capacity: | 630KN |
| Slide Stroke: | 200mm | Number Of Strokes Per Minute: | 35 |
| Worktable Size: | 315*270mm | Space For Installing Die: | 235mm |
| Machine Type: | Normal Friction Screw Press | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Peru | Weight: | 2490kg |
| Port: | China Port | ||
Product Description

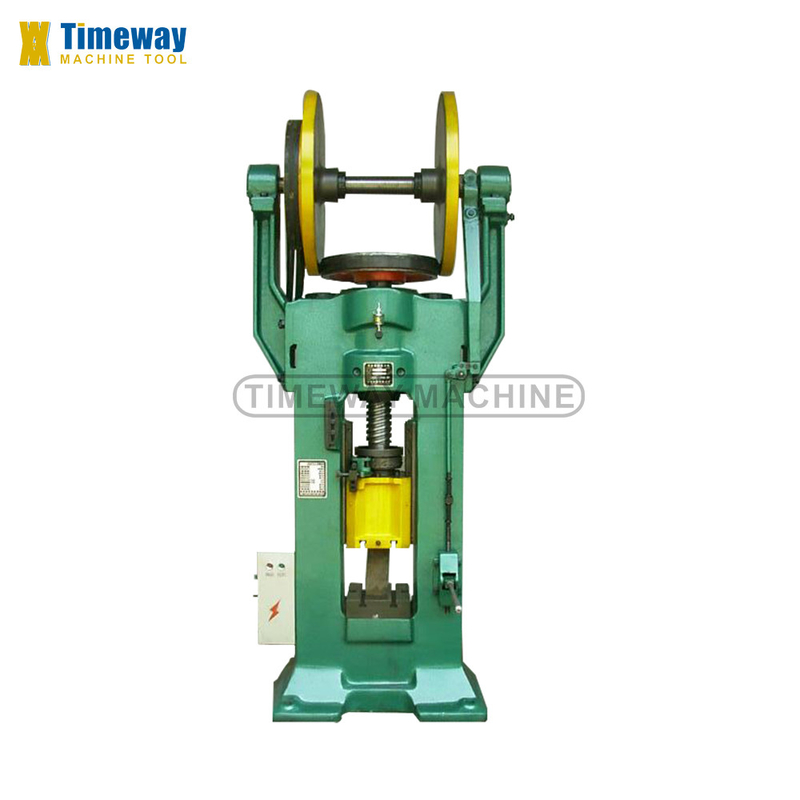

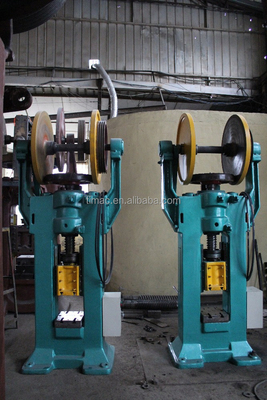

Manual Double Disc Friction Screw Press
FSP-63 FSP Series
Performance and Feature
- The series friction screw press is suitable for die forging, extruding, cutting edge, bending of nonferrous and ferrous metal.
- The press, with simple in constructure, large energy, low noise, long life, safe and reliable in operation, convenient service etc.
- The machine tool can be widely used in aviation, auto, tractor, tool manufacturing, texitile machinery industries etc. Among them, model JA-53-300 has won the silver medal in china.
| Model | Nominal capacity KN | Energy KJ | Slide stroke mm | Strokes per minute Min-1 | Space for installing die mm | Bed dimension mm | Bottom of slide mm | Overall dimensions mm | Main motor power kw | Total weight kg |
| FSP-63 | 630 | 2.25 | 200 | 35 | 235 | 315*270 | 275*227 | 1010*1141*2655 | 5.5 | 2490 |
| FSP-100 | 1000 | 5 | 310 | 19 | 220 | 500*450 | 390*280 | 1393*1884*3375 | 7.5 | 5743 |
| FSP-160 | 1600 | 10 | 360 | 17 | 260 | 560*510 | 440*444 | 1465*2240*3730 | 11 | 8186 |
| FSP-300 | 3000 | 20 | 400 | 15 | 300 | 650*570 | 520*485 | 1820*2581*4345 | 22 | 13921 |
| FSP-400 | 4000 | 40 | 500 | 14 | 400 | 820*730 | 636*636 | 3200*2812*5165 | 30 | 22000 |
| FSP-630 | 6300 | 80 | 600 | 11 | 470 | 920*820 | 760*700 | 4694*4320*6060 | 55 | 38513 |
| FSP-1000C | 10000 | 160 | 700 | 10 | 500 | 1200*1000 | 1190*800 | 4400*6062*7290 | 90 | 82000 |
| FSP-1000K | 10000 | 160 | 700 | 10 | 500 | 1200*1000 | 1190*800 | 4400*5240*7300 | 90 | 76155 |
| FSP-1600C | 16000 | 280 | 700 | 10 | 550 | 1250*1100 | 1000*900 | 4700*6120*8090 | 132 | 103386 |
| FSP-1600D | 16000 | 280 | 700 | 10 | 550 | 1250*1100 | 1000*900 | 4700*6120*8090 | 75*2 | 104850 |
| FSP-2500E | 25000 | 500 | 800 | 9 | 680 | 1560*1200 | 1560*1060 | 5360*7000*8190 | 110*2 | 213000 |
| FSP-3150A | 31500 | 700 | 800 | 9 | 800 | 2000*1300 | 1900*1110 | 7000*5400*10210 | 160*2 | 350000 |
| FSP-4000 | 40000 | 850 | 800 | 9 | 800 | 2350*1300 | 2200*1110 | 7961*5580*10210 | 185*2 | 380000 |
| FSP-6300 | 63000 | 1000 | 800 | 9 | 800 | 2350*1300 | 2200*1110 | 8366*5780*10490 | 185*2 | 420000 |
| FSP-8000 | 80000 | 1150 | 800 | 8 | 800 | 2350*1300 | 2200*1110 | 8366*5780*10490 | 185*2 | 450000 |
| FSP-10000 | 100000 | 1650 | 800 | 8 | 900 | 2600*1600 | 2500*1440 | 9410*6400*12750 | 280*2 | 600000 |

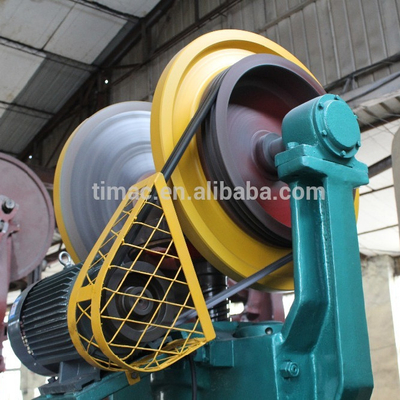

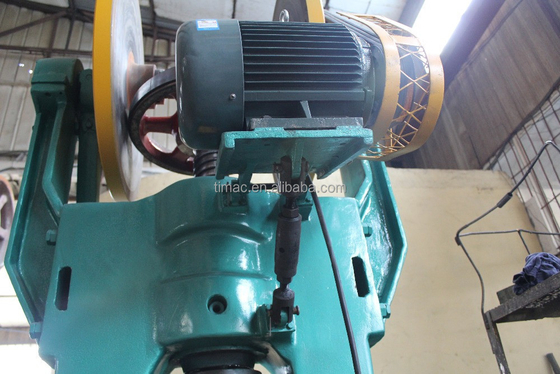

The machine tool adopts China famous brand 3Phase main motor, driving double disc transfer power to screw, then realize slide up and down moving. The base of motor is adjustable, low noise, running stable. As well as equipped with protection guard.

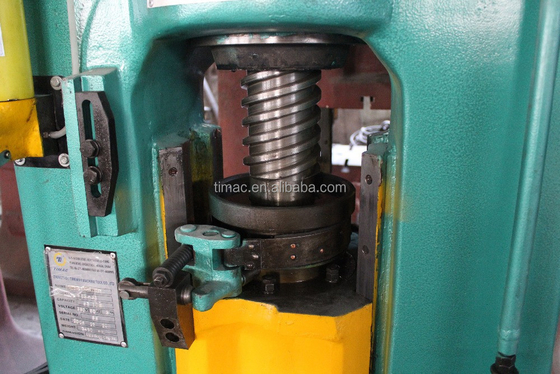

Slide and Screw
The press uses the connection of precision screw and copper nut, it has good performance, wear-resisting, long service life, etc, the handle operates flexible, equipped with mechanical brake device.
Worktable with knock-out device and Electrical box(380V/50HZ or according to customer's require)
Standard Operation instruction in English and Brand of Timeway

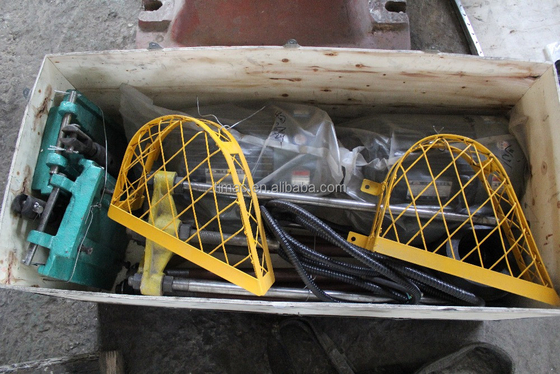

Standard accessories and easy-wear parts. Accessory case and Soft package of the machine tool, if you have special need, we can provide other accessories and package.
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
