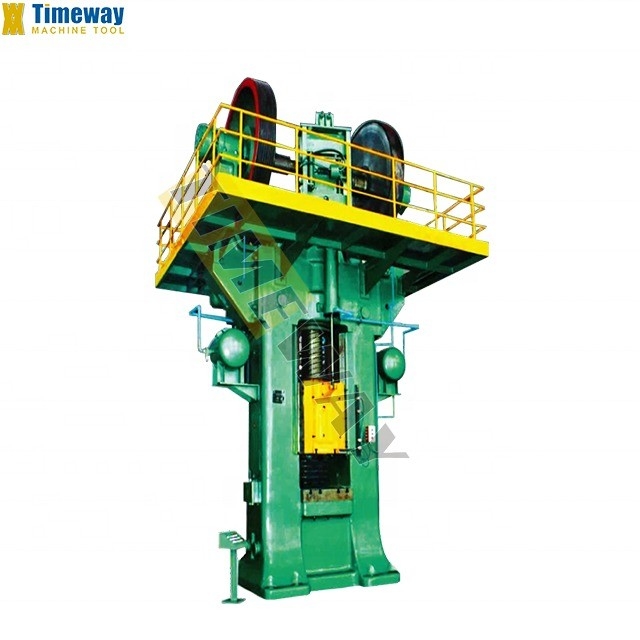

600mm Slide Stroke Pneumatic Friction Screw Forging Press for Various Applications
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $50,000.00/sets 1-2 sets |
| Packaging Details: | Soft package or According to customer's require |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Pneumatic Press |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2019 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Gearbox, Motor, Pressure Vessel | Voltage: | 3 Phase 380V 10%/50-60Hz |
| Power: | 55kw | Dimension(L*W*H): | 4694x4320x6060mm |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Showroom Location: | Peru, India, Mexico, Thailand, Colombia, Algeria, Sri Lanka | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Weight (KG): | 22000 | Nominal Capacity: | 6300 KN |
| Slide Stroke: | 600 Mm | Number Of Strokes Per Minute: | 11 |
| Worktable Size: | 920x820 Mm | Space For Installing Die: | 470mm |
| After Warranty Service: | Online Support | Local Service Location: | Colombia |
| Weight: | 38513 Kg | Energy: | 40 KJ |
| Port: | China Port | ||
Product Description
Products Description
The series friction screw press is suitable for die forging, extruding, cutting edge, bending of nonferrous and ferrous metal.
The press, with simple in constructure, large energy, low noise, long life, safe and reliable in operation, convenient service etc.
The machine tool can be widely used in aviation, auto, tractor, tool manufacturing, texitile machinery industries etc. Among them,
model JA-53-300 has won the silver medal in china.
The press, with simple in constructure, large energy, low noise, long life, safe and reliable in operation, convenient service etc.
The machine tool can be widely used in aviation, auto, tractor, tool manufacturing, texitile machinery industries etc. Among them,
model JA-53-300 has won the silver medal in china.
Specification | Unit | FSP-400 | FSP-630 | FSP-1000C | FSP-1000F |
Nominal capacity | KN | 4000 | 6300 | 10000 | 10000 |
Energy | KJ | 40 | 80 | 160 | 160 |
Slide stroke | mm | 500 | 600 | 700 | 700 |
Strokes per minute | Min-1 | 1114 | 11 | 10 | 10 |
Space for installing die | mm | 400 | 470 | 500 | 500 |
Bed dimension | mm | 820x730 | 920x820 | 1200x1000 | 1200x1000 |
Bottom of slide | mm | 636x636 | 760x700 | 1190x800 | 1190x800 |
Overall dimensions | mm | 3200x2812x5165 | 4694x4320x6060 | 4400x6062x7290 | 4400x5240x7300 |
Main motor power | kw | 30 | 55 | 90 | 90 |
Total weight | kw | 22000 | 38513 | 82000 | 76155 |
