Customizable Friction Screw Press for Standard Manufacturing Standards
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,000.00/sets 1-2 sets |
| Packaging Details: | Pallet |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Screw Press |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Voltage: | As Require |
| Power: | 7500 | Warranty: | 1year |
| Key Selling Points: | Competitive Price | Showroom Location: | Peru, Kenya, South Korea, Chile, Algeria |
| Applicable Industries: | Manufacturing Plant | Weight (KG): | 1580 |
| Friction Press: | Friction Press | After Warranty Service: | Field Maintenance And Repair Service |
| Weight: | 5000 | Type: | Standard |
| COLOR: | Standard Color | Port: | China Port |
Product Description

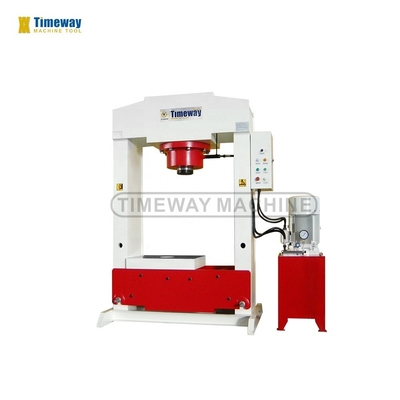

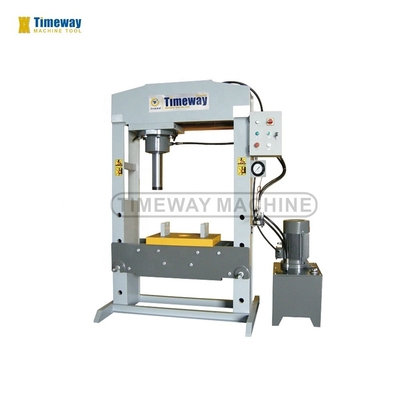

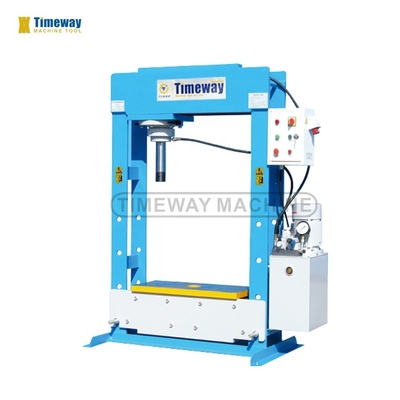

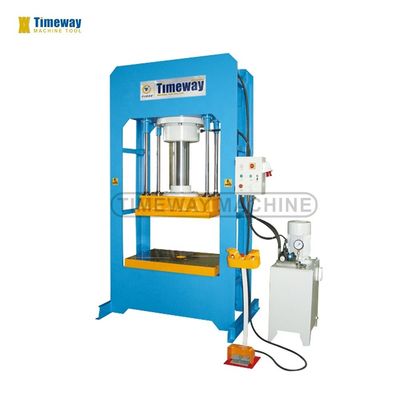

HYDRAULIC PRESS
Features:
1. It adopts elaborated steel-frame structure, a column with work bench beam, a sliding rail and a rear protective net.
2. The good quality of the products is based on exquisite manufacturing process and durable parts and components.
3. Its double-action cylinder, which is the original component of some sound hydraulic systems, can stand war and tear.
4. It is equipped with an electrical starter and a manual controlled piston rod moving upward and downward.
5. The lower workbench beam is equipped with a set of specialized sling and sliding rail, which is labor saving, safe and convenient.
6. The oil cylinder can be moved by manual power and its head can be positioned arbitrarily, which is very convenient and efficient.
| MODEL | Unit | MDY30 | MDY63 | MDYY80 | MDY100 | MDY150 | MDY200 | MDYY00 |
| Max. pressure | KN | 300 | 630 | 800 | 1000 | 1500 | 2000 | 3000 |
| Hydraulic pressure | Mpa | 25 | 30 | 30 | 30 | 30 | 30 | 28.5 |
| Stroke of cylinder rod | mm | 250 | 300 | 300 | 350 | 350 | 350 | 350 |
| Working speed | mm/s | 5/h6 | 5.8/h7.7 | 4.6/h10.5 | 7.6/h10.5 | 4.9/h6.7 | 3.9/h6.7 | 5.9/h8.5 |
| Size of worktable | mm | 500x320 | 890x400 | 890x415 | 850x447 | 1000x530 | 1000x550 | 1000x660 |
| Inner hole of worktable | mm | Φ100 | Φ120 | Φ120 | Φ120 | Φ180 | Φ180 | Φ180 |
| Adjustment distance of worktable | mm | 200x4 | 250x3 | 250x3 | 250x3 | 300x2 | 300x2 | 300x2 |
| Distance between two columns | mm | 700 | 1050 | 1050 | 1050 | 1250 | 1250 | 1250 |
| Max. distance from cylinder to worktable | mm | 1020 | 967 | 962 | 994 | 839 | 737 | 832 |
| Min. distance from worktable to ground | mm | 305 | 444 | 469 | 514 | 590 | 631 | 801 |
| Cylinder moving distance | mm | 338 | 635 | 580 | 600 | 730 | 690 | 600 |
| Motor power | kw | 1.5 | 4 | 4 | 7.5 | 7.5 | 7.5 | 22 |
| Machine weight | kg | 445 | 1050 | 1325 | 1580 | 2410 | 3105 | 4200 |
| Machine size | cm | 99x68x183 | 148x90x203 | 149x95x207 | 145x100x220 | 172x105x220 | 180x110x220 | 195x120x257 |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
