Normal System Hand/Foot Operated Hydraulic Press for Versatile Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |

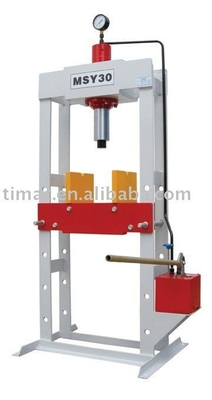

| Model Number: | MSY10, MSY20, MSY30, MJY20, MJY30, MJY50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,000.00/sets 1-2 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Machine Type: | Small Hydraulic Press | Return Force (kN): | 300 KN |
|---|---|---|---|
| System: | Normal | Condition: | New |
| Dimension(L*W*H): | 148x90x203 | Weight (T): | 1.05 T |
| Motor Power (kw): | 4 Kw | Key Selling Points: | Competitive Price |
| Warranty: | 1 Year | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | Turkey, Italy, France | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, Pressure Vessel |
| CNC Or Not: | Normal | Hand/Foot Operated Hydraulic Press: | Hand/Foot Operated Hydraulic Press |
| Power Source: | Power, Electric, Hydraulic | Nominal Force (kN): | 300 |
| After-sales Service Provided: | Online Support | After Warranty Service: | Online Support |
| Local Service Location: | Brazil, Peru | Port: | China Port |
Product Description

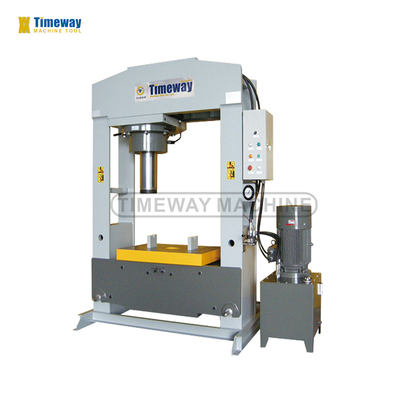

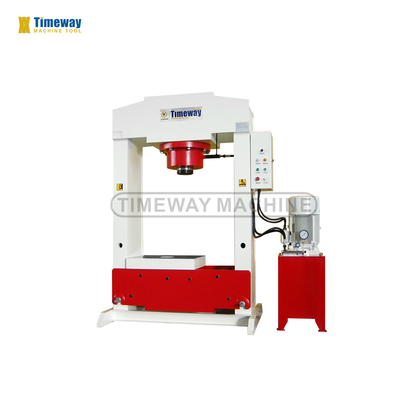

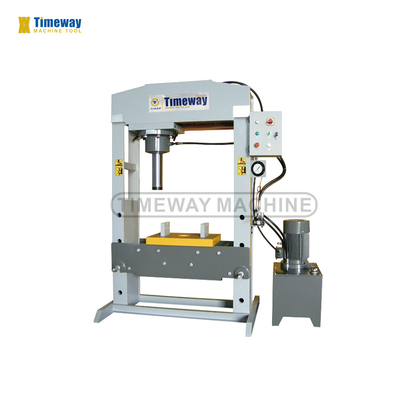

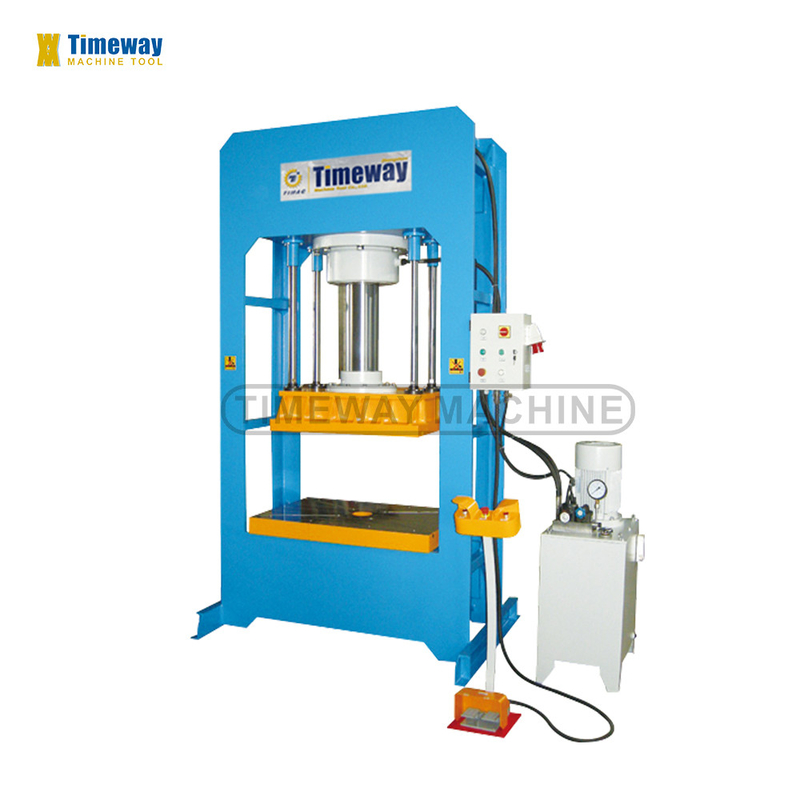

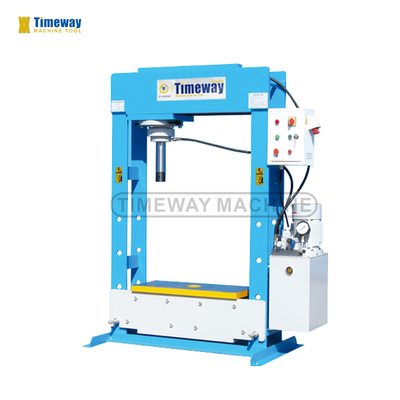

HYDRAULIC PRESS
Features:
1. It adopts elaborated steel-frame structure, a column with work bench beam, a sliding rail and a rear protective net.
2. The good quality of the products is based on exquisite manufacturing process and durable parts and components.
3. Its double-action cylinder, which is the original component of some sound hydraulic systems, can stand war and tear.
4. It is equipped with an electrical starter and a manual controlled piston rod moving upward and downward.
5. The lower workbench beam is equipped with a set of specialized sling and sliding rail, which is labor saving, safe and convenient.
6. The oil cylinder can be moved by manual power and its head can be positioned arbitrarily, which is very convenient and efficient.
| MODEL | Unit | MDYY30 | MDYY63 | MDYY80 | MDYY100 | MDYY150 | MDYY200 | MDYY300 |
| Max. pressure | KN | 300 | 630 | 800 | 1000 | 1500 | 2000 | 3000 |
| Hydraulic pressure | Mpa | 25 | 30 | 30 | 30 | 30 | 30 | 28.5 |
| Stroke of cylinder rod | mm | 250 | 300 | 300 | 350 | 350 | 350 | 350 |
| Working speed | mm/s | 5/h6 | 5.8/h7.7 | 4.6/h10.5 | 7.6/h10.5 | 4.9/h6.7 | 3.9/h6.7 | 5.9/h8.5 |
| Size of worktable | mm | 500x320 | 890x400 | 890x415 | 850x447 | 1000x530 | 1000x550 | 1000x660 |
| Inner hole of worktable | mm | Φ100 | Φ120 | Φ120 | Φ120 | Φ180 | Φ180 | Φ180 |
| Adjustment distance of worktable | mm | 200x4 | 250x3 | 250x3 | 250x3 | 300x2 | 300x2 | 300x2 |
| Distance between two columns | mm | 700 | 1050 | 1050 | 1050 | 1250 | 1250 | 1250 |
| Max. distance from cylinder to worktable | mm | 1020 | 967 | 962 | 994 | 839 | 737 | 832 |
| Min. distance from worktable to ground | mm | 305 | 444 | 469 | 514 | 590 | 631 | 801 |
| Cylinder moving distance | mm | 338 | 635 | 580 | 600 | 730 | 690 | 600 |
| Motor power | kw | 1.5 | 4 | 4 | 7.5 | 7.5 | 7.5 | 22 |
| Machine weight | kg | 445 | 1050 | 1325 | 1580 | 2410 | 3105 | 4200 |
| Machine size | cm | 99x68x183 | 148x90x203 | 149x95x207 | 145x100x220 | 172x105x220 | 180x110x220 | 195x120x257 |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
