25 mpa Pressure Open Side C Type Hydraulic Press for Manufacturing Process
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | HP-20C, HP-30C, HP-50C, HP-63C, HP-100C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,000.00/sets 1-2 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Machine Type: | Small Hydraulic Press, Hydraulic Press | Return Force (kN): | 200 KN |
|---|---|---|---|
| System: | Normal | Condition: | New |
| Dimension(L*W*H): | 800x600x1500 Mm | Weight (T): | 0.46 T |
| Motor Power (kw): | 2.2 Kw | Key Selling Points: | High-accuracy |
| Warranty: | 1 Year | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Showroom Location: | Italy, France, Germany, Philippines, Saudi Arabia, Indonesia, India, Thailand, South Africa | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Other |
| CNC Or Not: | Normal | Open Side C Type Hydraulic Press: | Open Side C Type Hydraulic Press |
| Power Source: | Power, Electric, Hydraulic | After-sales Service Provided: | Online Support |
| Local Service Location: | Italy | Nominal Force: | 200 Kn |
| Pressure: | 25 Mpa | Travel: | 300 Mm |
| Table Size: | 400x300 | Port: | China Port |
Product Description
Products Description

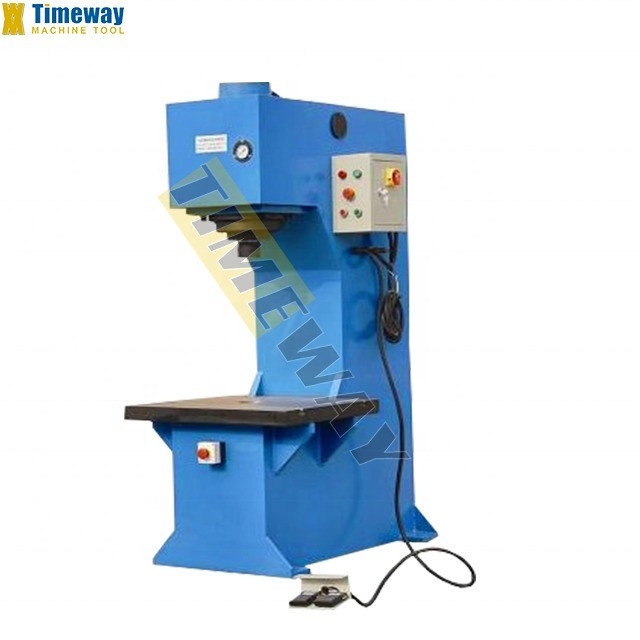

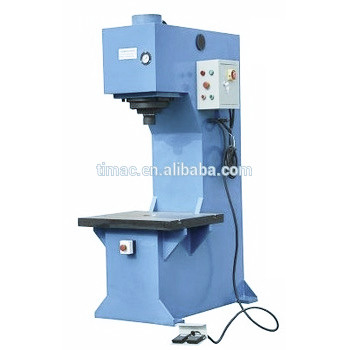

HP-C series open side “C” type hydraulic press, with trihedral open worktable, suitable for assembling and dismantling complex structure and large volume parts.
Specification | HP-20C | HP-30C | HP-50C | HP-63C | HP-100C |
Capacity(kn) | 200 | 300 | 500 | 630 | 1000 |
Pressure(mpa) | 25 | 25 | 31.5 | 31.5 | 31.5 |
Travel (mm) | 300 | 300 | 300 | 300 | 400 |
Tale Size(mm) | 400x300 | 400x300 | 400x600 | 400x600 | 500x800 |
Dimension(mm) | 800x600x1500 | 800x600x1500 | 800x1200x1800 | 800x1200x1800 | 1000x1600x2100 |
Weight (kg) | 460 | 600 | 980 | 1150 | 1350 |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
