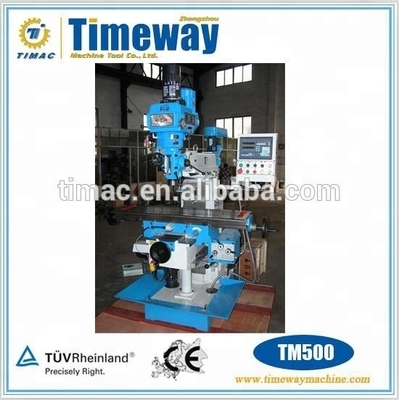

3-Axis TIMEWAY H/V Mill Head Turret Milling Machine TM500 with Customizable Voltage
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE, ISO9001:2008 |
| Model Number: | TM500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,750.00/sets 1-2 sets |
| Packaging Details: | Wood case (fumigated) |
| Supply Ability: | 140 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 600 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 300 | Table Travel (Z) (mm): | 280 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 80 - 5440 |
| Type: | VERTICAL | Spindle Motor Power(kW): | 2.2 |
| Voltage: | As Client's Request | Dimension(L*W*H): | 1700*1500*2150mm |
| Weight (KG): | 1600 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | After Warranty Service: | Online Support |
| Local Service Location: | Romania, South Africa, Brazil, Indonesia, Russia | CNC Or Not: | Normal |
| After-sales Service Provided: | Online Support | Milling Machine: | Machine Tools |
| Power(kw): | 2.2(V), 2.2(H) | Weight(kg): | 1600 |
| Showroom Location: | Romania, South Africa, Brazil, Indonesia, Russia | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Manufacturing Plant |
| Table Travel (mm): | 600X300X280 | Port: | Qingdao Port |
Product Description

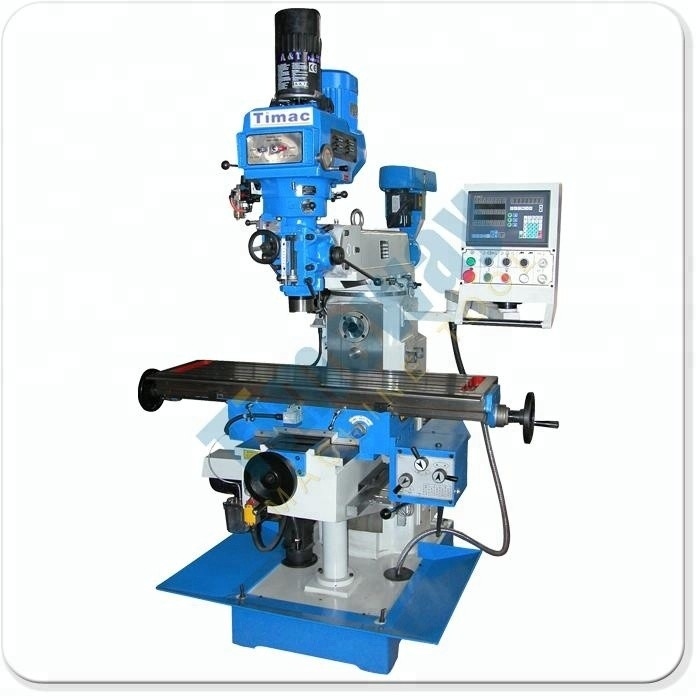

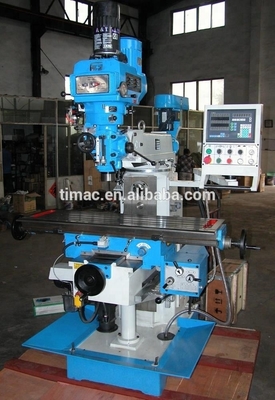

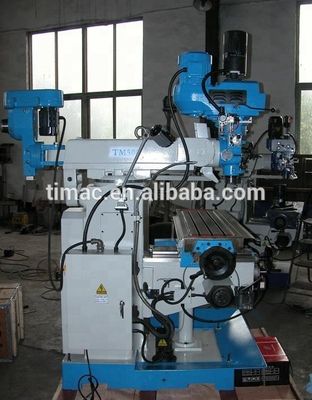

H/V Head Auto-feeding Turret Milling Machine TM500
Features :
Turret Milling Machine

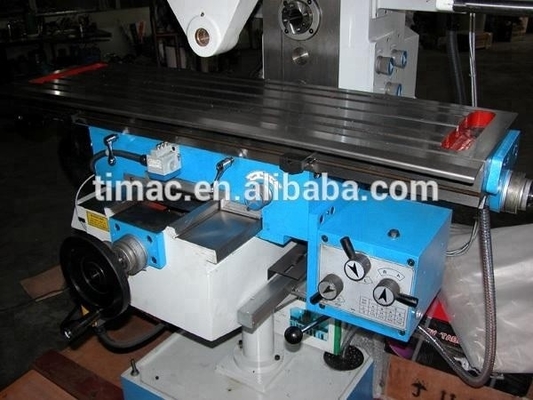

1. Hardened and ground table surface;
2. Automatic feeds on X, Y axes, motorized rise and fall of table on Z axis;
3. Spindle sleeve can tap, automatic feed with 3 speeds;

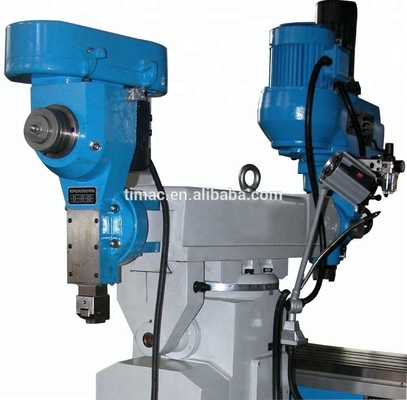

4. Headstock swivels ±90° from right to left, tilt ±45° from forth to back (TM500)
5. Drill depth stop with display of measurement;
6. Rectangular column guide way with high stability (TM600, TM700, TM800)
Parameter:
Model | Unit | TM500 | TM600 | TM700 | TM800 |
Table size | mm | 320 x 1250 | 320 x 1250 | 320 x 1250 | 360 x 1250 |
Spindle taper
| ISO40(V), ISO40(H) | ISO40(V), ISO40(H) | ISO40(V), ISO40(H) | ISO40(V), ISO50(H) | |
Diameter of quill | mm | 95 | 120 | 120 | 120 |
Distance from spindle to table | mm | 9 ± 0-370 | 90-490 | 90-490 | 135-535 |
Distance from horizontal spindle to table | mm
| 0-280 | 0-400 | 0-400 | 230 |
Distance from spin dle to column | mm | 200-700 | 200-700 | 200-700 | 200-700 |
Spindle speed
| r.p.m
| (16steps) 80-5440(V), (12steps) 40-1300(H)
| (16steps) 70-7200(V), (12steps) 40-1300(H)
| (16steps) 70-7200(V), (12steps) 40-1300(H)
| (16steps) 70-7200(V), (12steps) 60-1800(H)
|
Spindle travel | mm | 127 | 145 | 145 | 145 |
Quill feed
| mm
| (3steps)0.15,0.08,0.25 | (3steps)0.4,0.08,0.15 | (3steps)0.4,0.08,0.15 | (3steps)0.4,0.08,0.15 |
Max. drilling capacity of auto-feeding | mm
| 10 | 10 | 10 | 10 |
Head swivel(right to left) | ±90° | ±90° | ±90° | ±90° | |
Head tilt(fore to back) | ±45° | ||||
Table travel(Longitudinal/Cross/Verical) | mm
| 600/300/280 | 600/300/400 | 800/300/400 | 1000/320/400 |
X,Y axes feed speed | mm/min | 22-555 | 22-555 | 22-555 | 22-555 |
X,Y axes rapid feed speed | mm/min | 1080 | 1080 | 1080 | 1080 |
Z axis rapid elevate speed | mm/min | 590 | 590 | 590 | 590 |
Z axis rapid elevate motor power | w | 750 | 750 | 750 | 1100 |
Max. weight of workpiece | kg | 300 | 300 | 300 | 400 |
T slot(No./width/distance) | mm | 3/14/70 | 3/14/70 | 3/14/70 | 3/18/80 |
Main motor | kw | 2.2(V), 2.2(H) | 3.75(V), 2.2(H) | 3.75(V), 2.2(H) | 5.5(V), 4(H) |
X,Y axes auto-feed drive motor | w | 750 | 750 | 750 | 750 |
Coolant pump power | w | 40 | 40 | 40 | 90 |
Overall dimension | mm | 1700x1500x2150 | 1700x1500x2270 | 1780x1500x2270 | 2220x1790x2360 |
N.W./G.W. | kg | 1450/1600 | 1550/1650 | 1650/1750 | 2450/2650 |
***Standard:
5HP Taiwan made step pulley type milling head, Mill chuck&collets, draw bar, machine vise, horizontal mill arbor, coolant system, work lamp, table elevating motor, convergent panel, wrench, spanner, middle sleeve, elevating rotary handle, oil collecting plate, operation manual(English edition).
***Optional:
3-axes DRO
5HP Taiwan made variable(stepless) speed type milling head
Air power draw bar
58pcs clamping kits
Universal dividing head
Rotary table
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 114x122x222CM N.W./G.W.: 850/1050KGS
Two pieces in one case: 114x122x222CM N.W./G.W.: 1700/1900KGS
Container loaded: 3 sets / 20'GP
