800mm Workpiece High Rigidity Gantry Type Milling Machine with 220/380V Voltage Made
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | GM800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $50,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 2000 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | None | Table Travel (Z) (mm): | None |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 82 - 505 R.p.m |
| Type: | Horizontal | Voltage: | 220/380 V |
| Dimension(L*W*H): | 4000x3000x2300 | Weight (KG): | 4000 |
| Warranty: | 1 Year | Key Selling Points: | Sustainable |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Table Load(kg): | 1000 Kg | Spindle Bore(mm): | Other |
| Cutting Torque: | 10 N.m | Rapid Feed Speed(mm/min): | 1 - 1400 Mm/min |
| Feed Speed(mm/min): | 20 - 450 Mm/min | Tool Post Stations: | Other |
| Table Size (length): | 2000/3000 Mm | Table Size (width): | 800 Mm |
| Longitudinal Travel: | 2000/3000 Mm | Max. Width Of Workpiece: | 1100 Mm |
| Max. Height Of Workpiece: | 800 Mm | Distance Between Columns: | 1140 Mm |
| Table Feed Speed: | Infinite Variable | Table Rapid Feed Speed: | 1400 Mm/min |
| Spindle Tape: | ISO50 | Spindle Speed: | 82-505 Rpm |
Product Description
Product Description

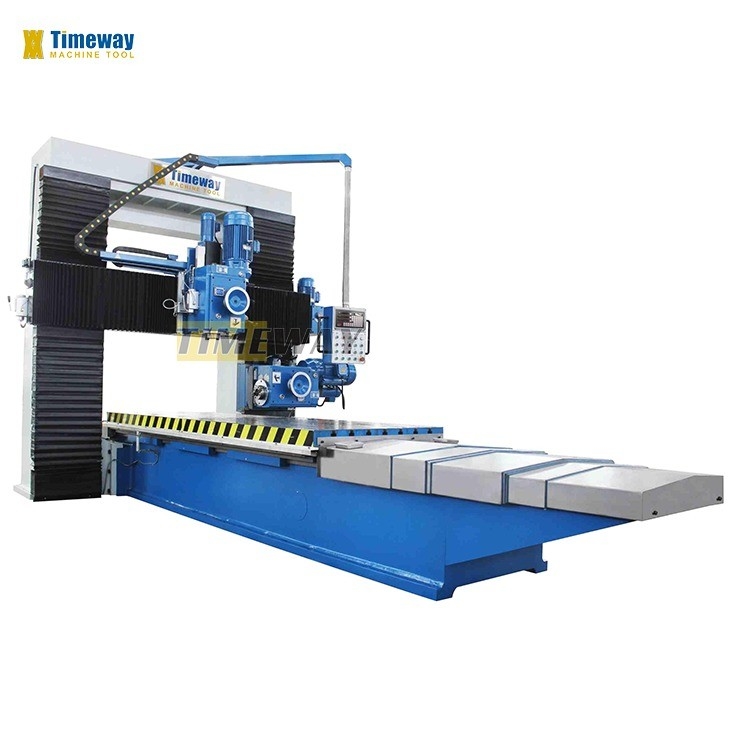

Bed, columns and travel tracks form a solid cast-iron frame structure for high rigidity under hard machining conditions and high table loads.
The gantry construction is fully integrated into the machine frame for maximum rigidity.
The traverse height is adjustable, ensuring high rigidity even with flat workpieces, since the throat size can be minimized
The gantry construction is fully integrated into the machine frame for maximum rigidity.
The traverse height is adjustable, ensuring high rigidity even with flat workpieces, since the throat size can be minimized
Specification
Specifications | GM800 |
Table size (length) | 2000/3000 mm |
Table size (width) | 800 mm |
Longitudinal travel | 2000/3000 mm |
Max. width of workpiece | 1100 mm |
Max. height of workpiece | 800 mm |
Distance between columns | 1140 mm |
Table feed speed | infinite variable |
Table rapid feed speed | 1400 mm/min |
Spindle taper | ISO50 |
Spindle speed | 82-505 rpm |
Mill head swivel angle | ±35° |
Vertical mill head feed speed | 65/320/890 mm/min |
Side mill head feed speed | - |
Main motor power | 7.5 kw |
Table feed motor power | 4 kw |
Machine length | 4000/6000 mm |
Machine width | 3000 mm |
Machine height | 2300 mm |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
