Normal CNC Horizontal Boring and Milling Machine with 6-Axis Control System
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $89,655.00/sets >=1 sets |
|
Detail Information |
|||
| Table Size (mm): | 1250*1100 | Table Travel (X) (mm): | 1600 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 1200 Mm | Table Travel (Z) (mm): | 1400 Mm |
| Number Of Axes: | 6 | Max. Table Load(kg): | 5000kg |
| Travel (W-axis) (mm): | 600 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Gear |
| Positioning Accuracy (X Axis) Mm: | 0.005 | Positioning Accuracy (Y Axis) Mm: | 0.005 |
| Positioning Accuracy (Z Axis) Mm: | 0.005 | No. Of Spindles: | Single |
| Range Of Spindle Speed(r.p.m): | 1000 R.p.m | Spindle Motor Power(kW): | 7.5 |
| Type: | Horizontal | Condition: | New |
| CNC Or Not: | Normal | Voltage: | Customize |
| Dimension(L*W*H): | 5028x3359x3079mm | Weight (T): | 14 T |
| Warranty: | 1 Year | Key Selling Points: | Sustainable |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Food Shop, Energy & Mining, Food & Beverage Shops | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany |
| Name: | Horizontal Boring Machine | Product Name: | Boring Machine Tool |
| Model: | TPX-110D | Machine Type: | Horizontal Structure |
| Precision: | High Precision | Keyword: | Boring And Milling |
| Color: | Customized | Functions: | High Efficiency |
| Delivery Time: | Within 15 Days | ||
Product Description
Product Description

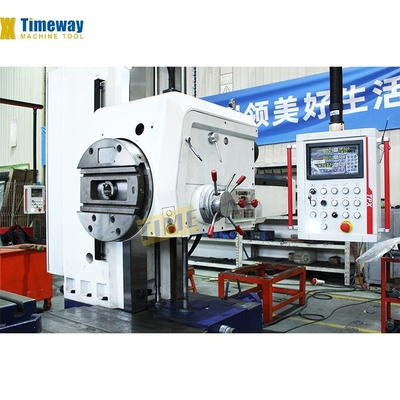

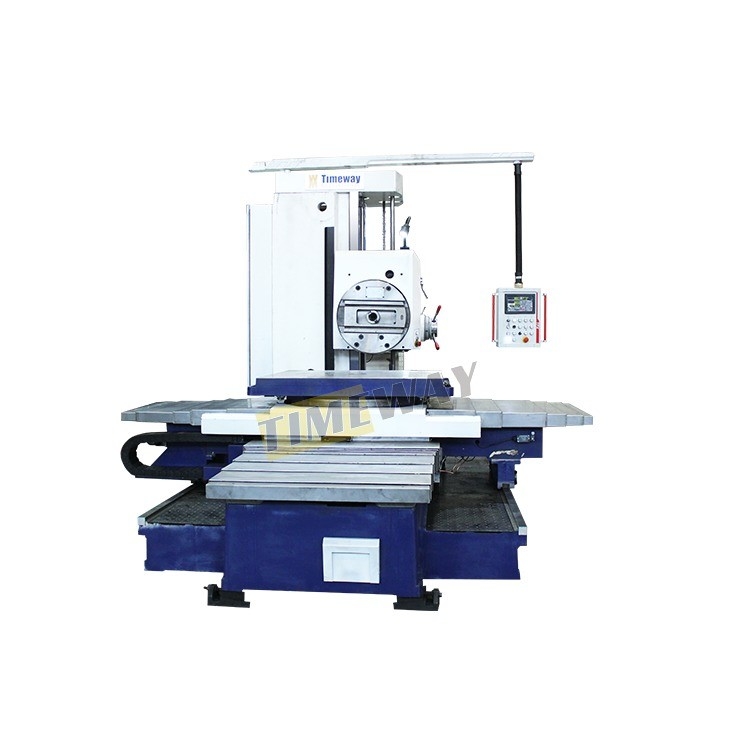

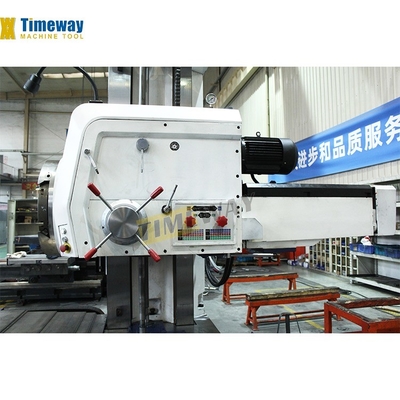

Horizontal Boring and Milling Machine
The classic series horizontal milling and boring machines are especially suitable for the rough and finishing boring as well as large, medium size and box type components milling. They excel at inner hole boring, cylindrical turning, and grooving by radial feed of facing plate slide rest. worktable rotation uses a 4x90° optical positioning device suitable for large workpiece turnover machining accuracy needs. The precision DRO measurement system meets the requirements of workpiece coordinate and lineation.
Specification
Specifications | Units | TPX-110B | TPX-110C | TPX-110D | ||
Spindle | Diameter | mm | 110 | 110 | 110 | |
Taper | Morse No.6 | Morse No.6 | Morse No.6 | |||
Max. torque | N.m | 1225 | 1225 | 1225 | ||
Max. axial thrust | N | 12250 | 12250 | 12250 | ||
Speed settings | - | 22 | 22 | 22 | ||
Speed range | rpm | 8-1000 | 8-1000 | 8-1000 | ||
Main motor power | kw | 7.5 | 7.5 | 7.5 | ||

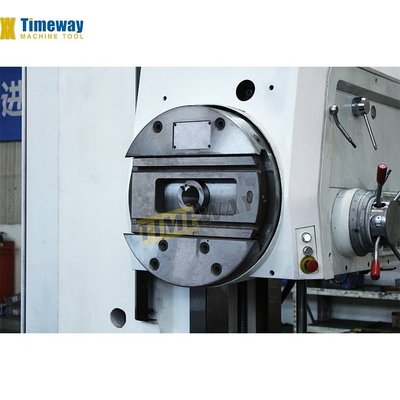

Facing plate | Max. torque | N.m | 1960 | 1960 | 1960 | |
Diameter | mm | 600 | 600 | 600 | ||
Speed range | rpm | 4-200 | 4-200 | 4-200 | ||
Speed settings | - | 18 | 18 | 18 | ||

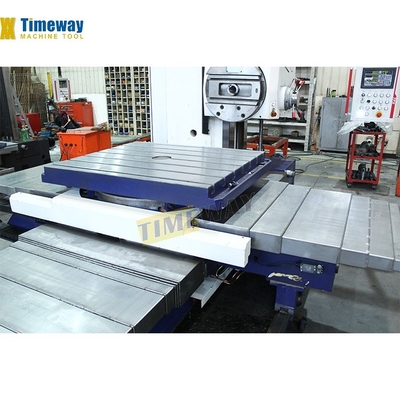

Worktable | Dimensions | mm | 1100*960 | 1100*960 | 1250*1100 | |
Max. load | kg | 5000 | 5000 | 5000 | ||
T-slot size | mm | 22 | 22 | 22 | ||
T-slot count | 7 | 7 | 7 | |||
Machining range | X-axis max. travel | mm | 900 | 1250 | 1600 | |
Y-axis max. travel | mm | 900 | 900 | 1200 | ||
Z-axis max. travel | mm | 1400 | 1400 | 1400 | ||
W-axis max. travel(spindle) | mm | 600 | 600 | 600 | ||
U-axis max. travel(facing plate slide) | mm | 180 | 180 | 180 | ||
B-axis rotary angle | ° | 360 | 360 | 360 | ||
Min. distance between spindle cneter and worktable | mm | 0 | 0 | 0 | ||
Feed | Rapid traverse X/Y/Z/W | mm/min | 2500 | 2500 | 2500 | |
Feed range of axes for each spindle revolution | mm/rev | 0.04-6/0.01-1.88 | 0.04-6/0.01-1.88 | 0.04-6/0.01-1.88 | ||
Speed range(X) | mm/min | - | - | - | ||
Accuracy | Linear measurement reading accuracy(X/Y/Z-axis) | mm | 0.005 | 0.005 | 0.005 | |
Linear measurement reading accuracy(B-axis) | ° | 0.001 | 0.001 | 0.001 | ||
General Specs | Dimensions(L*W*H) | mm | 4910*2454*2750 | 4910*2870*2750 | 5028*3359*3079 | |
Machine weight | kg | 11500 | 13000 | 14000 | ||
Details of Accessories:
Standard Accessories | Optional Accessories |

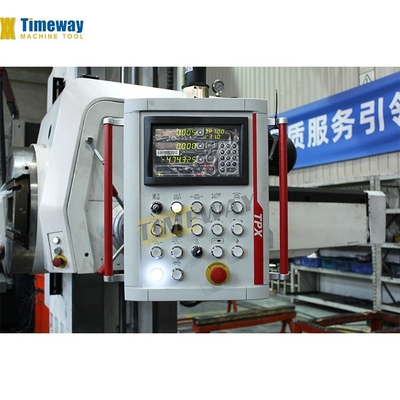

MT6 spindle (110mm) Metric 80 spindle (130mm) Facing plate Boring tool holder Work lamp Hydraulic system Lubrication pump NEWALL X/Y-axis DRO MITSUBISHI PLC control CE-mark electrical components Level wedges & foundation bolts Operating tools Operation manual | ISO50 (7:24) spindle NEWALL Z-axis DRO Rear column Turning device & gears |
