Horizontal Boring and Milling Machine with Digital Display Table Travel Y 900 mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $89,658.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Size (mm): | 110 | Table Travel (X) (mm): | 900 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 900 Mm | Table Travel (Z) (mm): | 1400 Mm |
| Number Of Axes: | 5 | Max. Table Load(kg): | 5000 |
| Travel (W-axis) (mm): | 450 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Motor |
| Positioning Accuracy (X Axis) Mm: | 0.03 | Positioning Accuracy (Y Axis) Mm: | 0.04 |
| Positioning Accuracy (Z Axis) Mm: | 0.02 | No. Of Spindles: | Single |
| Range Of Spindle Speed(r.p.m): | 200 R.p.m | Type: | Horizontal |
| Condition: | New | CNC Or Not: | Normal |
| Voltage: | 220V /380V | Dimension(L*W*H): | 4910x2451x2750 |
| Weight (T): | 11.5 T | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Applicable Industries: | Machinery Repair Shops |
| Showroom Location: | Russia, Ukraine | Product Name: | Boring Machine |
| Name: | Boring Machine | Application: | Construction Machine Repairing |
| Functions: | Broing | Product Type: | Boring Machine |
| Machine Type: | Horizontal Structure | Color: | Custmized |
| Precision: | High Precision | Keyword: | Boring Machine |
Product Description
Product Description

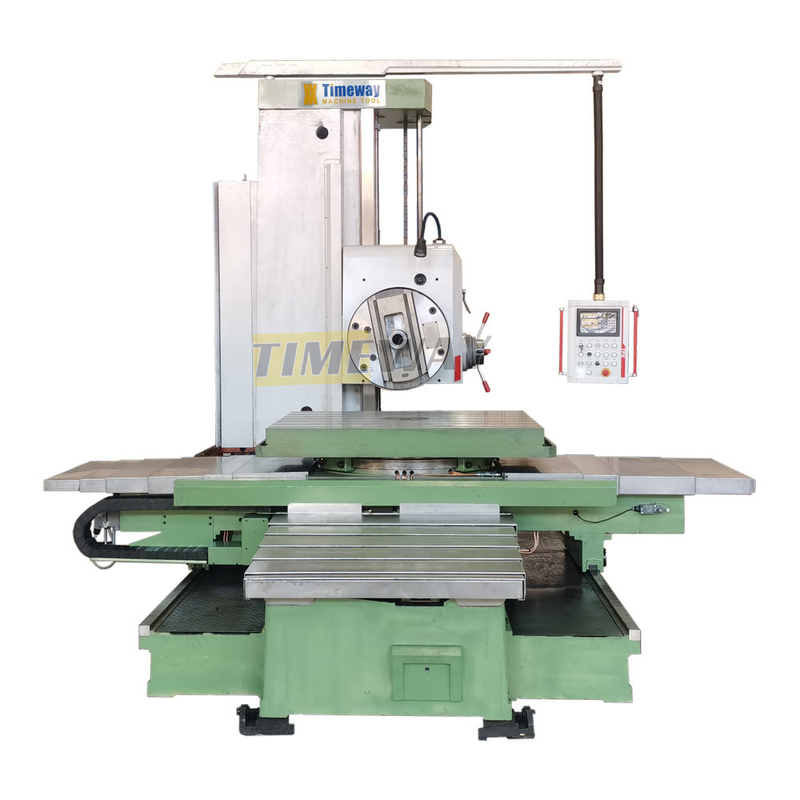

Horizontal Boring and Milling Machine
The classic series horizontal milling and boring machines are especially suitable for the rough and finishing boring as well as large, medium size and box type components milling. They excel at inner hole boring, cylindrical turning,
and grooving by radial feed of facing plate slide rest. worktable rotation uses a 4x90° optical positioning device suitable for large workpiece turnover machining accuracy needs. The precision DRO measurement system meets the requirements of workpiece coordinate and lineation
and grooving by radial feed of facing plate slide rest. worktable rotation uses a 4x90° optical positioning device suitable for large workpiece turnover machining accuracy needs. The precision DRO measurement system meets the requirements of workpiece coordinate and lineation
Specification
Specification | Unit | TPX-110B | TPX-110C |
Spindle dia. | mm | 110 | 110 |
Spindle taper | - | MT6 | MT6 |
Max. spindle torque | N.m | 1225 | 1225 |
Max. spindle thrust | N | 12250 | 12250 |
Spindle speed steps | - | 22 | 22 |
Spindle speed range | rpm | 8-1000 | 8-1000 |
Main motor power | kw | 7.5 | 7.5 |
Max. facing head torque | N.m | 1960 | 1960 |
Facing head dia. | rpm | 600 | 600 |
Facing head speed range | rpm | 4-200 | 4-200 |
Facing head speed steps | steps | 18 | 18 |
Table size | mm | 1100x960 | 1100x960 |
Max. loading capacity | kg | 5000 | 5000 |
T-slot size | - | 22 | 22 |
X/Y/Z travel | mm | 900/900/1400 | 1250/900/1400 |
Spindle travel | mm | 600 | 600 |
Facing slide travel | mm | 180 | 180 |
Distance between spindle center and table | mm | 0-900 | 0-900 |
X/Y/Z/W-axis rapid feed speed | mm | 0.005 | 0.005 |
Machine weight | kg | 11500 | 13000 |
Machine dimensions (LxWxH) | mm | 4910x2454x2750 | 4910×2870×2750 |
Detailed Images
