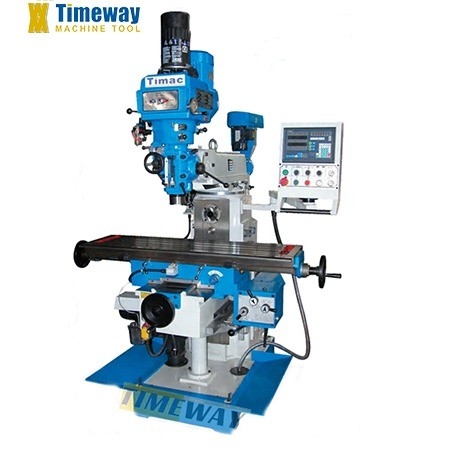

320x1250 mm Table Size Vertical Turret Milling Machine TM700 for Light Duty Machining
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | TM700 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 800 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 300 | Table Travel (Z) (mm): | 400 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 70 - 4660 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 3.75 |
| Weight (KG): | 1650 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 320x1250 Mm |
| Longitudinal Travel (X): | 800 Mm | Cross Travel (Y): | 300 Mm |
| Vertical Travel (Z): | 400 Mm | T-slot No. And Size And Distance: | 3/14/70 Mm |
| Loading Capacity: | 300 Kg | Distance From Vertical Spindle To Table: | 90-490 Mm |
| Distance From Vertical Spindle To Column: | 200-700 Mm | Vertical Spindle Taper: | ISO40 |
| Vertical Spindle Quill Diameter: | 120 Mm | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Other |
| Showroom Location: | Morocco, Malaysia, Brazil, Russia | Core Components: | Bearing, Motor, Gear, Engine |
| Year: | 2024 | ||
Product Description
Product Description
Hardened and ground table surface for clamping workpiece correctly.
Hardened and ground gears for low noise and transmission performance.
Multi-purpose milling machine has vertical and horizontal milling function, and optional slotting head.
Hardened and ground gears for low noise and transmission performance.
Multi-purpose milling machine has vertical and horizontal milling function, and optional slotting head.
Specification
Specifications | TM700 |
Table size | 320x1250 |
Longitudinal travel (X) | 800 |
Cross travel (Y) | 300 |
Vertical travel (Z) | 400 |
T-slot No. and size and distance | 3/14/70 |
Loading capacity | 300 |
Distance from vertical spindle to table | 90-490 |
Distance from vertical spindle to column | 200-700 |
Vertical spindle taper | ISO40 |
Vertical spindle quill diameter | 120 |
Vertical spindle quill travel | 145 |
Vertical spindle quill automatic feed | 0.04/0.08/0.015 |
Vertical spindle speed | 70-4660 (16) |
Vertical spindle motor power | 3.75 |
Distance from horizontal spindle to table | 0-400 |
Horizontal spindle taper | ISO40 |
Horizontal spindle speed | 40-1300 (12) |
Horizontal spindle motor power | 2.2 |
X/Y-axis feed speed | 22-555 (8) |
X/Y-axis rapid feed speed | 1080 |
Z-axis rapid feed speed | 590 |
X/Y-axis feed motor power | 0.75 |
Z-axis rapid feed motor power | 0.75 |
Coolant pump power | 0.09 |
Mill head swivel angle | ±45° |
Machine dimensions (LxWxH) | 1780x1500x2270 |
Net weight/gross weight | 1650/1750 |
