24 Hours After Service TPX-110D Digital Display Boring and Milling Machine for Metal
Product Details:
| Place of Origin: | China |
| Brand Name: | Timeway/Timac |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $40,000.00/pieces 1-2 pieces |
|
Detail Information |
|||
| Table Size (mm): | 1250x1100 | Table Travel (X) (mm): | 1600 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 1200 Mm | Table Travel (Z) (mm): | 1400 Mm |
| Number Of Axes: | 6 | Max. Table Load(kg): | 5000 |
| Travel (W-axis) (mm): | 600 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Motor, Gear |
| Positioning Accuracy (X Axis) Mm: | 0.005 | Positioning Accuracy (Y Axis) Mm: | 0.005 |
| Positioning Accuracy (Z Axis) Mm: | 0.005 | Range Of Spindle Speed(r.p.m): | 1000 R.p.m |
| Spindle Motor Power(kW): | 7.5 | Type: | Horizontal |
| Condition: | New | CNC Or Not: | Normal |
| Dimension(L*W*H): | 5028 | Weight (T): | 14 T |
| Warranty: | 1 Year | Key Selling Points: | Long Service Life |
| Applicable Industries: | Machinery Repair Shops, Construction Works , Energy & Mining | Showroom Location: | Turkey, Viet Nam, Brazil, Peru, Indonesia, India, Mexico, Russia, South Korea, South Africa, Australia |
| Product Name: | High Precision Horizontal Boring Machine | Model: | TPX-110D |
| Machine Type: | Rotary Boring Machine | Boring Diameter: | 110mm |
| Table Size: | 1250*1100mm | After Warranty Service: | 24 Hours Online Technical Support |
| Spindle Speed: | 8-1000rpm | Color: | Customer's Require |
| Motor Power: | 7.5kw | Precision: | High Precision High Accuracy |
Product Description
Products Description

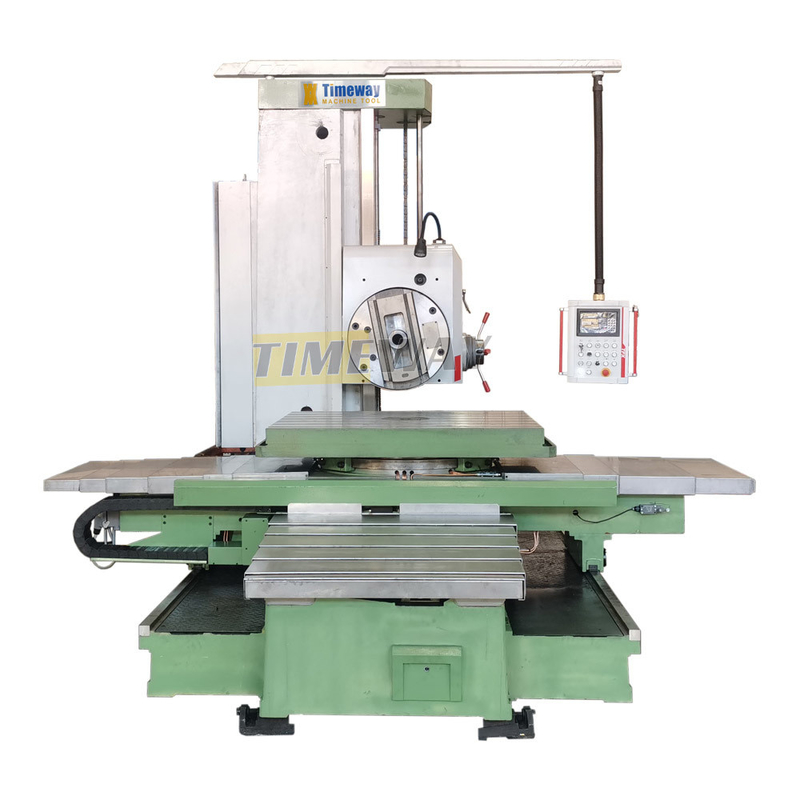

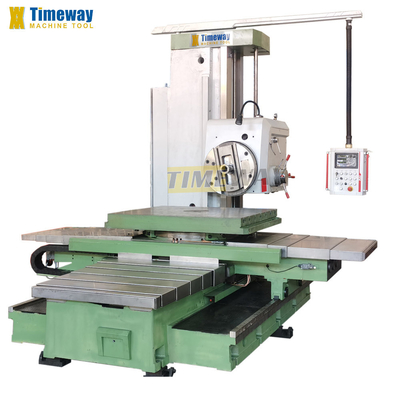

Horizontal Boring and Milling Machine
Feature
1. High Quality Spindle: The three layer mechanism ensures high rotational accuracy and the three point support provides high rigidity and accuracy.

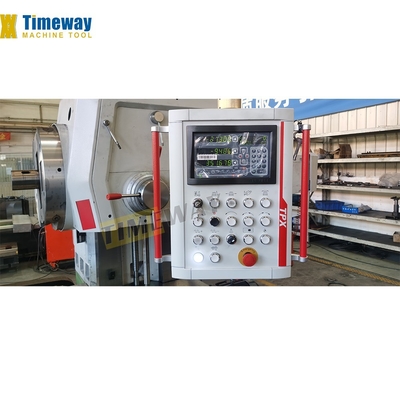

2. User Friendly Layout: The hanging operation Panel provides flexible and convenient centralized operation. Hydraulic preselection controls speed and feed rate.
3. Accurate & Stable Optical Aiming: The worktable's 4*90 optical aiming device ensures high positioning accuracy and high precision when turnover boring.
4. Elector-Hydraulic Interlock: All moving components feature electro-hydraulic interlocks. Only one component moves while others are clamped automatically.
5. Bed: Our high quality casting feature polished and hardened guideways. The castings are internally reinforced to maximize rigidity and stability.
6. Control Panel: Available in hanging or swing-arm arrangements, the control panel is easy to use and reduces operator fatigue.
7. Internal Design: Easy to install, steady, and precise with a fully-enclosed structure to prevent oil, coolant, and chip intrusion.
8.Column: Made of high quality castings with ground and hardened guideways, the optimized structural design easily supports the assembly.
9. Protective Enclosure:Welded high quality steel plates form an excellent protective cover.
10.Hydraulic System Pressure adjusted via relief valve. Variable speed achieved via a rotary valve.
11. Headstock Primary speed is controlled via switches on the headstock itself, a variety of rotational speeds are possible.
2. User Friendly Layout: The hanging operation Panel provides flexible and convenient centralized operation. Hydraulic preselection controls speed and feed rate.
3. Accurate & Stable Optical Aiming: The worktable's 4*90 optical aiming device ensures high positioning accuracy and high precision when turnover boring.
4. Elector-Hydraulic Interlock: All moving components feature electro-hydraulic interlocks. Only one component moves while others are clamped automatically.
5. Bed: Our high quality casting feature polished and hardened guideways. The castings are internally reinforced to maximize rigidity and stability.
6. Control Panel: Available in hanging or swing-arm arrangements, the control panel is easy to use and reduces operator fatigue.
7. Internal Design: Easy to install, steady, and precise with a fully-enclosed structure to prevent oil, coolant, and chip intrusion.
8.Column: Made of high quality castings with ground and hardened guideways, the optimized structural design easily supports the assembly.
9. Protective Enclosure:Welded high quality steel plates form an excellent protective cover.
10.Hydraulic System Pressure adjusted via relief valve. Variable speed achieved via a rotary valve.
11. Headstock Primary speed is controlled via switches on the headstock itself, a variety of rotational speeds are possible.
Specification
Specifications | Units | TPX-110B | TPX-110C | TPX-110D | ||
Spindle | Diameter | mm | 110 | 110 | 110 | |
Taper | Morse No.6 | Morse No.6 | Morse No.6 | |||
Max. torque | N.m | 1225 | 1225 | 1225 | ||
Max. axial thrust | N | 12250 | 12250 | 12250 | ||
Speed settings | - | 22 | 22 | 22 | ||
Speed range | rpm | 8-1000 | 8-1000 | 8-1000 | ||
Main motor power | kw | 7.5 | 7.5 | 7.5 | ||
Facing plate | Max. torque | N.m | 1960 | 1960 | 1960 | |
Diameter | mm | 600 | 600 | 600 | ||
Speed range | rpm | 4-200 | 4-200 | 4-200 | ||
Speed settings | - | 18 | 18 | 18 | ||

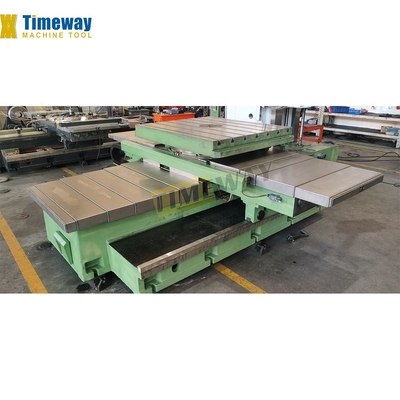

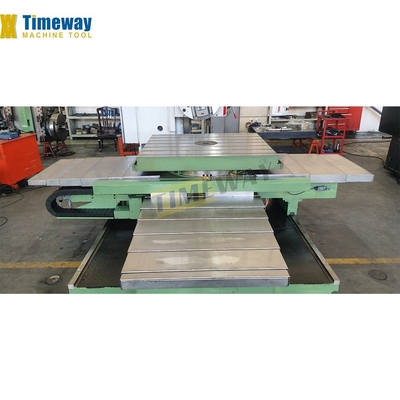

Worktable | Dimensions | mm | 1100*960 | 1100*960 | 1250*1100 | |
Max. load | kg | 5000 | 5000 | 5000 | ||
T-slot size | mm | 22 | 22 | 22 | ||
T-slot count | 7 | 7 | 7 | |||
Machining range | X-axis max. travel | mm | 900 | 1250 | 1600 | |
Y-axis max. travel | mm | 900 | 900 | 1200 | ||
Z-axis max. travel | mm | 1400 | 1400 | 1400 | ||
W-axis max. travel(spindle) | mm | 600 | 600 | 600 | ||
U-axis max. travel(facing plate slide) | mm | 180 | 180 | 180 | ||
B-axis rotary angle | ° | 360 | 360 | 360 | ||
Min. distance between spindle cneter and worktable | mm | 0 | 0 | 0 | ||
Feed | Rapid traverse X/Y/Z/W | mm/min | 2500 | 2500 | 2500 | |
Feed range of axes for each spindle revolution | mm/rev | 0.04-6/0.01-1.88 | 0.04-6/0.01-1.88 | 0.04-6/0.01-1.88 | ||
Speed range(X) | mm/min | - | - | - | ||
Accuracy | Linear measurement reading accuracy(X/Y/Z-axis) | mm | 0.005 | 0.005 | 0.005 | |
Linear measurement reading accuracy(B-axis) | ° | 0.001 | 0.001 | 0.001 | ||
General Specs | Dimensions(L*W*H) | mm | 4910*2454*2750 | 4910*2870*2750 | 5028*3359*3079 | |
Machine weight | kg | 11500 | 13000 | 14000 | ||
Accessories
MT6 spindle (110mm) Metric 80 spindle (130mm) Facing plate Boring tool holder Work lamp Hydraulic system Lubrication pump NEWALL X/Y-axis DRO MITSUBISHI PLC control CE-mark electrical components Level wedges & foundation bolts Operating tools Operation manual | ISO50 (7:24) spindle NEWALL Z-axis DRO Rear column Turning device & gears |
Detailed Images
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
