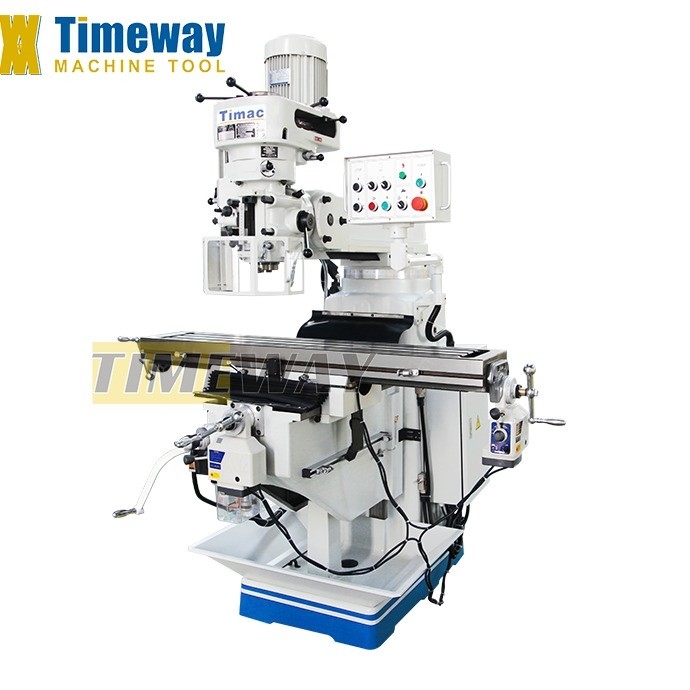

Universal Turret Milling Machine with 66 N.m Cutting Torque and High Speed Feed Rate
Product Details:
| Place of Origin: | China |
| Model Number: | M250D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,666.00/sets >=1 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 820 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 410 | Table Travel (Z) (mm): | 400 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 65 - 4500 R.p.m |
| Type: | VERTICAL | Dimension(L*W*H): | 1516 1550 2080 |
| Weight (KG): | 1490 | Warranty: | 1 Year |
| Key Selling Points: | High Productivity, Easy To Operate | Marketing Type: | Hot Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Table Load(kg): | 250 Kg |
| Spindle Bore(mm): | 100 | Cutting Torque: | 66 N.m |
| Rapid Feed Speed(mm/min): | 1000 - 1500 Mm/min | Feed Speed(mm/min): | 1000 - 1500 Mm/min |
| Tool Post Stations: | 6 | Product Name: | Metal Milling Machine |
| Machine Type: | Manual Milling Machine | After-sales Service Provided: | Online Support |
| Precision: | High Precision | Product Type: | Turret Milling |
Product Description
Product Description
Specification
Table size | mm | 254x1270/254x1370 |
Longitudinal travel (X) | mm | 820/920 |
Cross travel (Y) | mm | 410 |
Vertical travel (Z) | mm | 400 |
T-slot (No./width) | mm | 3/16 |
Ram travel | mm | 470 |
Distance from spindle to table | mm | 0-400 |
Spindle taper | - | ISO40 |
Spindle quill travel | mm | 127 |
Spindle speed | rpm | 16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 65-3750) |
Spindle quill automatic feed | mm/r | 0.038/0.076/0.152 |
Main motor power | kw | 3.7 |
Mill head swivel angle | ° | ±90° |
Mill head tilting angle | ° | ±45° (Fix) |
X/Y/Z-axis guide type | - | double dovetail guideway； rectangular guideway； rectangular guideway |
Dimension of package | mm | 1516x1550x2080 |
Gross weight (One) | mm | 1650x1790x2170 |
Tool section size | kg | 1490 |
