Fully Integrated Gantry Milling Machine Maximum Rigidity for Custom-made Requirements
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | GM2000/ GM2500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $55,000.00/sets 1-4 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 2000/3000/4000 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 1100 | Table Travel (Z) (mm): | 800 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 30 - 1500 R.p.m |
| Type: | Gantry | Spindle Motor Power(kW): | 7.5 |
| Voltage: | 380V | Dimension(L*W*H): | 4000/6000x3000x2300 |
| Weight (KG): | 4000 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | X-axis Travel: | 2000/3000/4000 |
| Y-axis Travel: | 1100 | Z-axis Travel: | 800 |
| Name: | Milling Machine | Machine Type: | Gantry Milling Machine |
| Keyword: | Milling Machine Manual | Product Name: | Double Column Milling Machine |
| Color: | Custom-made | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Sri Lanka, Romania, Nigeria, Egypt, United States, Philippines | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Gearbox |
| Table Travel (mm): | 2000/3000x800 | ||
Product Description
Products Description

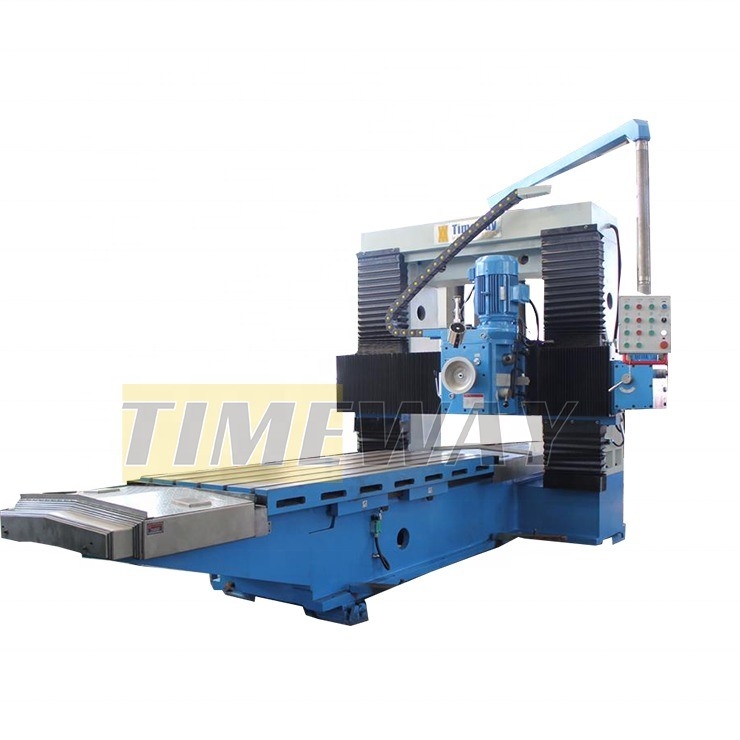

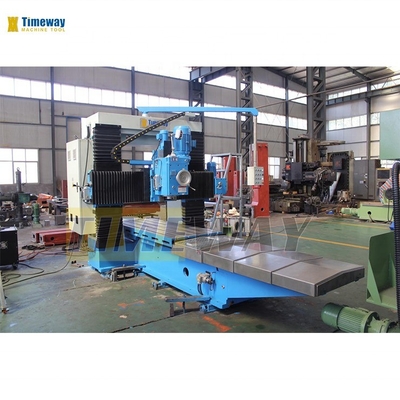

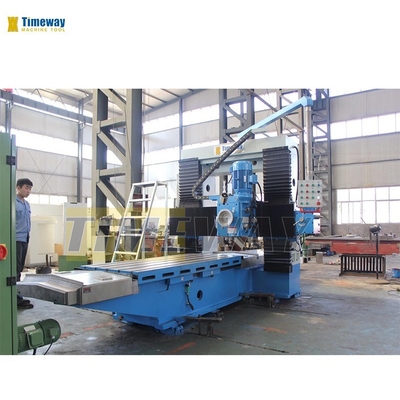

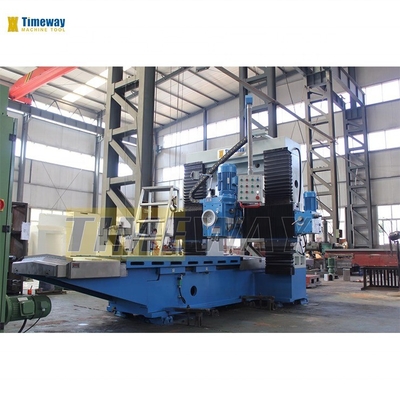

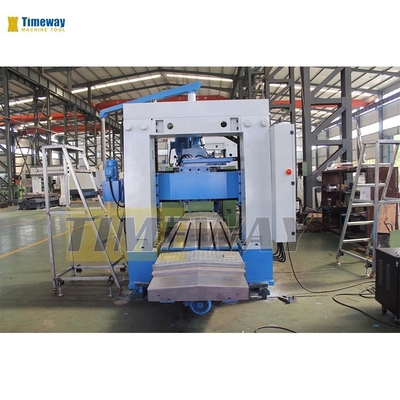

Gantry Type Milling Machine
Features:
---Bed, columns and travel tracks form a solid cast-iron frame structure for high rigidity under hard machining conditions and high table loads.
---The gantry construction is fully integrated into the machine frame for maximum rigidity.
---The traverse height is adjustable, ensuring high rigidity even with flat workpieces, since the throat size can be minimized.
---Rigid guides with ground surfaces support the table across the entire travel distance to ensure constant high geometric accuracy.
---Infinitely variable feed on X.
---Main spindle gears with 6 steps for vertical and horizontal operation.
---Including weight balancing system for easy movement and precise positioning of the horizontal spindle head.
---All guideways are protected by telescoping covers or bellows.

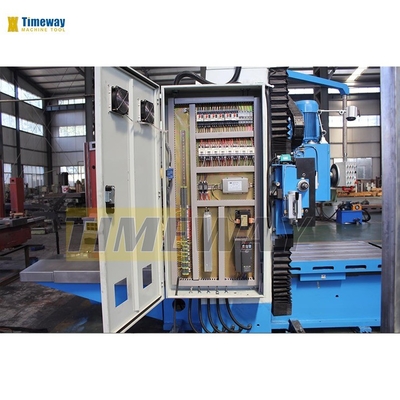

---The control panel is mounted on a long arm, giving the user maximum positioning flexibility.
---Automatic central lubrication is included.
---The gantry construction is fully integrated into the machine frame for maximum rigidity.
---The traverse height is adjustable, ensuring high rigidity even with flat workpieces, since the throat size can be minimized.
---Rigid guides with ground surfaces support the table across the entire travel distance to ensure constant high geometric accuracy.
---Infinitely variable feed on X.
---Main spindle gears with 6 steps for vertical and horizontal operation.
---Including weight balancing system for easy movement and precise positioning of the horizontal spindle head.
---All guideways are protected by telescoping covers or bellows.
---The control panel is mounted on a long arm, giving the user maximum positioning flexibility.
---Automatic central lubrication is included.
Technical Parameter：
Specification | Unit | GM1250 | GM1400 |
Table size (length) | mm | 2000/3000/4000 | 2000/3000/4000 |
Table size (width) | mm | 1250 | 1400 |
Longitudinal travel | mm | 2000/3000/4000 | 2000/3000/4000 |
Max. width of workpiece | mm | 1400 | 1800 |
Max. height of workpiece | mm | 1000/1200 | 1000/1200 |
Distance between columns | mm | 1600 | 1920 |
Table feed speed | mm/min | 25-450 | 25-450 |
Table rapid feed speed | mm/min | 1300 | 1300 |
Spindle taper | - | ISO50 | ISO50 |
Spindle speed | rpm | 82-505 | 82-505 |
Mill head swivel angle | ° | ±35° | ±35° |
Vertical mill head feed speed | mm/min | 65/320/890 | 65/320/890 |
Side mill head feed speed | mm/min | 50/265/730 | 50/265/730 |
Main motor power | kw | 7.5 | 7.5 |
Table feed motor power | kw | 5.5/7.5/7.5 | 5.5/7.5/7.5 |
Machine length | mm | 5000/7000/9000 | 5000/7000/9000 |
Machine width | mm | 3550 | 3550 |
Machine height | mm | 2950/3150 | 2950/3150 |
