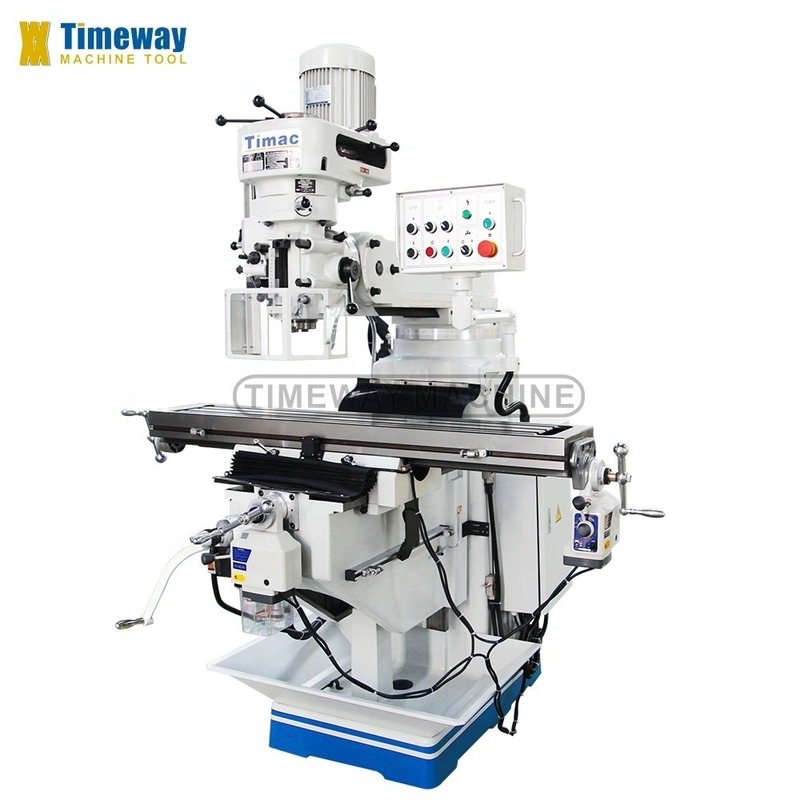

2.2kW Spindle Motor Power 3-Axis DRO Universal Rotary Head Milling Machine for Milling
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE, ISO9001:2008 |
| Model Number: | M250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,240.00/sets >=1 sets |
| Packaging Details: | Wood case (fumigated) |
| Supply Ability: | 60 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 920 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 410 | Table Travel (Z) (mm): | 400 |
| Spindle Taper: | R8 | Range Of Spindle Speed(r.p.m): | 65 - 4500 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 2.2 |
| Voltage: | As Client's Request | Dimension(L*W*H): | 1520*1550*2080mm |
| Weight (KG): | 1320 | Warranty: | 1 Year After Delivery |
| Key Selling Points: | High Productivity | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Milling Machine: | Machine Tools | Table Size: | 1370x254 Mm |
| Longitudinal Travel: | 920mm | Cross Travel: | 410mm |
| Vertical Travel: | 400mm | Spindle Speed: | 65-4500rpm |
| Gross Weight: | 1320kg | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining |
| Showroom Location: | UAE, Bangladesh, Ukraine, Uzbekistan, Malaysia, United States, Italy, Peru | Core Components: | Bearing, Pump, PLC, Engine |
| Table Travel (mm): | 920x410x400 | Year: | 2022 |
| Port: | Qingdao Port | ||
Product Description
Products Description
Specifications | Unit | M250 |
Table size | mm | 254x1370 |
Longitudinal travel (X) | mm | 920 |
Cross travel (Y) | mm | 410 |
Vertical travel (Z) | mm | 400 |
T-slot No. and size | mm | 3 x 16 |
Ram travel | mm | 470 |
Distance from spindle to table | mm | 0-400 |
Spindle taper | - | R8 |
Spindle quill travel | mm | 127 |
Spindle speed | rpm | 16steps, 50HZ: 65-4500 |
Spindle quill automatic feed | mm/r | 0.04/ 0.08/0.15 |
Main motor power | kw | 2.2 |
Mill head swivel angle | ° | ±90° |
Mill head tilting angle | ° | ±45° |
Dimension of package | mm | 1516x1550x2080 |
Gross weight | kg | 1320 |
· 3-axis DRO · Step pulley mill head · Draw bar · Working light · Hand oil Pump · Cooling system · Oil collecting plate · Plastic splash guard · Tool & tool box · Operator manual |
Positive Comments From Customers
Company Introduction

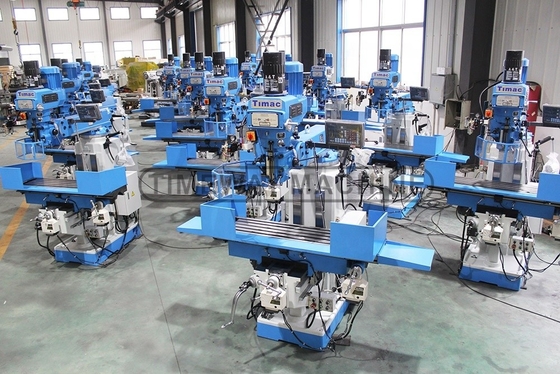

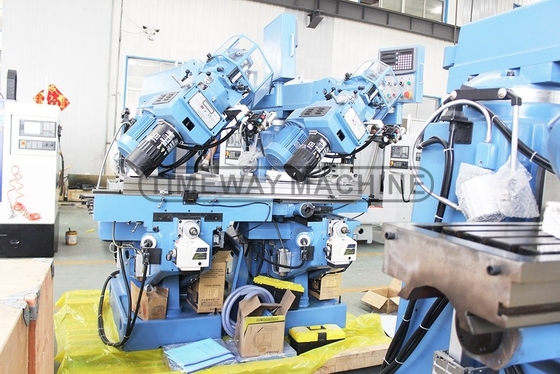

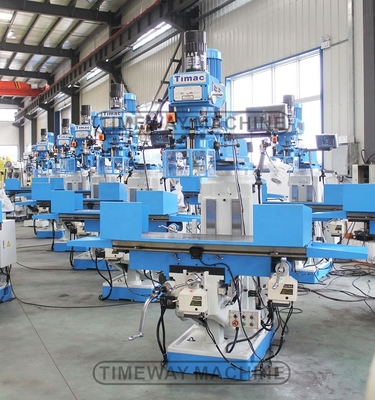

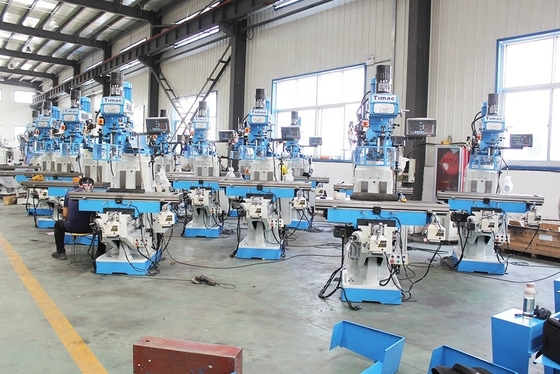

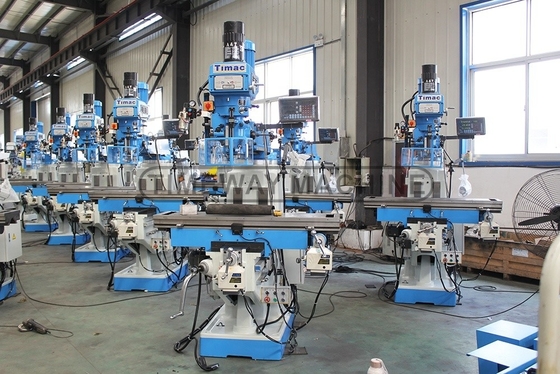

Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
