High Precision 2 Axis Ram Type Milling Machine RUM500 with 1200mm X-axis Travel
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE, ISO9001:2008 |
| Model Number: | RUM500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $28,000.00/sets 1-2 sets |
| Packaging Details: | Wood case (fumigated) |
| Supply Ability: | 60 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1200 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 700 | Table Travel (Z) (mm): | 500 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 30 - 2050 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 7.5 |
| Voltage: | As Client's Request | Dimension(L*W*H): | 2625*2460*2080mm |
| Weight (KG): | 5000 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| After-sales Service Provided: | Online Support | Power: | 7.5kw |
| Weight: | 5000kg | X-axis Travel: | 1200mm |
| Y-axis Travel: | 700mm | Z Travel: | 500mm |
| Warranty Period: | 1year | Product Name: | Ram Type Milling Machine |
| Number Of Axes: | 2 | Condition: | New |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Retail, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Chile, Algeria, Uzbekistan, Germany, Pakistan, Mexico, Russia |
| Core Components: | Bearing, Motor, Pump, Gear, Engine | Table Travel (mm): | 1200x700x500 |
| Port: | Qingdao Port | ||
Product Description

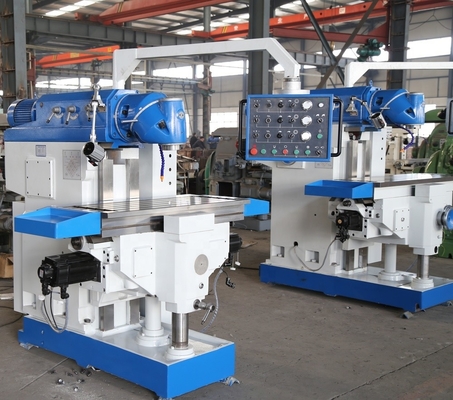

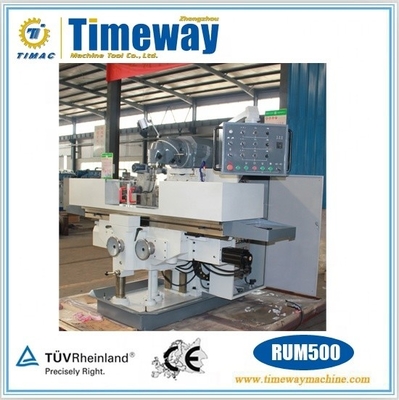

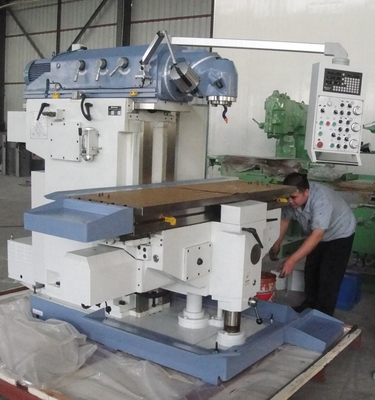

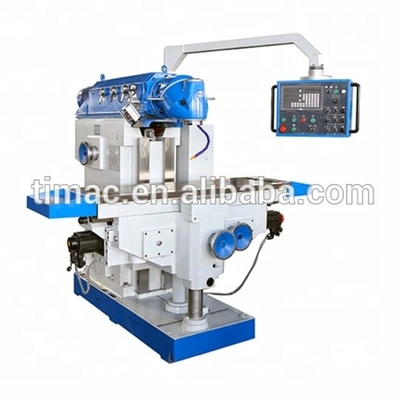

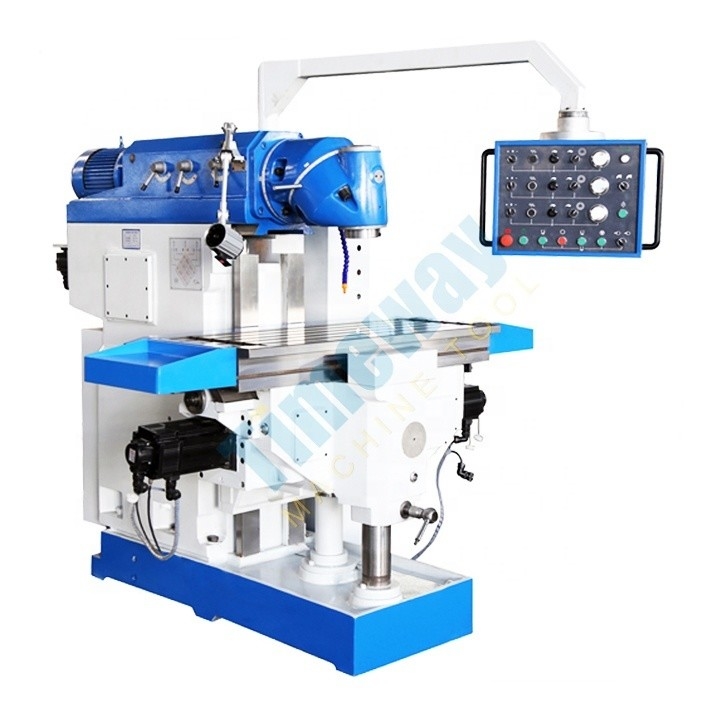

Ram type Milling Machine RUM500
Key Feature:
• Extra large work table and wide 3-axis travel ranges;
• Stepless variable feed settings & rapid feed driven by Powerful servo motors on each axes;
• Ball screw in all axis providing smooth and accurate Operation;
• Universal head can swivel to any position within 360°;
• Dovetail guideway in X-axis, rectangular in Y & Z-axis.
Technical Specification:
| Model | RUM460 | RUM500 |
| Table size (W×L) | 460×1235mm | 500×1600mm |
| Table travel (X/Y/Z) | 900×650×450mm | 1200×700×500mm |
| Table t-slots(No./Width/Pitch) | 5-18-80mm | 5-18-80mm |
| Max. loading of worktable | 800kg | 1800kg |
| Spindle taper | ISO40 | ISO50 |
| Spindle speed range | 30-2050r.p.m (27steps) | 30-2050r.p.m (27steps) |
| Swivel angle of milling head | 360° | 360° |
| Table longitudinal & cross feed (X/Y) | 10-1000mm/min | 10-1000mm/min |
| Table vertical feed (Z) | 6-640mm/min | 5-500mm/min |
| Table rapid speed (X/Y/Z) | 2200/2200/1100mm/min | 2200/2200/1100mm/min |
| Distance spindle - table surface | 32-482mm | 50-550mm |
| Distance spindle - column | 47-697mm | 28-728mm |
| Main motor power | 5.5kw | 7.5kw |
| Feed motor | AC servo motor X/Y:15NM; Z: 18NM | |
| Overall dimensions (L×W×H) | 1835×2362×2090mm | 2625×2460×2080mm |
| Machine weight | 4000kg | 5000kg |
| Price (FOB China) |
| |
Standard Configuration:
Universal swivel head, Electronic hand wheel, Central lubrication, LED Work lamp, Cooling system, Draw bar
Operating tools, Operator manual
Options & Extra Cost:
3-axis SINO D.R.O, 58pcs clamping kit, Machine vise, Dividing head, Rotary table

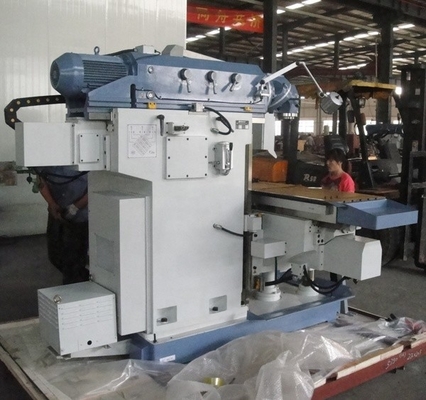

Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size: 1.9 x 2.4 x 2.1M N.W./G.W.: 4000/4250kg
Container loaded: 2 sets / 20'GP
