Customized Voltage M250 Vertical Turret Milling Machine with 2.25kW Spindle Motor Power
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE, ISO9001:2008 |
| Model Number: | M250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,000.00/sets 1-2 sets |
| Packaging Details: | Wood case (fumigated) |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 950 Mm | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 400 | Table Travel (Z) (mm): | 420 |
| Spindle Taper: | R8 | Range Of Spindle Speed(r.p.m): | 65 - 4500 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 2.25 |
| Voltage: | As Client's Request | Dimension(L*W*H): | 1520*1550*2080mm |
| Weight (KG): | 1320 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | CNC Or Not: | Normal |
| After-sales Service Provided: | Online Support, Engineers Available To Service Machinery Overseas | Milling Machine: | Machine Tools |
| Weight: | 1320kg | Power(W): | 2.25KW |
| Applicable Industries: | Manufacturing Plant | Condition: | New |
| Table Travel (mm): | 950x400x420 | Port: | Qingdao Port |
Product Description
Product Description

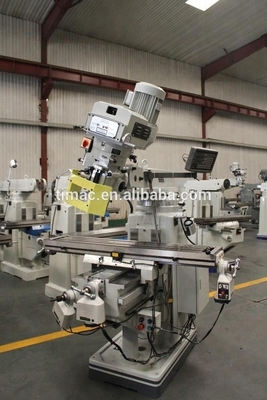

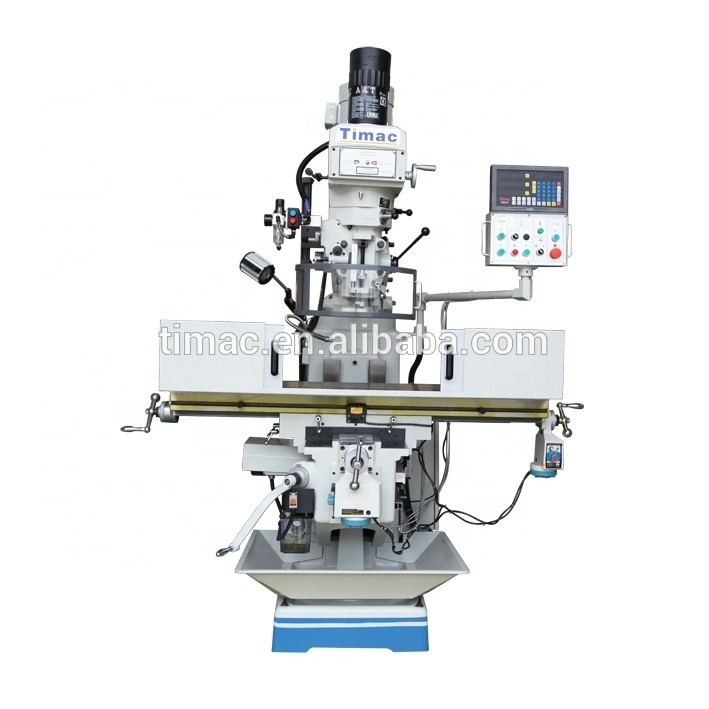

Vertical Turret Milling Machine M250
Key Feature:
• Hardened and ground table surface;
• Universal mill head can be tilted and swiveled;
• Auto. splindle feeds with 3 steps on X, Y, Z axes;
• Spindle features micrometer depth stop;
• Work table features large clamping area;
• Powerful coolant device included in machine base.
Technical Specification:
| Model | Unit | M230A | M230B | M250 | M250A | M250B | M250U | M250C | M250D | M300 | M300A | M330 | M330A | |
| Table size | mm | 230x1067 | 254x1270 | 250x1270 | 254x1270 | 305x1370 | 330x1370 | |||||||
| 230x1246 | 254x1370 | 254x1370 | 305x1500 | 330x1500 | ||||||||||
| Longitudianl travel | mm | 650 / 840 | 850 / 950 | 770 | 850 / 950 | 870 / 1000 | 840 / 1000 | |||||||
| Cross travel | mm | 305 | 420 | 400 | 420 | 380 | 368 | |||||||
| Vertical travel | mm | 400 | 420 | 400 | 420 | 430 | 450 | |||||||
| T-slot No. and size | mm | 3 x 16 | ||||||||||||
| Ram travel | mm | 312 | 470 | 500 | ||||||||||
| Distance from spindle to table | mm | 0-415 | 0-405 | 0-350 | 0-450 | |||||||||
| Spindle hole taper | Standard: R8 Optional : ISO30/ISO40 | Standard: ISO40 | ||||||||||||
| Spindle travel | mm | 127 mm | ||||||||||||
| Spindle speed | r.p.m | Standard: step 16 speed 50HZ: 65-4500 60HZ: 80-5440 | ||||||||||||
| Optional: Variable speed 65-4500 | Optional: Variable speed: 65-3750 | |||||||||||||
| Auto. quill feed | mm/r | Three steps: 0.04 (0.0015″) / 0.08 (0.003″) / 0.15(0.006″) | Three Steps: 0.04 (0.0015″) / 0.08 (0.003″) / 0.15 (0.006″) | |||||||||||
| Spindle Motor | kw/HP | 2.25kw / 3HP | 3.75kw / 5HP | 3.75kw / 5HP | ||||||||||
| Head Swivel | 90° | |||||||||||||
| Head Tilting | 45° | Fix | 45° | Fix | 45° | Fix | ||||||||
| Dimension of package | One | mm | 1400x1476x2030 | 1516x1550x2080 | 1566x1650x2080 | 1800x2016x2180 | ||||||||
| Two | mm | 1450x1570x2080 | 1650x1790x2170 | 1720x1800x2175 | 1800x2200x2180 | |||||||||
| Three | mm | 1450x2180x2080 | 1650x2285x2235 | - | - | |||||||||
| Gross Weight | kg | 1100 | 1160 | 1550 | 1380 | 1420 | 1650 | 1590 | 1590 | 1700 | 1750 | 2300 | 2350 | |
Standard Configuration:
Options & Extra Cost:

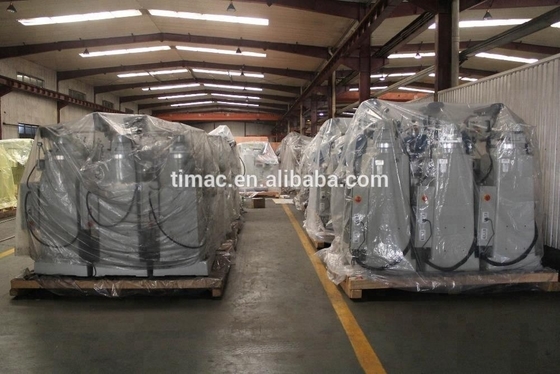

Packaging & Shipping
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size: 2.3 x 1.77 x 1.78M N.W./G.W.: 2900/3100kg
Container loaded: 3 sets / 20'GP
