ISO40 Spindle Taper Swivel Head Knee Milling Machine US320 for Versatile Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE, ISO9001:2008 |
| Model Number: | US320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,000.00/sets 1-2 sets |
| Packaging Details: | Wood case (fumigated) |
| Supply Ability: | 60 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1000 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 300 | Table Travel (Z) (mm): | 440 Mm |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 45 - 1660 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 7.5 |
| Voltage: | As Client's Request | Dimension(L*W*H): | 2294*1770*1780mm |
| Weight (KG): | 2900 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| After-sales Service Provided: | Online Support | Milling Machine: | Machine Tools |
| Power(W): | 4kw (V); 7.5kw (H) | Weight: | 2900kg |
| X-axis Travel: | 1000mm | Y-axis Travel: | 300mm |
| Z-axis Travel: | 440mm | Warranty Period: | 1 Year |
| Number Of Axes: | 2 | Condition: | New |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Romania, Malaysia, Germany, Viet Nam, Brazil, Indonesia, Russia, Thailand |
| Core Components: | Motor, Other | Table Travel (mm): | 1000x300x440 |
| Port: | Qingdao Port | ||
Product Description

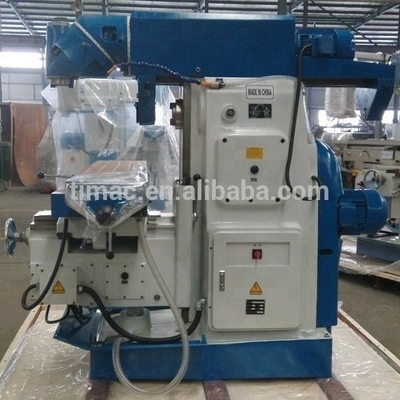

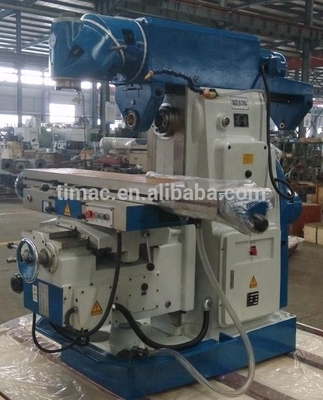

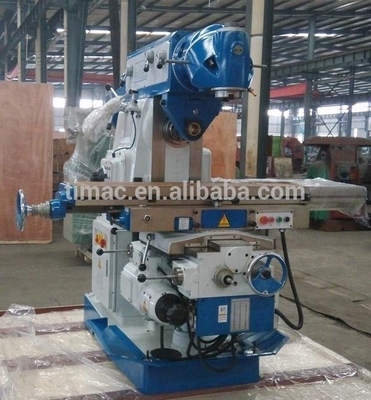

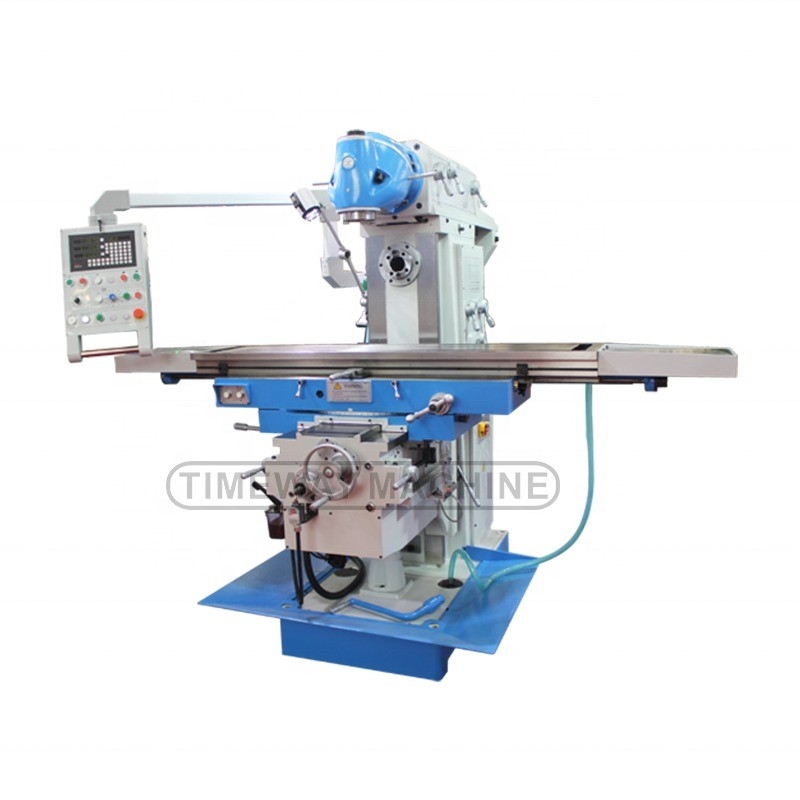

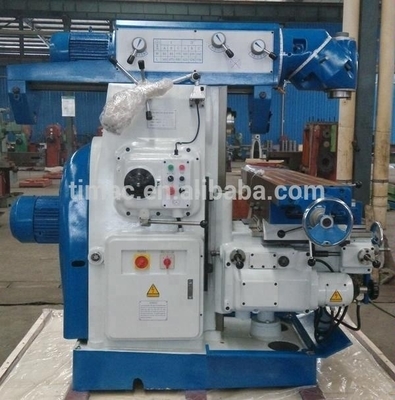

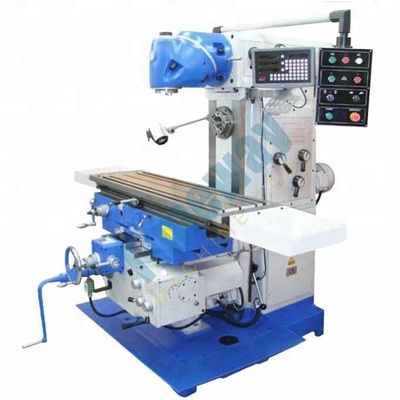

Swivel Head Knee type Milling Machine US320
Key Feature:
• Hardened and ground table surface;
• Rectangular column guideway with high stability;
• Automatic feeds on X, Y, Z axes;
• Worktable can swivel ±35°;
• Both horizontal spindle and swivel milling head.
Technical Specification:
| Model | US320W | US360W |
| Table size (W×L) | 320×1320mm | 360×1320mm |
| Table travel (X/Y/Z) | 1000×300×440mm | 1000×280×400mm |
| Table t-slots(No./Width/Pitch) | 5-14-63mm | 3-14-95mm |
| Max.rotation angle of table | - | ±35º |
| Max. loading of worktable | 300kg | 300kg |
| Spindle taper | ISO40 | ISO50 |
| Spindle speed range - Vertical | 45-1660r.p.m (11steps) | 50-1800r.p.m (11steps) |
| - Horizontal | 38-1310r.p.m (12steps) | 60-1750r.p.m (12steps) |
| Swivel angle of milling head | ±360° | ±360° |
| Table longitudinal & cross feed (X/Y) | 20-360mm/min (8steps) | 22-393mm/min |
| Table vertical feed (Z) | 422mm/min (1step) | 10-168mm/min |
| Table rapid speed (X/Y/Z) | 1200/1200/422mm/min | 1290/1205/513mm/min |
| Vertical spindle - table | 200-640mm | 170-570mm |
| Vertical spindle - column | 200-760mm | 220-720mm |
| Horizontal spindle - table | 30-450mm | 0-400mm |
| Horizontal spindle - arm | 175mm | 175mm |
| Ram travel | 460mm | 500mm |
| Main motor power | 3 kw | 4 kw |
| Feed motor | 0.55kw (X/Y), 0.75kw (Z) | 1kw (X/Y/Z) |
| Overall dimensions (L×W×H) | 2020×1710×1994mm | 2070×2025×2020mm |
| Packing size (L×W×H) | 2260×1870×2250mm | 2070×1930×2250mm |
| N.W/G.W | 2000/2200kg | 2250/2450kg |
| Price (FOB China) |
|
Standard Configuration:
7:24 Middle sleeve, Shell end mill arbor, Wrench, Inner hexagon spanner, Milling arbor, Milling Chuck, Draw bar,
Cooling system, Working light, Operator manual.
Options & Extra Cost:
3-axis SINO D.R.O, 58pcs clamping kit, Spindle guard, Machine vise, Dividing head, Rotary table
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size: 2.3 x 1.77 x 1.78M N.W./G.W.: 2900/3100kg
Container loaded: 3 sets / 20'GP
