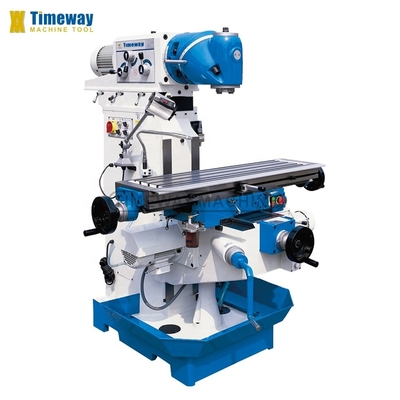

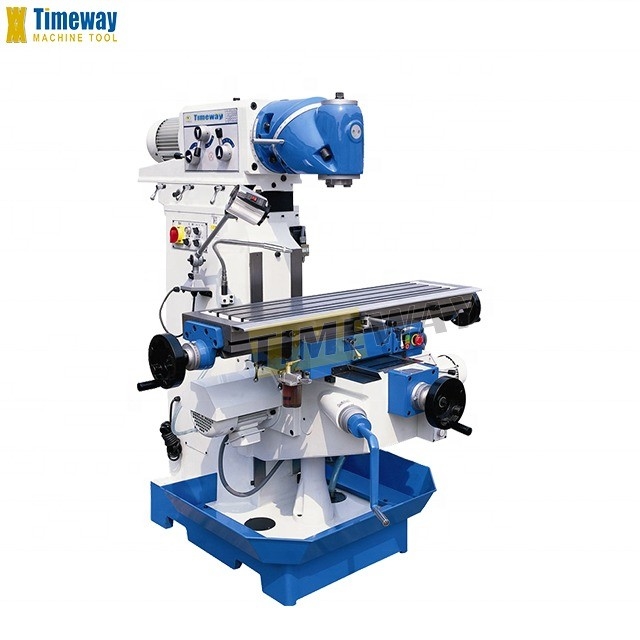

Universal Vertical Knee-Type Milling Machine US260A Machinery 2019 Hot Other Product
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | US260A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,500.00/sets 1-4 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 600 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 270 | Table Travel (Z) (mm): | 400 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 45 - 1660 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 2.2 KW |
| Voltage: | As Cutomers' Request | Dimension(L*W*H): | 1655 X 1500 X 1730 Mm |
| Weight (KG): | 1400 | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Milling Machine: | Machinery | After Warranty Service: | Online Support |
| Local Service Location: | Kenya | X-axis Travel: | 600 Mm |
| Y-axis Travel: | 270 Mm | Z-axis Travel: | 400 Mm |
| Warranty Period: | 1 Year | Main Motor Power: | 2.2 Kw |
| Net Weight: | 1400 Kg | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Showroom Location: | Colombia, Bangladesh, South Africa, Ukraine, Uzbekistan, Malaysia, Australia, United States, Philippines, Peru, Indonesia, Thailand | Core Components: | Pump, Gear, PLC, Engine, Other |
| Port: | China Port | ||
Product Description
Products Description

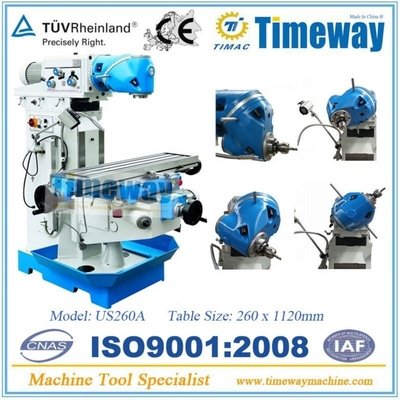

Specification | Unit | US260A |
Table size | mm | 1120x260 |
Table travel | mm | 600x270 |
Spindle taper | ISO40 | |
Spindle speed | rpm | 45-1660 |
Distance from spindle nose to table | mm | 100-480 |
Max. end milling capacity | mm | 125 |
Max. vertical milling capacity | mm | 25 |
Swivel angle of milling head | ° | 360 |
Main motor | kw | 2.2 |
Overall dimension (LxWxH) | mm | 1655x1500x1730 |
Net weight | kg | 1400 |
· Draw bar · Working lamp · Cooltant pump · Toolbox and tools · Electric cabinet | · Air draw bar · Variable speed mill head · Inverter mill head · DRO · Spindle guard |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
