3.75kW Spindle Motor Power Vertical Turret Miller Swivel Head Milling Machine for Your
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | M250C/D,M300,M330,M330A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10,000.00/sets 1-2 sets |
| Packaging Details: | in wooden case(can be fumigated) or plywood case |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 850 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 420 | Table Travel (Z) (mm): | 420 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 65 - 3750 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 3.75 |
| Voltage: | As Customer's Request | Dimension(L*W*H): | 1516*1550*2080mm |
| Weight (KG): | 1590 | Warranty: | 1year |
| Key Selling Points: | Easy To Operate | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| CNC Or Not: | Normal | Table Size: | 254*1270mm |
| Vertical Turret Miller: | Swivel Head Milling Machine | After Warranty Service: | Online Support |
| Local Service Location: | Kenya | X-axis Travel: | 850mm |
| Y-axis Travel: | 420mm | Z-axis Travel: | 420mm |
| Warranty Period: | 1 Year | Number Of Axes: | 2 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Chile, Algeria, Bangladesh, Australia, Viet Nam, Brazil, Indonesia, Mexico, Russia, Thailand | Core Components: | Motor, Pump, Other |
| Port: | China Port | ||
Product Description

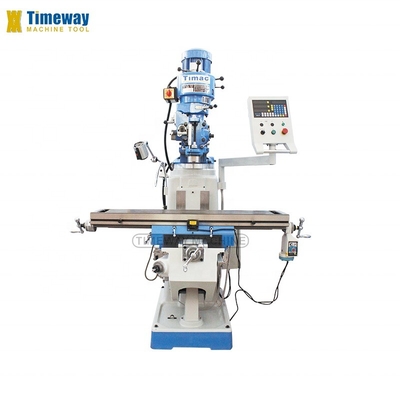

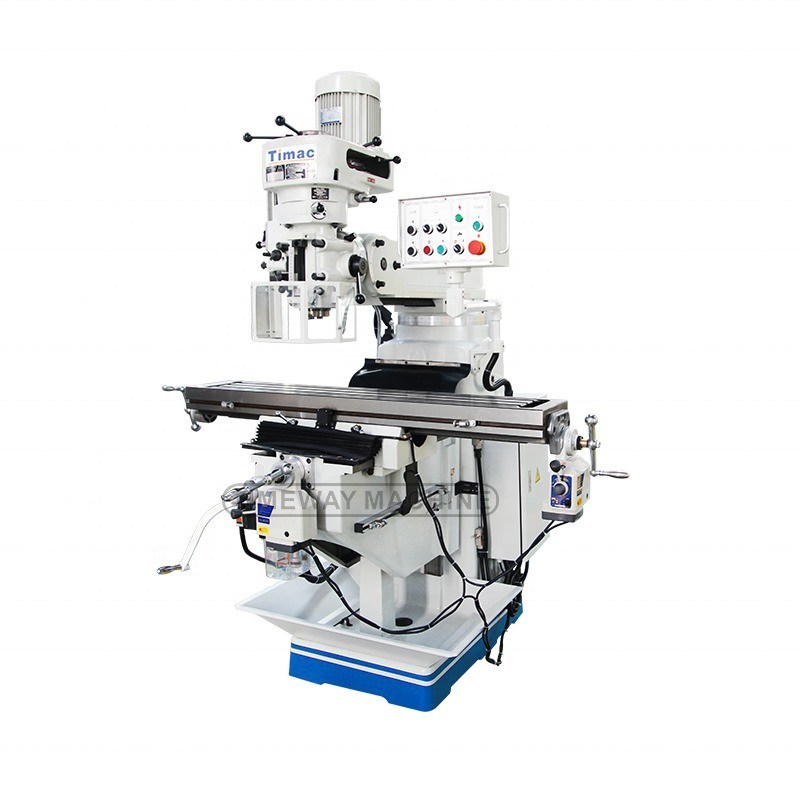

Vertical Turret Miller Swivel Head Milling Machine For Sale
Features:
M250C:
*Rectangular guide ways on Y and Z axis;
*The guide way on saddle is lined with TF wearable material;
*5HP milling head motor and quill diameter is 100mm;
*Fixed structure is used to connect the mill head without adapter;
M250D:
*Rectangular guide ways on Y and Z axis;
*The guide way on saddle is lined with TF wearable material;
* 5HP milling head motor and quill diameter is 100mm.
M250U:
*Rectangular guide ways on Y and Z axis;
*X, Y axis adopt auto feed gear box; Feed motor: 250w; Feed rate: 15, 23, 33, 48, 78, 114, 166, 257;
*The work table surface and 3 axis guide way are hardened and precision ground.
M300:
*Rectangular guide ways on Y and Z axis;
*The guide way on saddle is lined with TF wearable material;
* 5HP milling head motor and quill diameter is 100mm;
*The work table surface and 3 axis guide way are hardened and precision ground;
*Z axis adopts high speed lifting motor.
M300A:
*Rectangular guide ways on Y and Z axis;
*The guide way on saddle is lined with TF wearable material;
*5HP milling head motor and quill diameter is 100mm;
*The work table surface and 3 axis guide way are hardened and precision ground;
*Z axis adopts high speed lifting motor;
*Fixed structure is used to connect the mill head without adapter;
M330:
*Rectangular guide ways on Y and Z axis;
*The guide way on saddle is lined with TF wearable material;
* 5HP milling head motor and quill diameter is 100mm;
*The work table surface and 3 axis guide way are hardened and precision ground;
*Z axis adopts high speed lifting motor.
* Super saddle structure.
M330A:
*Rectangular guide ways on Y and Z axis;
*The guide way on saddle is lined with TF wearable material;
*5HP milling head motor and quill diameter is 100mm;
*The work table surface and 3 axis guide way are hardened and precision ground;
*Z axis adopts high speed lifting motor.
*Super saddle structure;
*Fixed structure is used to connect the mill head without adapter.

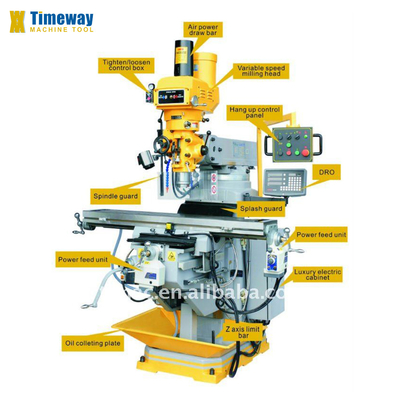

Standard Accessories:
Draw bar, Electric box, Working light, Hand Oil pump, Tool & tool box
Optional Accessories:
Digital readout sysytem(DRO), Machine vise, Power feed unit, Gear box power feed, Clamping kits, ISO30/ISO40 collect chuck, R8 collect chuck, Oil collecting plate, Plastic splash guard, Cooling system.
Parameters:
| Specification | Unit | M250C | M250D | M300 | M300A | M330 | M330A | |
| Table size | mm | 254×1270 | 305×1370 | 330×1370 | ||||
| 254×1370 | 305×1500 | 330×1500 | ||||||
| Longitudianl travel | mm | 850/950 | 870/1000 | 740/1000 | ||||
| Cross travel | mm | 420 | 380 | 368 | ||||
| Vertical travel | mm | 420 | 420 | 450 | ||||
| T-slot(NO.& Size) | mm | 3×16 | ||||||
| Ram travel | mm | 470 | 500 | |||||
| Distance from spndle to table | mm | 0-420 | 0-435 | 0-450 | ||||
| Taper of spindle hole | Standard ISO40 | |||||||
| Spindle travel | mm | 127 | ||||||
| Spindle speed | rpm | Standard:step16speed 50HZ:65-4500 60HZ:80-5440 | ||||||
| Optional:Variable speed 65-3750 | ||||||||
| Auto.feed of quill | mm/r | 3steps:0.04(0.0015")/0.08(0.003")/0.15(0.006") | ||||||
| Spindle motor | kw/HP | 3.75kw/5HP | ||||||
| Head Swivel | 90º | |||||||
| Head tilting | fix | 45º | fix | 45º | fix | |||
| Dimension of package | One | mm | 1516×1550×2080 | 1566×1650×2080 | 1800×2016×2180 | |||
| Two | mm | 1650×1790×2170 | 1720×1800×2175 | 1800×2200×2180 | ||||
| Gross weight | kg | 1590 | 1700 | 1750 | 2300 | 2350 | ||
