Rectangular Guideway Type Universal Horizontal Milling Machine Normal Miller for Metal
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC, TIMEWAY |
| Model Number: | UM320D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $9,800.00/sets 1-2 sets |
| Packaging Details: | Wooden Pallet or Wooden Case |
| Supply Ability: | 800 Set/Sets per Year |
|
Detail Information |
|||
| Table Travel (X) (mm): | 800 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 300 | Table Travel (Z) (mm): | 350 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 40 - 1300 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 2.2 |
| Voltage: | 380V/50HZ | Dimension(L*W*H): | 1700*1500*2150 |
| Weight (KG): | 1800 | Warranty: | One Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 2 Years | Table Size: | 1250*320mm(1500*320mm) |
| Table Travel(X/Y/Z): | 800*300*350mm | T-slot(No./Width/Pitch): | 3/14/70mm |
| Max. Weight Of Table: | 300kg | Guideway Type (X/Y/Z): | Dovetail/Rectangular/Rectangular |
| Spindle Speed: | 40-1300rpm(12steps) | Spindle Taper: | ISO40(H), ISO40(V) |
| Table Swing Angle: | 45deg(Left And Right) | Weight: | 1550/1800kgs |
| Power: | 2.2kw | Number Of Axes: | 2 |
| Condition: | New | Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Construction Works , Energy & Mining, Advertising Company |
| Showroom Location: | Kenya, Argentina, South Korea, UAE, South Africa, Ukraine, Italy, Germany, Indonesia, Pakistan | Core Components: | Motor, Gear |
| Table Travel (mm): | 800*300*350mm | Port: | China Port |
Product Description
Horizontal Universal Milling Machine (Normal Miller)
UM320D

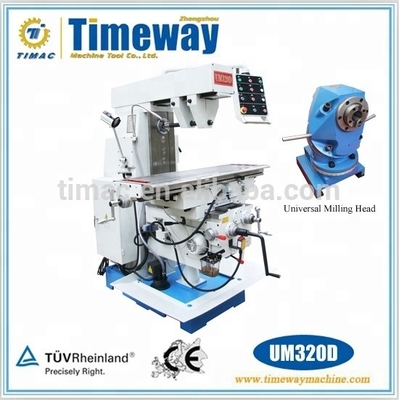

Main Outlook
Product Description
Features:
- Rigid, heavy machine frame featuring proven knee and column design.
- All three axis with automatic and rapid feeds by a gear box.

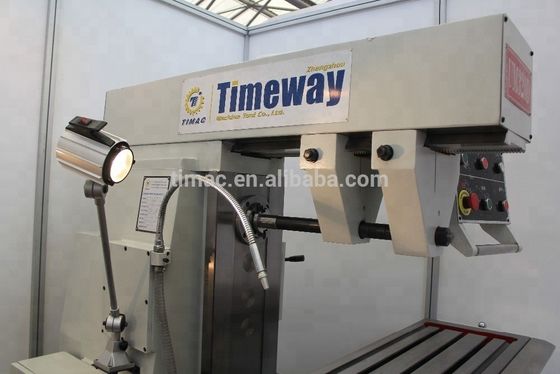

- Equipped with two hangers, ensure to cutting stability.
- Worktable swivels ±45°, can achieve inclined cutting.
- Standard equippment includes chip tray, coolant system and central lubrication system(manual or power).
- Rectangular guideway on the Y/Z axes, high stability; dovetail guideway on the X axes; all guideways and gears are hardened and ground.

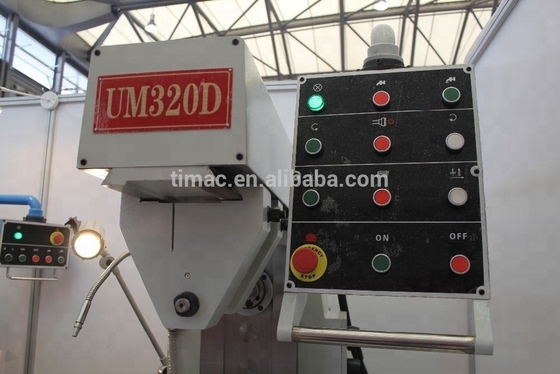

- Centralized operation panel makes operation easier and digital readout is optional.
Technical Parameter
| Specification | UM320D |
| Spindle taper | ISO40(V); ISO40(H) |
| Distance from vertical spindle nose to table | 0-390mm |
| Distance from horizontal spindle centerline to table | 0-280mm |
| Distance from vertical spindle centerline to column | 465mm |
| Distance from horizontal spindle centerline to ram bottom | 160mm |
| Spindle speed range | 12 steps, 40-1300r.p.m |
| Swivel angle of milling head | ±360° |
| Table size (L×W) | 1250×320mm (1500×320mm) |
| Table travel (X/Y/Z) | 600(800)/300/350mm (1100/300/350mm) |
| Table longitudinal & cross feed (X/Y) | 8 steps, 22-555mm/min |
| Table vertical feed (Z) | 8 steps, 17-190mm/min |
| X,Y-axis rapid feed speed | 1080mm/min |
| Z-axis rapid feed speed | 590mm/min |
| Feed motor power | 750W |
| Max.loading of worktable | 300kg |
| Table T-slots (No./Width/Pitch) | 3/14/70mm |
| Z-axis guide way type | Rectangular |
| Y-axis guide way type | Rectangular |
| X-axis guide way type | Dovetail |
| Main motor power | 2.2kw |
| Overall dimensions (L×W×H) | 1700×1500×2150mm |
| Packing size (one/two sets) | 1680×1600×2250mm/2300×1600×2250mm |
| N.W/G.W (one set) | 1650/1800kg |

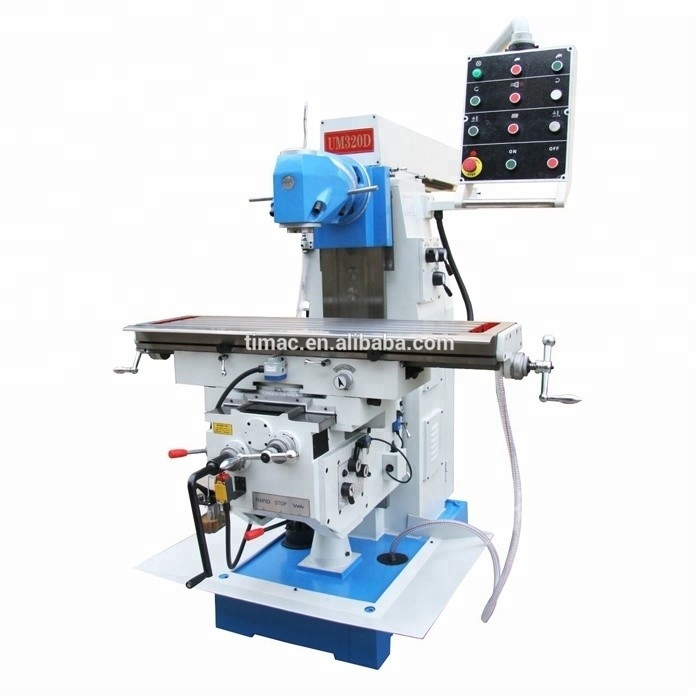

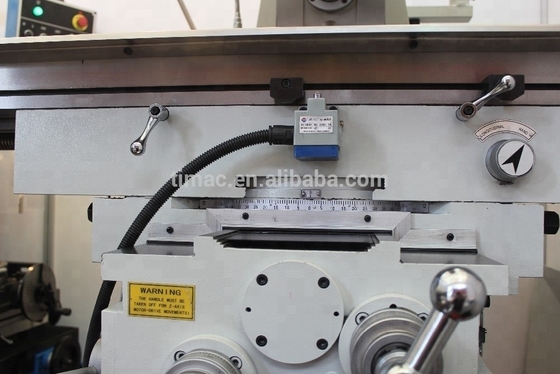

Detailed Images
Actual Picture In the Factory

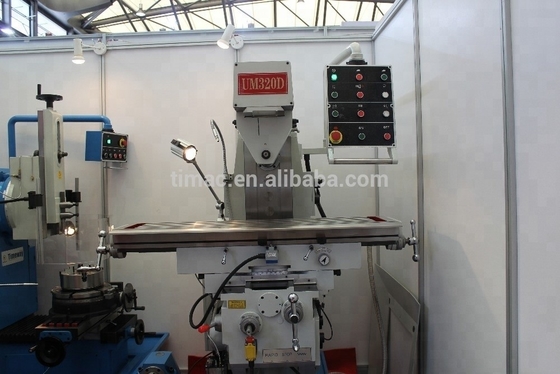

The Machine was exhibited in the China CNC Machine Tool Fair 2016(CCMT2016) in the Shanghai
Talk with the customer in the CCMT2016
