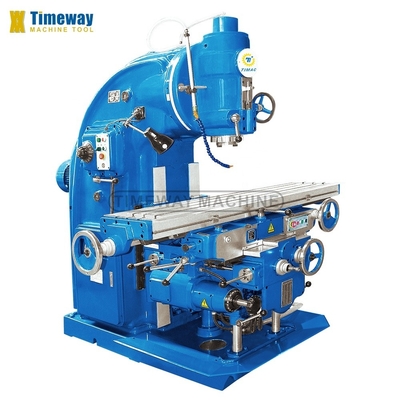

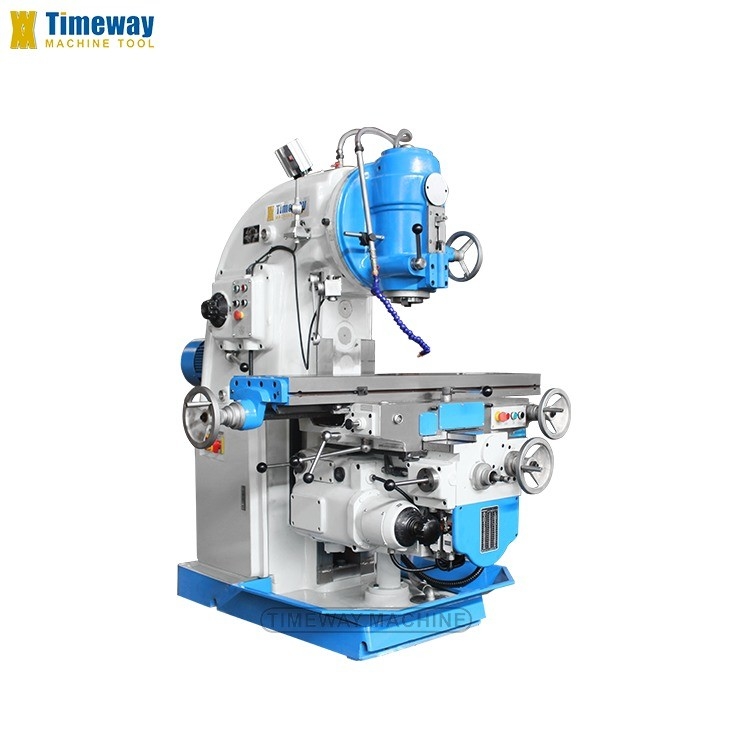

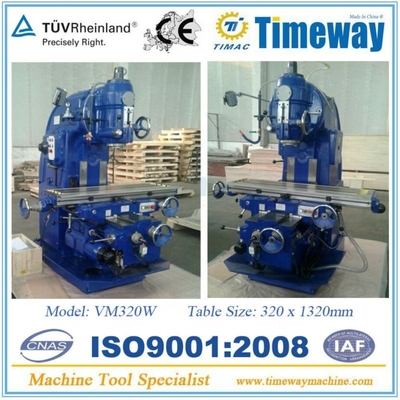

320mm Table Travel Vertical Knee Milling Machine with ±30° Spindle Head Swivel Angle Range
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | VM320W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,500.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1300 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 320 | Table Travel (Z) (mm): | 450 |
| Spindle Taper: | NO.50 | Range Of Spindle Speed(r.p.m): | 50 - 1475 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 5.5 Kw |
| Voltage: | As Cutomers' Request | Dimension(L*W*H): | 2520x2100x2150 Mm |
| Weight (KG): | 2900 | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | X Axis Travel: | 1300 Mm |
| Y Axis Travel: | 320 Mm | Z Axis Travel: | 450 Mm |
| Spindle Taper: | ISO50 | Power: | 5.5 Kw |
| Warranty Period: | 1 Year | Weight: | 2900 Kg |
| Table Size: | 1600x320 Mm | T-slot: | 3x18x70 Mm |
| Spindle Head Swivel Angle Range: | ±30° | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Showroom Location: | Chile, Algeria, Bangladesh, South Africa, Italy, Philippines, Peru, India | Core Components: | Bearing, Motor, Other |
| Table Travel (mm): | 1300x320x450 Mm | Port: | China Port |
Product Description
Products Description
Vertical knee-type milling machine is a general purpose milling machine with a wide range of uses. It is suitable for processing planes, slopes, grooves, holes, etc. of various parts. It is an ideal processing equipment for machinery manufacturing, molds, instruments, meters, automobiles, motorcycles and other industries. It has sufficient power and rigidity as well as a large range of speed regulation (spindle speed and feed), so it can make full use of carbide tools for high-speed cutting.
Specification | Unit | VM320W |
Table size | mm | 1600x320 |
Max. weight of workpiece | kg | 300 |
T-slot(Number/width/distance) | mm | 3x18x70 |
Distance from spindle center to column | mm | 378 |
Distance from spindle nose to table surface | mm | 50-500 |
Spindle head swivel angle range | ° | ±30° |
X-axis travel | mm | 1300 |
Y-axis travel | mm | 320 |
Z-axis travel | mm | 450 |
Spindle taper | - | ISO50 |
Spindle speed range | rpm | 50-1475 |
Spindle quill stroke | mm | 70 |
X-axis feed speed range | mm/min | 30-750(8steps) |
Y-axis feed speed range | mm/min | 20-500(8steps) |
Z-axis feed speed range | mm/min | 15-375(8steps) |
X/Y/Z-axis rapid feed speed | mm/min | 1200/800/600 |
Main motor power | kw | 5.5 |
Coolant pump motor power | kw | 0.09 |
Machine dimensions(LxWxH) | mm | 2520x2100x2150 |
Machine weight | kg | 2900 |
