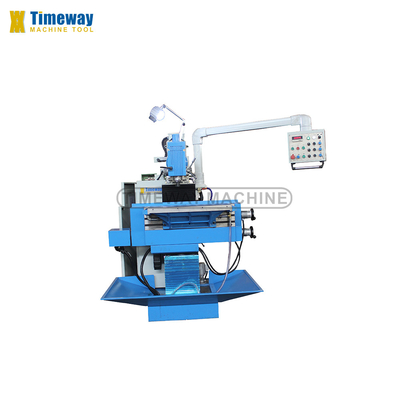

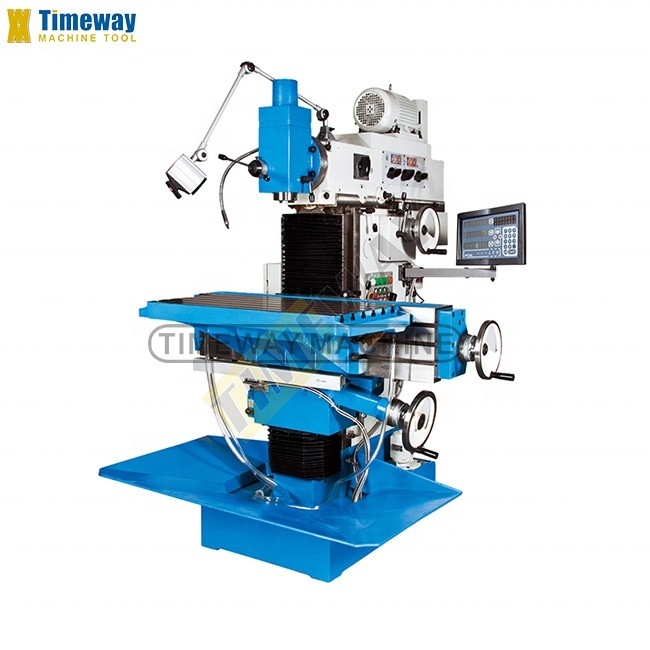

Universal Vertical Tool Milling Machine with 1400 kg Capacity 3 kw Power of Main Motor
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | UTM320A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets 1-4 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 500 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 400 | Table Travel (Z) (mm): | 400 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 40 - 2000 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 3 |
| Voltage: | As Customer's Request | Dimension(L*W*H): | 1390x1430x1820 Mm |
| Weight (KG): | 1400 | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Color: | Customized | Warranty Period: | 1 Year |
| Local Service Location: | UAE | Table Travel(X): | 500 Mm |
| Table Travel(Y): | 400 Mm | Table Travel(Z): | 400 Mm |
| Spindle Taper: | ISO40,taper 7:24 | Power Of Main Motor: | 3 Kw |
| Weight: | 1400 Kg | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Showroom Location: | South Korea, Chile, Colombia, Algeria, Romania, Bangladesh, Philippines, Indonesia, Thailand | Core Components: | Motor, PLC, Other |
| Table Travel (mm): | 1215x1200x1800mm | ||
Product Description
Products Description
Hand wheel guarantees simple and precise feed settings.
Complete with manual, automatic and rapid feed in all three axis.
Central lubrication in guideways comes standard.
Clear design of speed and feed controls.
Vertical clamping area with 5 T-slots allows clamping of work table, universal tilting table and oversize workpieces.
Optimal adjustments of spindle speed and feed allow for economic machining of various materials.
Solid grey cast-iron machine base guarantees precision and minimizes vibrations.
Ultimate machine for tool and mould construction, training, industry, model making and prototyping etc.
Hardened and polished guideways guarantee top accuracy.
Tiltable vertical milling head with spindle adjustment and three automatic drill feeds.
Complete with manual, automatic and rapid feed in all three axis.
Central lubrication in guideways comes standard.
Clear design of speed and feed controls.
Vertical clamping area with 5 T-slots allows clamping of work table, universal tilting table and oversize workpieces.
Optimal adjustments of spindle speed and feed allow for economic machining of various materials.
Solid grey cast-iron machine base guarantees precision and minimizes vibrations.
Ultimate machine for tool and mould construction, training, industry, model making and prototyping etc.
Hardened and polished guideways guarantee top accuracy.
Tiltable vertical milling head with spindle adjustment and three automatic drill feeds.

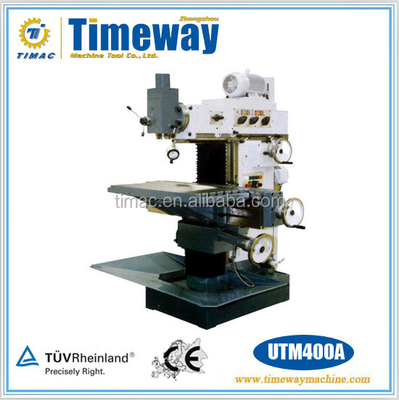

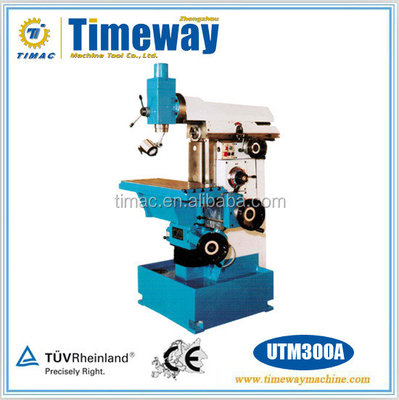

Specification | Unit | UTM300A | UTM320A | UTM400A | ||
Work space dimensions | mm | 300×750 | 320×750 | 400×800 | ||
Vertical table dimensions | mm | 225×830 | mm | 250×1060 | ||
T-slot,work table | mm | 5×14×63 | φ690 | 6×14×63 | ||
T-slot,vertical table | mm | 2×14×126 | 3×14×63 | 1000/1500/2000/3000 | ||
Longitudinal travel(X) | mm | 405(manual)/395 | 400 | 500 | ||
Transverse travel(Y) | mm | 200400 | 305(manual)/300 | 400 | ||
Vertical travel(Z) | mm | 390(manual)/380 | 400(manual)/390 | 400 | ||
Min.horizontal spindle | mm | 35 | 85±63 | 95±63 | ||
Max.horizontal spindle | mm | 425 | 485±63 | 475±63 | ||
Min.vertical spindle | mm | 85±63 | 55±63 | |||
Max.vertical spindle | mm | 440±63 | 445±63 | |||
Max.throat | mm | 188 | 160 | 540 | ||
Range of spindle speed | r/min | 40-1600 | 40-2000 | 25x25 | ||
Spindle taper | ISO40,taper 7:24 | 6 or 4T.P.I. | 6 or 4T.P.I. | |||
X,Y,Z axis feeds | mm/min | 10-380 | 35kinds, 0.059-1.646 | |||
Rapid feed | mm/min | 1200 | 35kinds, 0.020-0.573 | |||
Stroke of quill | mm | 80 | 0.1-14 (41 kinds) | 0.2-14 (47kinds) | ||
Power of main motor | kw | 2.2 | 2-112 (60 kinds) | 3 | ||
Power of feed motor | kw | 3.59 | 5 | |||
Dimensions(L×W×H) | mm | 1170×1210×1600 | 1215×1200×1800 | 1390×1430×1820 | ||
Weight | kg | 1100 | 1300 | 1400 | ||
Complete tool cutter arbor(dia. φ 16,22,27,32mm) Reducing sleeves(Morse1,2,3) Spring collect(dia. φ 2,3,4,5,6,8,10,12mm) | Dividing head Machine vice Universal angular table Rotary table Boring head 3-axis digital position indicator |
