Heavy Duty Bed Type Universal Milling Machine BM715 with Table Travel of 1500x670x700mm
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | BM715, BM715 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,800.00/sets 1-2 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 100 Set/Sets per Year |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1500 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 670 | Table Travel (Z) (mm): | 670 |
| Spindle Taper: | 7:24 | Range Of Spindle Speed(r.p.m): | 40 - 1600 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 7.5 |
| Voltage: | As Requirement | Dimension(L*W*H): | 4925x2380x2750mm |
| Weight (KG): | 7300 | Warranty: | One Year |
| Key Selling Points: | High-accuracy | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Color: | Customer Requirement |
| Power: | 7.5KW | Weight: | 7300kg |
| Longitudinal Travel: | 1500mm | Cross Travel: | 670mm |
| Vertical Travel: | 670mm | Warranty Period: | 1 Year |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant | Showroom Location: | South Africa, Uzbekistan, Germany, Brazil, India, Russia |
| Core Components: | Bearing, Motor, Gear, Gearbox | Table Travel (mm): | 1500x670x700 |
| Port: | China Port | ||
Product Description

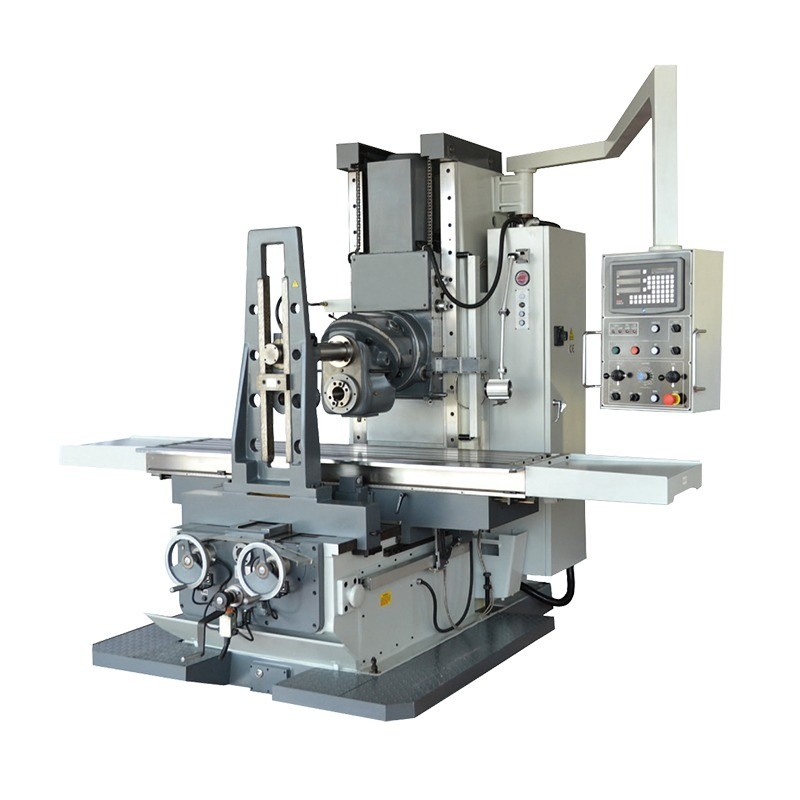

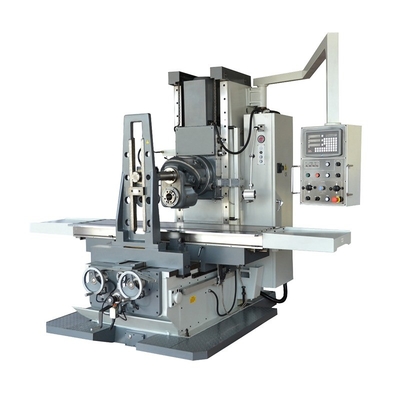

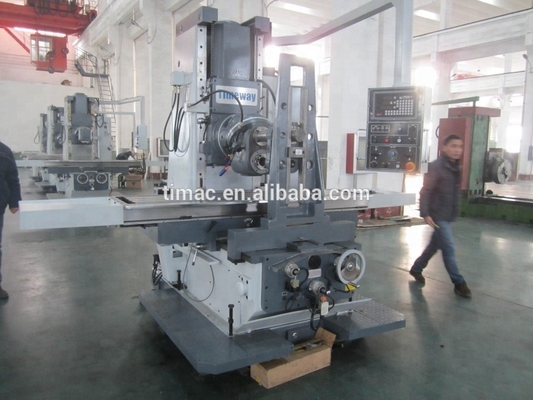

Bed type universal milling machine BM715
Features:
Large machine bed, wide column, plus high intrinsic weight - Power package for machining of large parts and heavy-duty chip removal capacity.
1. An extremely rigid, large-sized box-column design, made of premium cast-iron, provides a solid base for optimum work results.
2. Extra wide guideways ensure maximum stability and precision at high loads.
3. Extra long table travel distance (1500mm) and large table setup area (2100 x 500 mm) allow machining of large single parts or interactive machining of several parts - to give you a leading edge over your competition.
4. Wide spindle speed range from 40 to 1600 rpm.
5. Infinitely variable linear and cross feed.

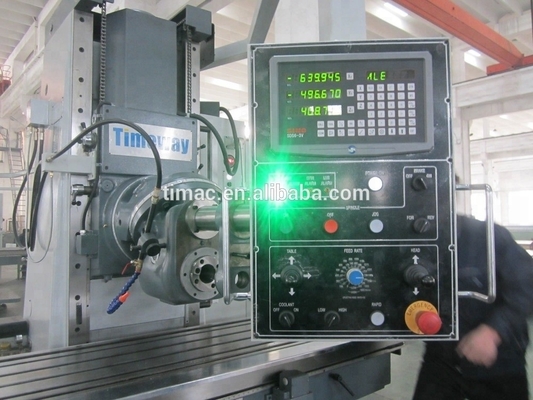

6. Control panel on a long extending arm that can be ideally positioned by the operator.
| Specification | Unit | BM715 | |
| Table | |||
| Working surface (L×W) | mm | 2100×500 | |
| T-slot (W×No.) | mm×piece | 20×4 | |
| Max. travel | Longitudinal | mm | 1500 |
| Cross | mm | 670 | |
| Long & cross power feed | Change no. | stepless | |
| Change range | mm/min | 20~1800 | |
| Long & cross rapid feed | mm/min | 3500 | |
| Head | |||
| Travel (from table surface) | Vertical | mm | 0~670 |
| Horizontal | mm | 8~708 | |
| Vertical power feed | Change no. | No step | |
| Change range | mm/min | 10~900 | |
| Vertical rapid feed | mm/min | 1750 | |
| Spindle | |||
| Distance from spindle axis to guideway of column | mm | 610 | |
| Spindle revolution | Change No. | 12 steps | |
| Change range | r.p.m. | (60HZ)40-1600 (50HZ)35-1345 | |
| Taper of spindle | 7:24 | ||
| Motor | |||
| Spindle drive motor | kW | 7.5 | |
| Feed motor | kW (AC) | 2 | |
| Cooling pump motor | W | 550 | |
| Lubricant pump motor | W | 120 | |
| Necessary floor space | mm | 4925×2380 | |
| Machine net weight | Kg | 7300 | |
| Why choose TIMEWAY MACHINE? |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
