Horizontal Spindle Speed Knee-type Universal Milling Machine with Swivel Milling Head
Product Details:
| Place of Origin: | China |
| Brand Name: | Timac |
| Model Number: | USN320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,500.00/sets >=2 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 1000 Set/Sets per Year |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1000 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 300 | Table Travel (Z) (mm): | 410 |
| Spindle Taper: | NT40 | Range Of Spindle Speed(r.p.m): | 30 - 1500 R.p.m |
| Type: | VERTICAL | Voltage: | As Requirement |
| Dimension(L*W*H): | 2327x1792x2000mm | Weight (KG): | 3500 |
| Warranty: | One Year | Key Selling Points: | High Productivity |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Machine Type: | Universal Swivel Head Milling Machine |
| Worktable Size: | 1320x320mm | Max. Load Capacity: | 550kg |
| Vertical Spindle Speed: | 52-1400rpm(12steps) | Horizontal Spindle Speed: | 30-1500rpm(18steps) |
| Spindle Taper: | 7:24 | X-axis Travel: | 800mm |
| Y-axis Travel: | 300mm | Z-axis Travel: | 410mm |
| Number Of Axes: | 3 | Condition: | New |
| Showroom Location: | Algeria, South Africa, Ukraine, Kyrgyzstan, Malaysia, Australia, Canada, France, Brazil, Peru | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction Works , Food & Beverage Shops, Other |
| Core Components: | Bearing, Motor, Gearbox, Other | Port: | China Port |
Product Description

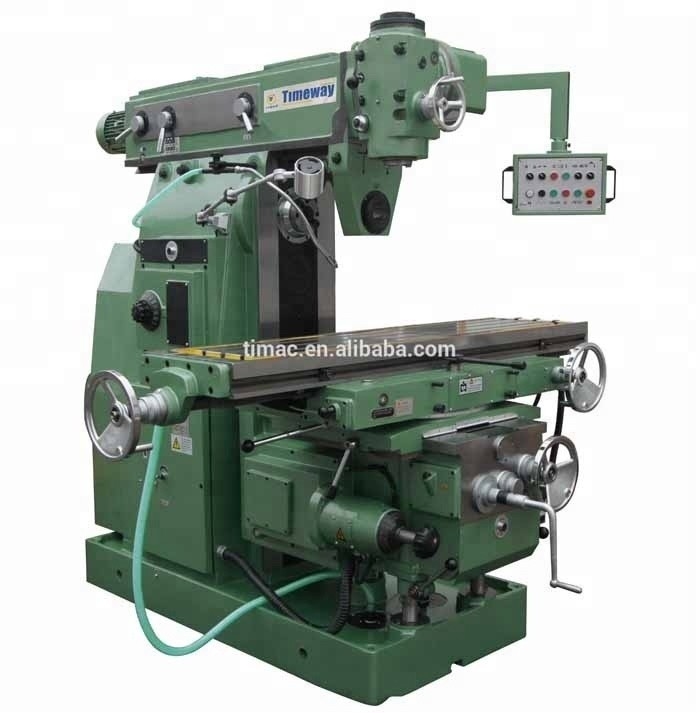

Knee-type Universal Milling Machine with Swivel Milling Head
USN320 USN420
Features:
This series universal milling machine install one swivel milling head on universal knee-type milling machine. The flexible swivel milling head sleeve to match up direction movement, also it can be used for milling bevel, drilling, reaming or fine boring and processing inclined shallow hole.
1. Mounted with different face milling cutter, cylindrical milling cutter, side milling cutter, angle milling cutter and formed milling cutter, drill, boring cutter, the machine is suitable to process flat, inclined surface, slots, arbitrary angle hole, gear and miscellaneous work pieces.
2. Adapted with optional accessories, such as dividing head and rotary table, machine can be applicable to versatile processing.
The movement direction is changed through mechanical clutch. Inside the feed gear box, mechanical clutch instead of magnetic clutch to protect machine parts and electric components and prolong lifetime.
3. Complete coolant and lubrication system.
4. DRO is optional.
Techncial Parameter:
| Specification | Unit | USN320 | USN420 |
| Capacity | |||
| Worktable(width×length) | mm | 1320×320 | 1800×420 |
| T slots | mm | 3×18 | 3×18 |
| Distance between t slots | mm | 80 | 90 |
| Max.load bearing of worktable | kg | 550 | 800 |
| Travel | |||
| X axis (manual/power) | mm | 800/780 | 1200/1180 |
| Y axis (manual/power) | mm | 300/280 | 360/3500 |
| Z axis (manual/power) | mm | 410/400 | 470/450 |
| Spindle | |||
| Vertical spindle hole taper |
| 7:24, ISO40# | 7:24, iso40# |
| Horizontal spindle hole taper |
| 7:24, ISO50# | 7:24, iso50# |
| Vertical spindle hole diameter |
| Φ20 | Φ20 |
| Horizontal spindle hole diameter |
| Φ29 | Φ29 |
| Vertical spindle front bearing diameter |
| Φ95 | Φ95 |
| Horizontal spindle front bearing diameter |
| Φ100 | Φ100 |
| Vertical spindle speed steps |
| 12 | 12 |
| Vertical spindle speed range | r/min | 52-1400 | 52-1400 |
| Horizontal spindle spped steps |
| 18 | 18 |
| Horizontal spindle spped range | r/min | 30-1500 | 30-1500 |
| Feed | |||
| Feed speed steps |
| 18 | 18 |
| Feed speed range:Longitudinal X | mm/min | 15-750 | 22-1100 |
| Feed speed range:Cross Y | mm/min | 15-750 | 22-1100 |
| Feed speed range:Vertical Z | mm/min | 5.7-280 | 8.3-410 |
| Rapid feed range:Longitudinal X | mm/min | 2250 | 2400 |
| Rapid feed range:Cross Y | mm/min | 2250 | 2400 |
| Rapid feed range:Vertical z | mm/min | 844 | 900 |
| Power source | |||
| Main motor power | kw | 7.5 | 11 |
| Main motor revolving speed | r/min | 960 | 960 |
| Feed motor power | kw | 1.5 | 3 |
| Feed motor revolving speed | r/min | 960 | 1420 |
| Coolant pump power | kw | 0.12 | 0.12 |
| Coolant pump revolving speed | l/min | 2760 | 2760 |
| Vertical milling head motor power | kw | 3 | 3 |
| Vertical milling head motor revolving speed | r/min | 1420 | 1420 |
| Others | |||
| Max. Rotary angle of table |
| ±45° | ±45° |
| Universal milling head rotary angle |
| 360° | 360° |
| Distance from horizontal spindle face to worktable | mm | 30-440 | 30-500 |
| Distance from horizontal spindle center to arm | mm | 155 | 201 |
| Distance from verical spindle face to horizontal spiddle center | mm | 15-95 | 60-140 |
| Vertal travel of vertical spindle | mm | 80 | 80 |
| Machine dimension | mm | 2327×1792×2000 | 2522×2262×2210 |
| Machine weight | kg | 3500 | 5300 |
