Vertical and Horizontal Spindle Milling Drilling Machine for Your Manufacturing Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE ISO |
| Model Number: | MDW500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10,000.00/sets 1-2 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Drilling & Milling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 50 | Range Of Spindle Speed(r.p.m): | 90 - 2000 R.p.m |
| CNC Or Not: | Normal | Drilling Speed: | Normal Speed |
| Voltage: | Customer's Requirement | Dimension(L*W*H): | 1520x1285x2150mm |
| Power (kW): | 2.2 | Weight (KG): | 1350 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Showroom Location: | Chile, South Africa, Malaysia, Australia | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Other |
| Marketing Type: | Other | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Other | Color: | Customizable |
| Table Size: | 1120x260mm | X/Y-axis Travel: | 600/300mm |
| Spindle Taper: | ISO40 | Spindle Speed (rpm): | 90-2000(V),38-1310(H) |
| Power: | 2.2kw | Max.drilling Capacity: | 50mm |
| After Warranty Service: | 1 Year | Machine Type: | Small Milling Drilling Machine |
| Port: | China Port | ||
Product Description

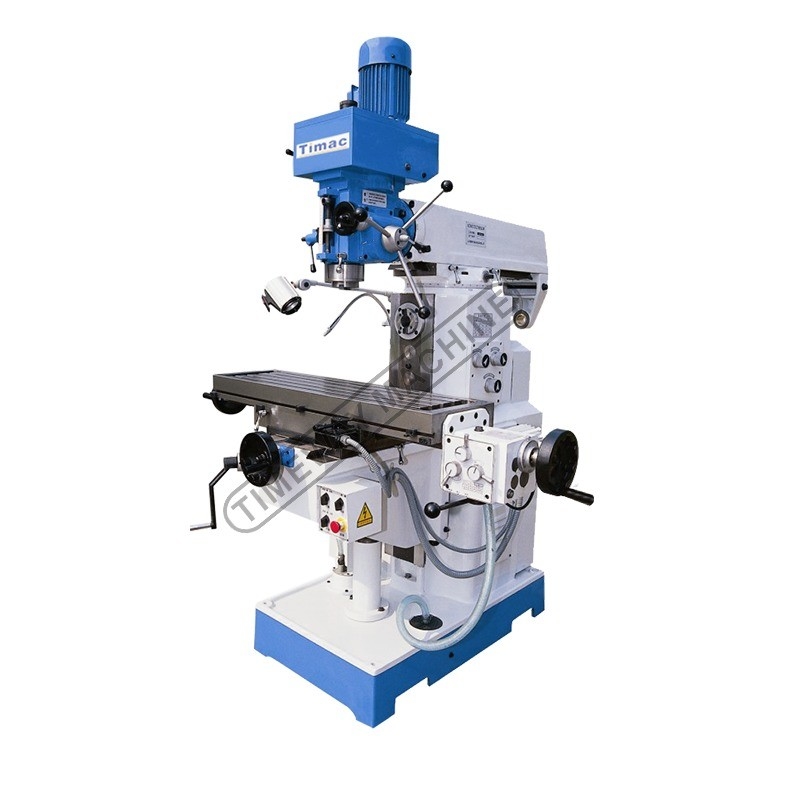

Universal Milling Drilling Machine
MDW500
Features:
» Hardened and ground table surface.
» Automatic feeds on X/Y-axis, motorized rise and fall of table on the Z-axis.
» Headstock swivels ±90°, ram swivels ±180°.
» Vertical and horizontal spindles with 8-steps speed by gear changing.
» Table with swiveling ±45°is chosen, increase machining range.
» Deep scale and micro-feed hand-wheel are standard equipment.
» Coolant system and chip collection tray are included in standard equipment, but 3-axis DRO. is optional accessory.
Standard:
Coolant system, Oil collecting plate, Work lamp, Elevating rotary handle, Drill chuck, Mill collets, Draw bar, Machine vise, Wrench, Spanner, Middle sleeve, Operation manual(English edition).
Optional:
3 axes DRO, 58pcs clamping kits,Rotary table, Dividing head, Variable frequency motor, Universal milling head.
Technical parameter:
| Model | Unit | MDW500 |
| Table size | mm | 1120×260 |
| Table travel | mm | 600/300 |
| Spindle taper | ISO40 | |
| Spindle speed range | r.p.m | 90-2000(V),38-1310(H) |
| Max.drilling capacity | mm | 50 |
| Automatical drilling dia. | mm | 14 |
| Max.end milling dia. | mm | 100 |
| Max.vertical milling dia. | mm | 25 |
| Max.tapping dia. | M16 | |
| Distance from spindle nose to table | mm | 100-430 |
| Spindle travel | mm | 120 |
| Main motor | kw | 2.2 |
| Overall dimension(L×W×H) | mm | 1520×1285×2150 |
| Net weight | kg | 1350 |
If you have any queries please give us a
call or send us a message.
We will be happy to assist you!
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 114x122x222CM N.W./G.W.: 850/1050KGS
Two pieces in one case: 114x122x222CM N.W./G.W.: 1700/1900KGS
Container loaded: 3 sets / 20'GP
