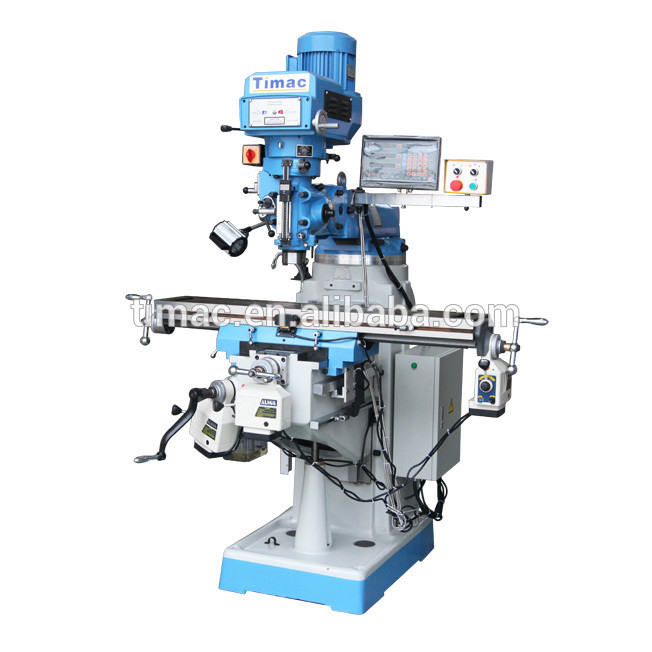

VERTICAL Turret Milling Machine M330A with R8 Spindle Taper and 330x1370 Table Size

Vertical Turret Milling Machine

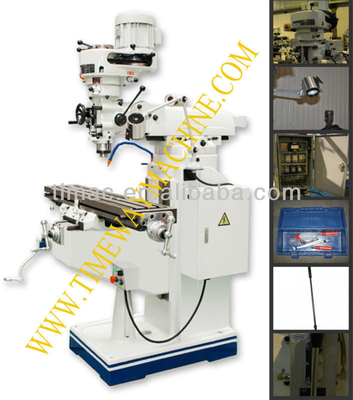

                                                     Stardard Configuration                                                                                        Optional confifuration

Vertical Turret Milling Machine

Features:

  M230A:

*Double 55°dovetail guide way is adopted on Both Y and Z axis;

*Adopted strengthen rib on both sides of the column;

*The work table surface and 3 axis guide way are hardened and precision ground.

  M230B:

*Double 55°dovetail guide way is adopted on Z axis, and rectangular guide way on Y axis;

*Adopted strengthen rib on both sides of the column;

*The work table surface and 3 axis guide way are hardened and precision ground.

  M250A:

*Double 55°dovetail guide way is adopted on Both Y and Z axis;

*The guide way on saddle is lined with TF wearable material;

*The work table surface and 3 axis guide way are hardened and precision ground.

  M250B:

*Double 55°dovetail guide way is adopted on Z axis, and rectangular guide way on Y axis;

*The guide way on saddle is lined with TF wearable material;

*The work table surface and 3 axis guide way are hardened and precision ground.

  M250:

*Rectangular guide ways on Y and Z axis;

*The guide way on saddle is lined with TF wearable material.

  M250C:

*Rectangular guide ways on Y and Z axis;

*The guide way on saddle is lined with TF wearable material;

* 5HP milling head motor and quill diameter is 100mm;

*Fixed structure is used to connect the mill head without adapter;

  M250D:

*Rectangular guide ways on Y and Z axis;

*The guide way on saddle is lined with TF wearable material;

* 5HP milling head motor and quill diameter is 100mm.

  M250U:

*Rectangular guide ways on Y and Z axis;

*X, Y axis adopt auto feed gear box; Feed motor: 250w; Feed rate: 15, 23, 33, 48, 78, 114, 166, 257;

*The work table surface and 3 axis guide way are hardened and precision ground.

  M300:

*Rectangular guide ways on Y and Z axis;

*The guide way on saddle is lined with TF wearable material;

* 5HP milling head motor and quill diameter is 100mm;

*The work table surface and 3 axis guide way are hardened and precision ground;

*Z axis adopts high speed lifting motor.

  M300A:

*Rectangular guide ways on Y and Z axis;

*The guide way on saddle is lined with TF wearable material;

* 5HP milling head motor and quill diameter is 100mm;

*The work table surface and 3 axis guide way are hardened and precision ground;

*Z axis adopts high speed lifting motor;

*Fixed structure is used to connect the mill head without adapter;

  M330:

*Rectangular guide ways on Y and Z axis;

*The guide way on saddle is lined with TF wearable material;

* 5HP milling head motor and quill diameter is 100mm;

*The work table surface and 3 axis guide way are hardened and precision ground;

*Z axis adopts high speed lifting motor.

* Super saddle structure.

M330A:

*Rectangular guide ways on Y and Z axis;

*The guide way on saddle is lined with TF wearable material;

* 5HP milling head motor and quill diameter is 100mm;

*The work table surface and 3 axis guide way are hardened and precision ground;

*Z axis adopts high speed lifting motor.

* Super saddle structure;

*Fixed structure is used to connect the mill head without adapter.

***Standard accessories:

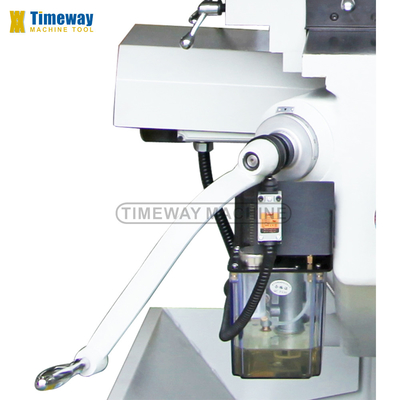

Draw bar, Electric box, Working light, Hand oil pump, Tool & tool box

***Optional accessories:

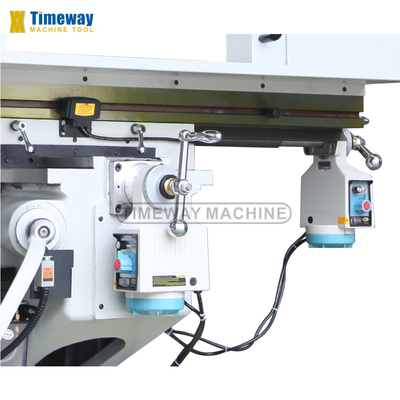

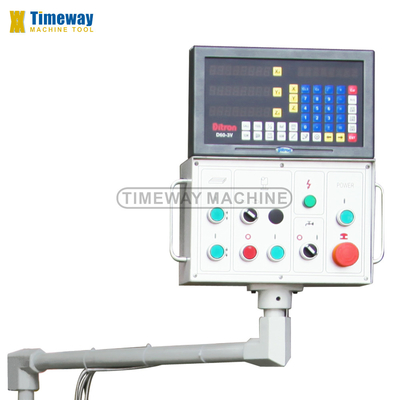

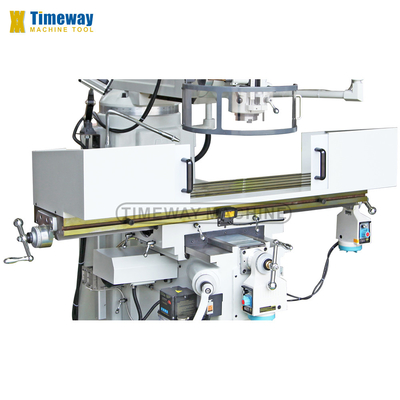

Digital readout system(DRO), Machine vise, Power feed unit, Gear box power feed,  Clamping kits,  ISO40 collet chuck, R8 collet chuck, Oil collecting plate, Plastic splash guard, Cooling system
