15kW Spindle Motor Vertical Knee Milling Machine for Versatile Milling Applications
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE, ISO |
| Model Number: | VM500W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets >=1 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1530 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 360 | Table Travel (Z) (mm): | 630 |
| Spindle Taper: | 7:24 | Range Of Spindle Speed(r.p.m): | 45 - 1800 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 15 |
| Voltage: | As Request | Dimension(L*W*H): | 2250x3200x2340mm |
| Weight (KG): | 5200 | Warranty: | One Year |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Machine Type: | Vertical Knee-type Milling Machine | Color: | Cusomer Request |
| Table Size: | 500x2000mm | X/Y/Z Travel: | 1530/360/630mm |
| Spindle Speed: | 45-1800rpm(17steps) | Weight: | 5200kg |
| Power: | 15kw | Number Of Axes: | 2 |
| Condition: | New | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction Works , Energy & Mining |
| Showroom Location: | Colombia, South Africa, Uzbekistan, Malaysia, Australia, Canada, United Kingdom, Brazil | Core Components: | Bearing, Motor, Pump, Engine |
| Table Travel (mm): | 1530/360/630mm | Year: | 2022 |
| Port: | China Port. | ||
Product Description
Summary
The vertical knee-type milling machine is a general purpose machine which can be used in wide range. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous workpiece.
Product Description

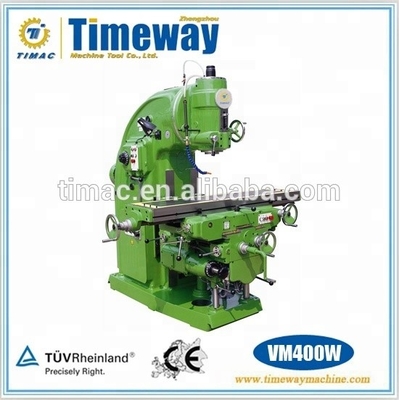

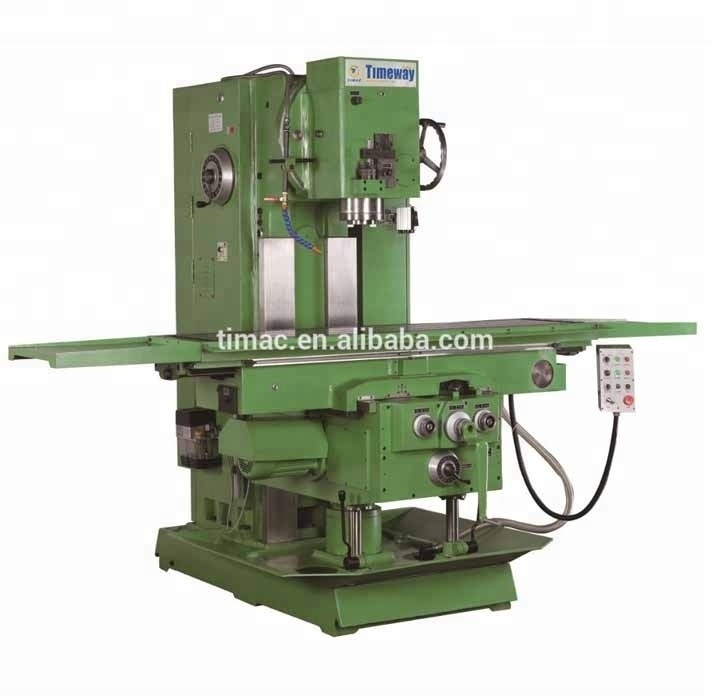

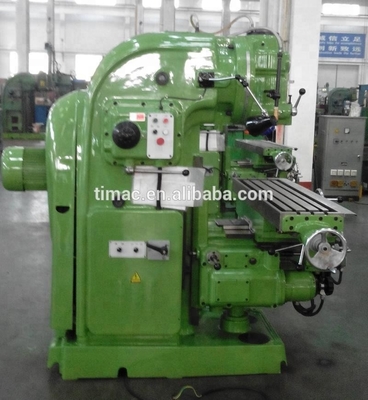

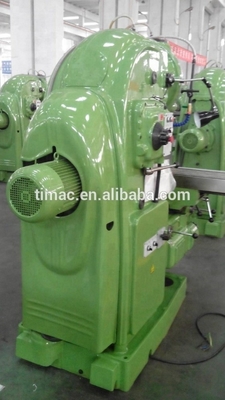

Vertical Knee-type Milling Machine
Feature：
* Equipped with optional accessories, such as rotary table and dividing head, machine can be applicable to versatile processing. It is an ideal machine tool for machining process, maintenance, instrument, die and molds.
* Vertical milling head can rotate ±45°. Spindle quill can move vertically. Worktable is applied to automatic and rapid feed.
* Hardened and ground slide ways ensure high accuracy.
* With high motor power and wide range speed, machine adapts to high speed cutting when using hard alloy cutters.
* With enough rigidity, machine can bear heavy duty processing.
* Complete coolant and lubrication system, DRO equipment is optional.
* Vertical milling head can rotate ±45°. Spindle quill can move vertically. Worktable is applied to automatic and rapid feed.
* Hardened and ground slide ways ensure high accuracy.
* With high motor power and wide range speed, machine adapts to high speed cutting when using hard alloy cutters.
* With enough rigidity, machine can bear heavy duty processing.
* Complete coolant and lubrication system, DRO equipment is optional.
Specification
Specification | Unit | VM320W | VM400W | VM500W |
Worktable size | mm | 320x1320 | 400x1600 | 500x2000 |
Number of T-slots and slot width | mm | 3x18 | 3x18 | 5x18 |
Distance between T-slots | mm | 70 | 90 | 80 |
Max.longitudinal travel(manual/motor) | mm | 700/680 | 900/880 | 1530/1520 |
Max.cross travel(manual/motor) | mm | 255/240 | 315/300 | 360/345 |
Max.vertical travel(manual/motor) | mm | 370/350 | 385/365 | 630/610 |
Main motor | kw | 7.5 | 11 | 15 |
Net weight of machine | kg | 2800 | 4250 | 5200 |
Overall dimensions (L×W×H) | mm | 2294x1770x1960 | 2556x2159x2298 | 2250x3200x2340 |
Positive Comments From Customers
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile

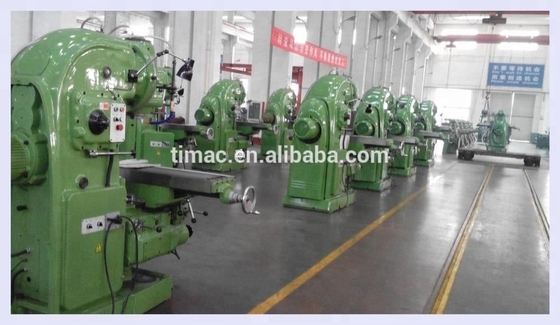

Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
