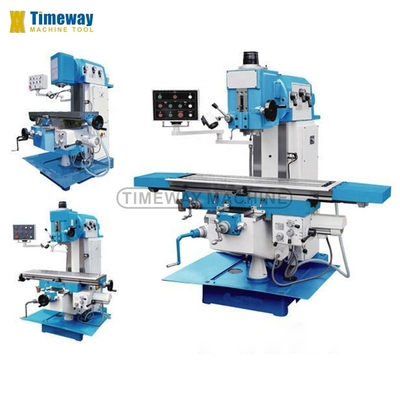

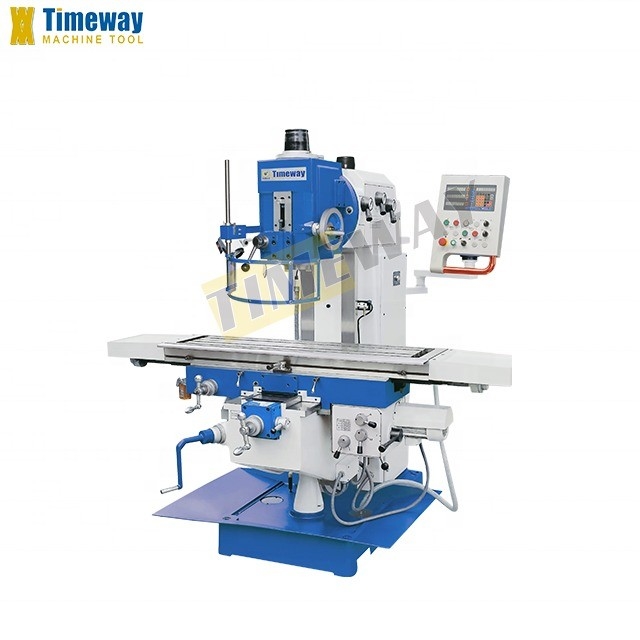

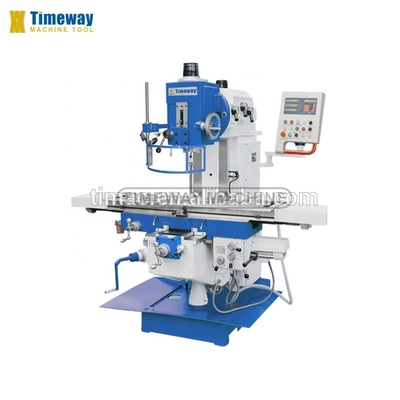

1000mm X-axis Travel ISO50 Spindle Taper Milling Machine for Heavy Duty Cutting Tasks
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | WVM320C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,500.00/sets 1-2 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1000 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 300 | Table Travel (Z) (mm): | 360 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 58 - 1710 R.p.m |
| Type: | VERTICAL | Voltage: | As Request |
| Dimension(L*W*H): | 1700x1820x1880 Mm | Weight (KG): | 2300 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | CNC Or Not: | Normal |
| Vertical Knee-type Milling Machine: | Vertical Knee-type Milling Machine | After Warranty Service: | Video Technical Support |
| Local Service Location: | Malaysia | X-axis Travel: | 1000 Mm |
| Y-axis Travel: | 300 Mm | Z-axis Travel: | 360 Mm |
| Main Motor: | 4 Kw | Machine Weight: | 2300 Kg |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other | Showroom Location: | Kenya, South Korea, Chile, Colombia, Algeria, Romania, Germany, Indonesia, Thailand |
| Core Components: | Motor, Other | Port: | China Port. |
Product Description
Products Description
1. Hardened and ground table surface;
2. Automatic feeds on X, Y axes, motorized rise and fall of table on Z axis;
3. Rectangular column guide way with high
stability.
2. Automatic feeds on X, Y axes, motorized rise and fall of table on Z axis;
3. Rectangular column guide way with high
stability.
Specification | Unit | WVM320A | WVM320B | WVM320C |
Spindle taper | ISO50 | ISO50 | ISO50 | |
Distance from spindle nose to table | mm | 45-445 | 35-435 | 35-435 |
Distance from spindle axis to column guideway | 320 | 360 | 360 | |
Spindle speed | r.p.m | 58-1710 | 58-1710 | 58-1710 |
Table size | mm | 1320X320 | 1320X320 | 1320X320 |
Table travel(Longitudinal/Cross) | mm | 800(750)X300 | 800(750)X300 | 1000X300(manual) |
T slot(No./width/distance) | mm | 5/14/63 | 5/14/63 | 5/14/63 |
Main motor | kw | 4 | 4 | 4 |
Overall dimension | mm | 1700x1820x1880 | 1770x1820x1880 | 2020x1820x1880 |
Machine weight | kg | 2300 | 2300 | 2300 |
· Draw bar · Electric box · Working light · Hand oil pump · Tool & tool box | · DRO · Machine vise · Power feed unit · Gear box power feed · Clamping kits · Collet chuck · Oil collecting plate |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
