VM360A Vertical Knee-type Milling Machine with Range of Spindle Speed 60 1700 r.p.m
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE, ISO |
| Model Number: | VM360A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,450.00/sets >=1 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 600 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 320 | Table Travel (Z) (mm): | 450 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 60 - 1700 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 4 |
| Voltage: | As Request | Dimension(L*W*H): | 1900x1850x1800mm |
| Weight (KG): | 2100 | Warranty: | One Year, 1year |
| Key Selling Points: | High-accuracy | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| CNC Or Not: | Normal | Vertical Knee-type Milling Machine: | Vertical Knee-type Milling Machine |
| Power: | 4kw | Weight: | 2100,2200kg |
| X Axis Working Table Stroke: | 600mm | Y Axis Working Table Stroke: | 320mm |
| Z Axis Working Table Stroke: | 450mm | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant |
| Showroom Location: | Malaysia, Turkey, Brazil, Indonesia | Core Components: | Other |
| Table Travel (mm): | 600X320x450 | Year: | 2022 |
| Port: | China Port. | ||
Product Description

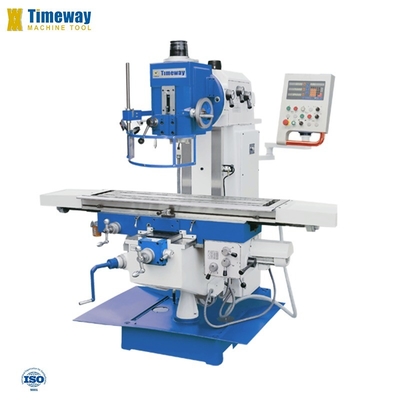

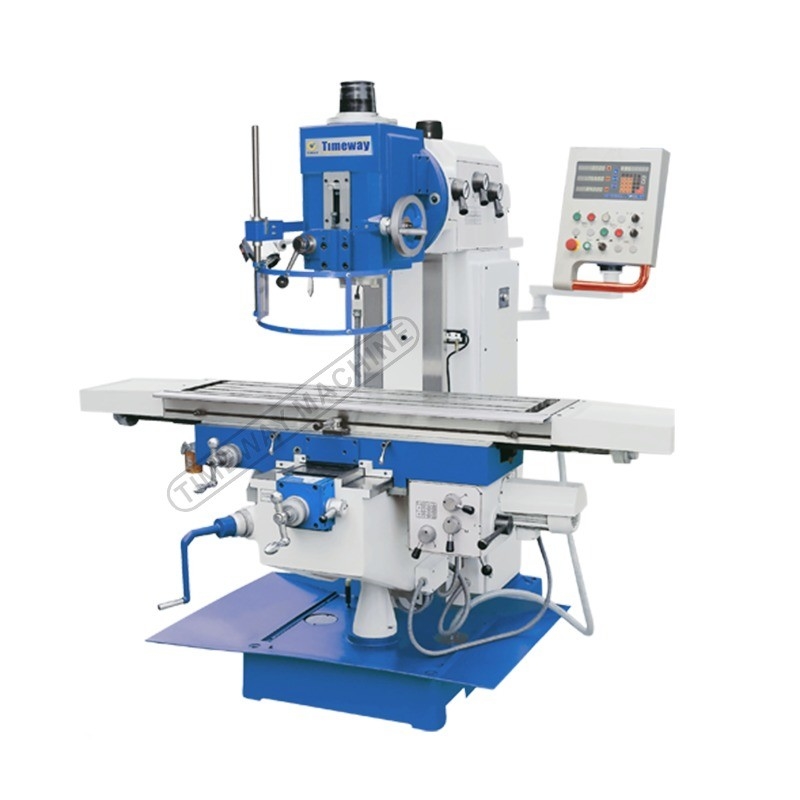

Vertical Knee-type Milling Machine VM360A
| Model | Unit | VM360A |
| Spindle taper | ISO50 | |
| Distance from spindle nose to table | mm | 60-540 |
| Spindle speed | r.p.m | (12steps)60-1700 |
| Table size | mm | 1250×360 |
| Table travel(longitudinal/cross/vertical) | mm | 600×320×450 |
| X,Y axes feed speed | mm/min | 22-555(8steps) |
| X,Y axes rapid feed speed | mm/min | 1080 |
| Z axis rapid elevate speed | mm/min | 590 |
| Max.weight of workpiece | kg | 400 |
| T slot(No./width/distance) | mm | 3/18/80 |
| Main motor | kw | 4 |
| X,Y axes auto-feed drive motor | w | 750 |
| Z axis motor power | w | 1100 |
| Coolant pump power | w | 90 |
| Overall dimension(L×W×H) | mm | 1900×1850×1800 |
| N.W./G.W. | kg | 2100/2200 |
Features:
1. Hardened and ground table surface;
2. Automatic feeds on X,Y axes, motorized rise and fall of table on Z axes;
3. Rectangular column guide way with high stability.
Why Choose Us
| Why choose TIMEWAY MACHINE? |
1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 70 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving.
