1120x260mm Table Size Universal Milling Drilling Machine for Machinery Repair Shops
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE ISO |
| Model Number: | MDW600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10,000.00/sets 1-2 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Drilling & Milling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 50 | Range Of Spindle Speed(r.p.m): | 115 - 1750 R.p.m |
| CNC Or Not: | Normal | Drilling Speed: | Normal Speed |
| Voltage: | 220V/380V | Dimension(L*W*H): | 1655x1450x2150mm |
| Weight (KG): | 1500 KG | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Showroom Location: | Turkey, Indonesia, Thailand, Chile, Romania, South Africa, Australia |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Other |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Color: | Customizable |
| Table Size: | 1120x260mm | Table Travel: | 600/270mm |
| Vertical Spindle Speed: | 115-1750rpm | Horizontal Spindle Speed: | 38-1310rpm |
| Spindle Taper: | ISO40 | Weight: | 1500kg |
| Power: | 0.85/1.5kw (V),2.2kw (H) | Port: | China Port |
Product Description

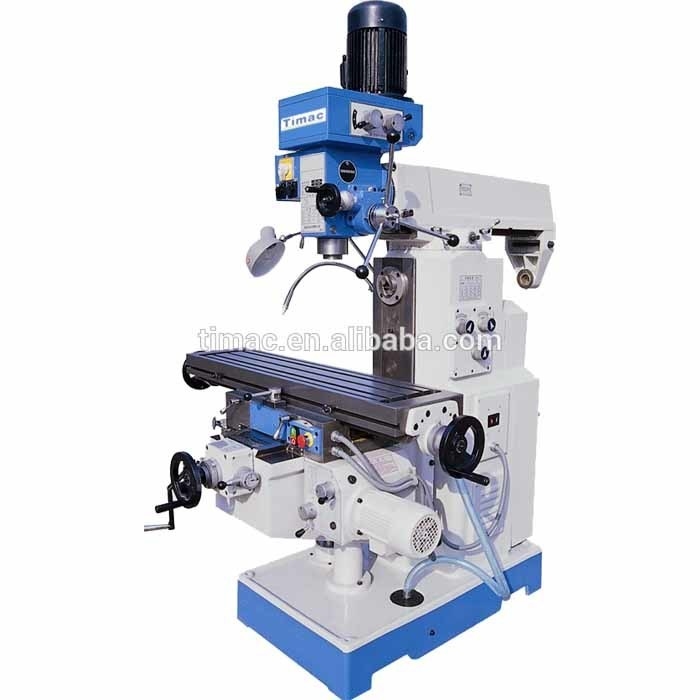

Universal Milling Drilling Machine
MDW600
Features:
» Hardened and ground table surface.
» Automatic feeds on X/Y-axis, motorized rise and fall of table on the Z-axis.
» Headstock swivels ±90°, ram swivels ±180°.
» Vertical and horizontal spindles with 8-steps speed by gear changing.
» Table with swiveling ±45°is chosen, increase machining range.
» Deep scale and micro-feed hand-wheel are standard equipment.
» Coolant system and chip collection tray are included in standard equipment, but 3-axis DRO. is optional accessory.
Technical parameter:
| Model | Unit | MDW600 |
| Table size | mm | 1120×260 |
| Table travel | mm | 600/270 |
| Spindle taper | ISO40 | |
| Spindle speed range | r.p.m | 115-1750(V),38-1310(H) |
| Max.drilling capacity | mm | 50 |
| Automatical drilling dia. | mm | - |
| Max.end milling dia. | mm | 100 |
| Max.vertical milling dia. | mm | 25 |
| Max.tapping dia. | M16 | |
| Distance from spindle nose to table | mm | 100-460 |
| Spindle travel | mm | 120 |
| Main motor | kw | 0.85/1.5(V),2.2(H) |
| Overall dimension(L×W×H) | mm | 1655×1450×2150 |
| Net weight | kg | 1500 |
Standard:
Coolant system, Oil collecting plate, Work lamp, Elevating rotary handle, Drill chuck, Mill collets, Draw bar, Machine vise, Wrench, Spanner, Middle sleeve, Operation manual(English edition).
Optional:
3 axes DRO, 58pcs clamping kits,Rotary table, Dividing head, Variable frequency motor, Universal milling head.
