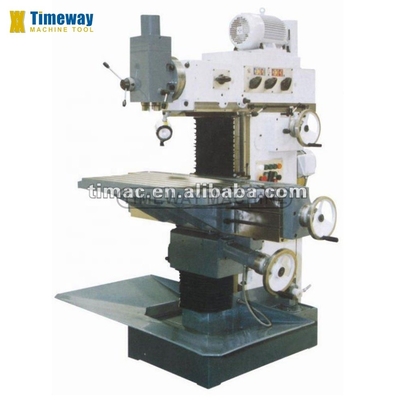

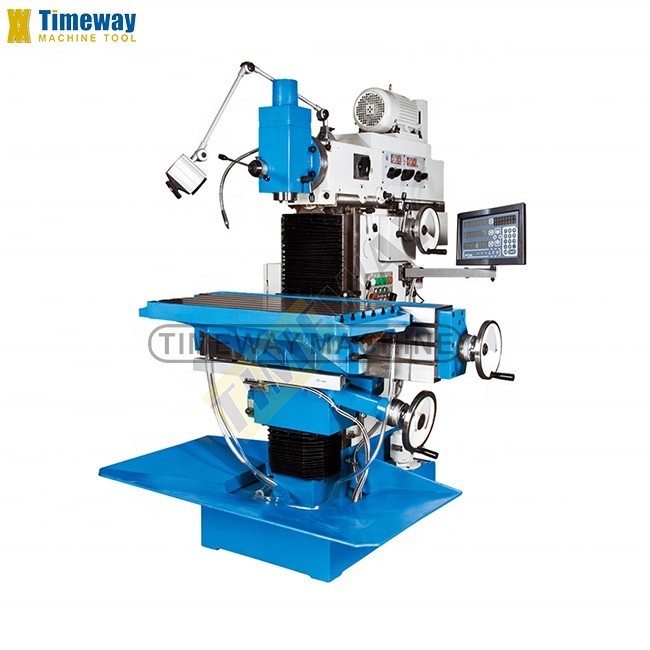

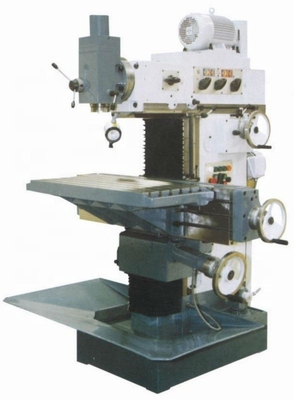

ISO40 Spindle Taper Universal Tool Milling Machine UTM400A for High Precision Milling
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | UTM400A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10,000.00/sets 1-2 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 500 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 400 | Table Travel (Z) (mm): | 400 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 1000 - 3800 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 3 |
| Weight (KG): | 1400 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Machine Tool: | Milling Machine | After-sales Service Provided: | Online Support |
| Table Travel(X): | 500 Mm | Table Travel(Y): | 400 Mm |
| Table Travel(Z): | 400 Mm | Speed Range: | 40-2000 R/min |
| Warranty Period: | 1 Year | Dimension: | 1390X1430X1820mm |
| Weight: | 1400 Kg | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Showroom Location: | Colombia, Algeria, South Africa, Kazakhstan, Uzbekistan, Tajikistan, Philippines, Indonesia, Russia, Thailand | Core Components: | Bearing, Engine, Other |
| Port: | China Port. | ||
Product Description
Products Description
Specification | Unit | UTM400A |
Work space dimensions | mm | 400×800 |
Vertical table dimensions | mm | 250×1060 |
T-slots,work table | mm | 6×14×63 |
T-slots,vertical table | mm | 3×14×63 |
Longitudinal travels(X) | mm | 500 |
Transverse travel(Y) | mm | 400 |
Vertical travel(Z) | mm | 400 |
Horizontal spindle(Min.) | mm | 95±63 |
Horizontal spindle(Max.) | mm | 475±63 |
Vertical spindle(Min.) | mm | 55±63 |
Vertical spindle(Max.) | mm | 445±63 |
Max.throat | mm | 540 |
Speed range | r/min | 40~2000 |
Spindle mount | ISO40,Taper7:24 | |
X,Y,Z axis feeds | mm/min | 10~380 |
Rapid feed | mm/min | 1200 |
Quill stroke | mm | 80 |
Main motor rating | kw | 3 |
Feed motor rating | kw | 5 |
Dimensions(L×W×H) | mm | 1390×1430×1820 |
Weight | kg | 1400 |
Complete tool Cutter arbor(dia. φ 16,22,27,32mm) Reducing sleeves(Morse1,2,3) Spring collect(da. φ 2,3,4,5,6,8,10,12mm) | Dividing head,machine vice Universal angular table Rotary table Boring head 3-axis digital position indicator |
